Ignition Key, Lights-on & Seatbelt Warning Less Voice Alarm
Ignition Key, Lights-on & Seatbelt Warning Less Voice Alarm

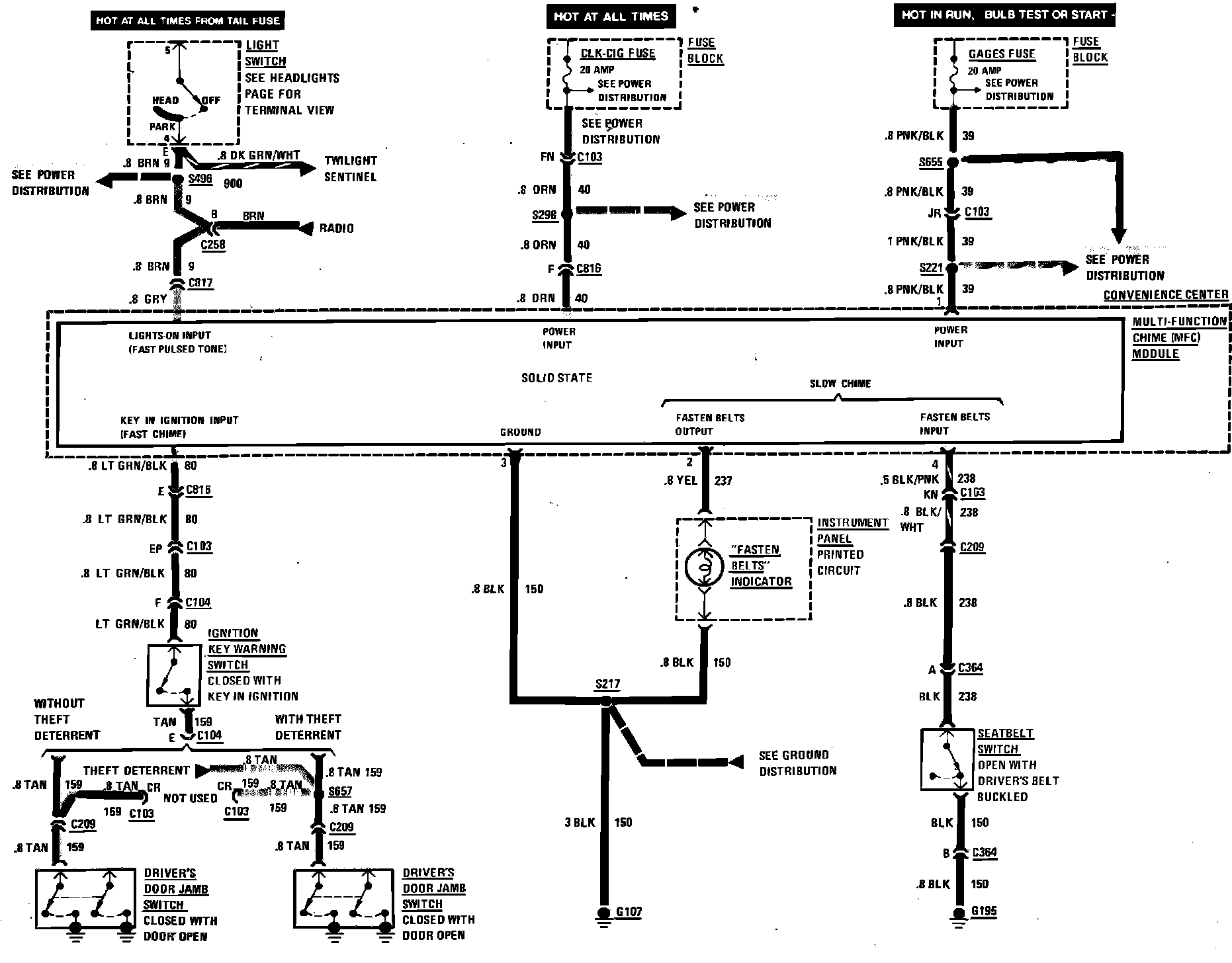

Ignition Key, Lights-On & Seatbelt Warning Wiring Circuit, Less Voice Alarm:
