Electronic Instrument Cluster

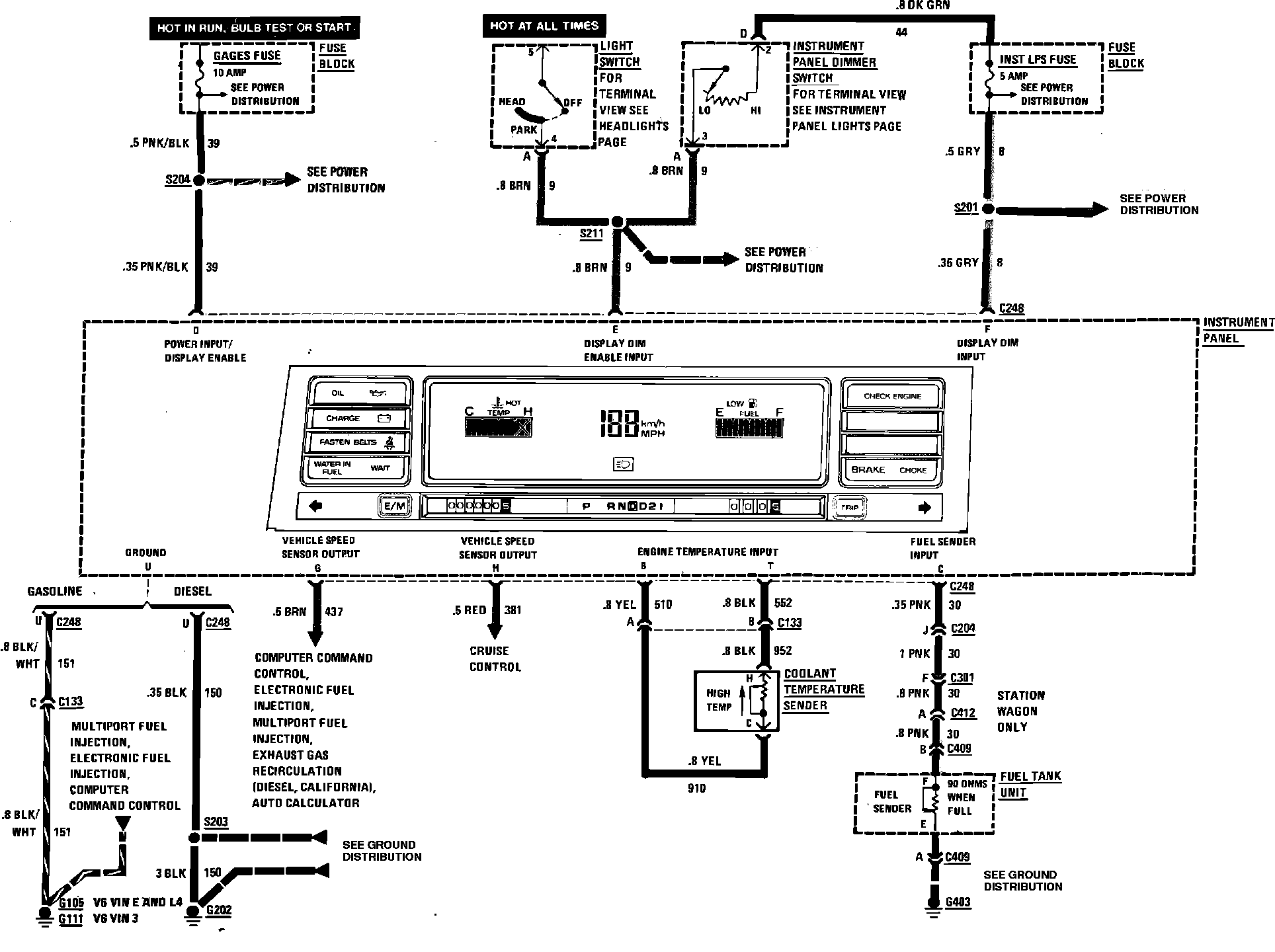

Electronic Instrument Cluster Wiring Circuit:

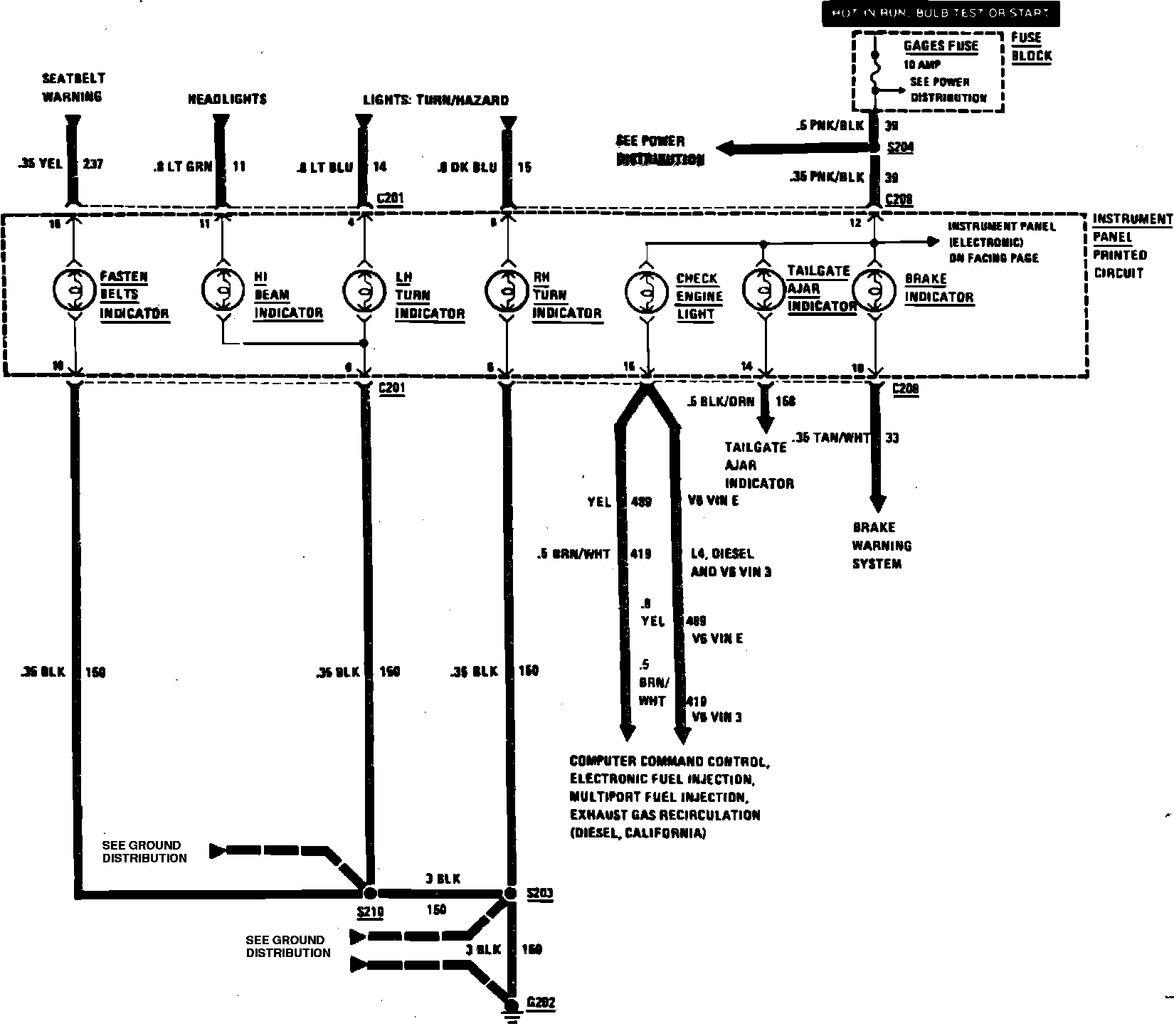

Electronic Instrument Cluster Wiring Circuit:

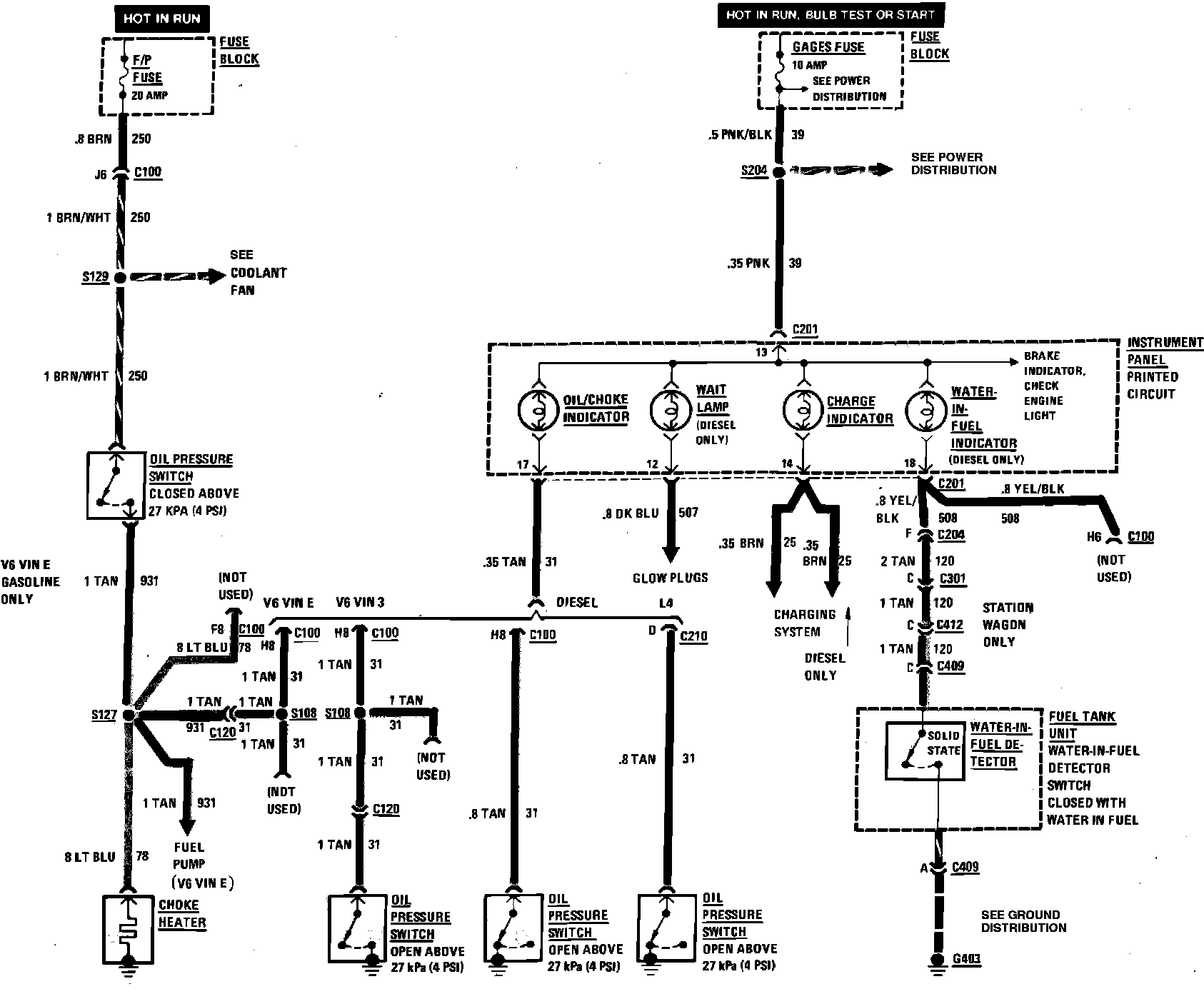

Electronic Instrument Cluster Wiring Circuit:
