Electronic Spark Control (ESC)

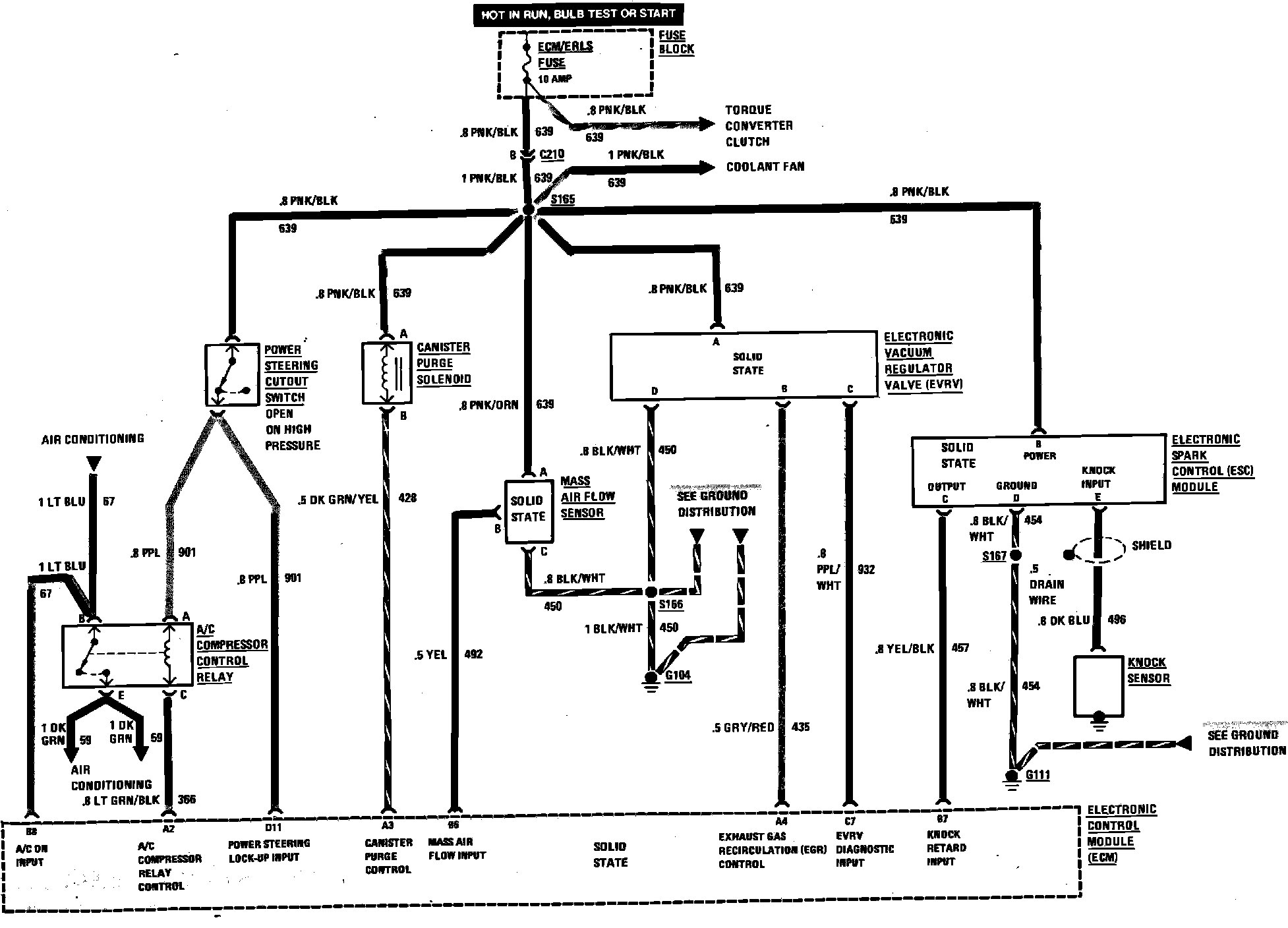

Multiport Fuel Injection (A/C Compressor Controls, Emissions & Spark Controls) Wiring Circuit. Early Production:
