Engine Data Sensors, Fuel Injectors & Torque Converter Clutch
Engine Data Sensors, Fuel Injectors & Torque Converter Clutch

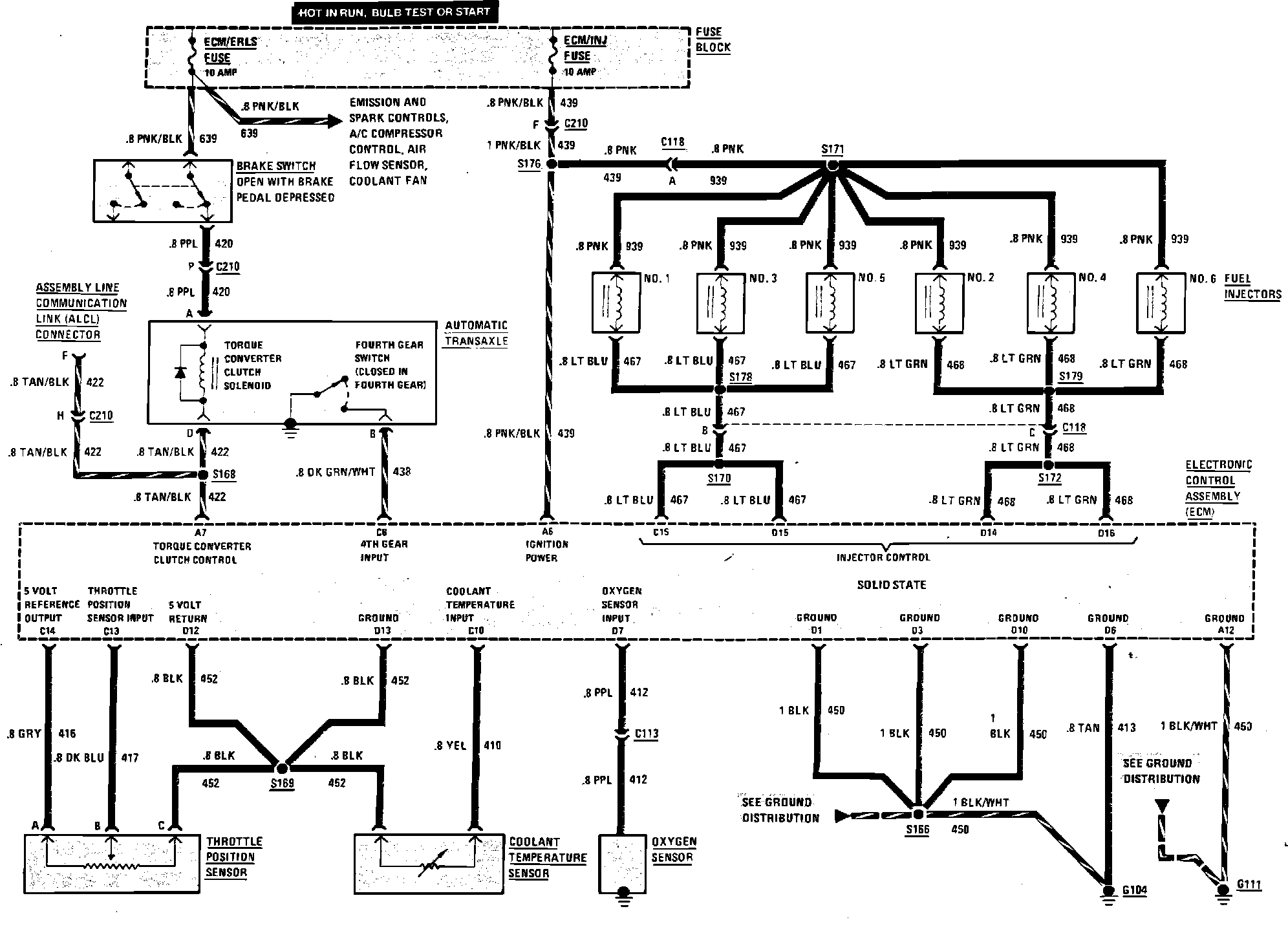

Multiport Fuel Injection (Engine Data Sensors, Fuel Injectors & Torque Converter Clutch) Wiring Circuit Later Production:
