Figure 19 Rwd Models W/V6-262 (4.3L) Diesel, Calif. (VIN V)
Figure 19 Rwd Models W/V6-262 (4.3L) Diesel, Calif. (VIN V)

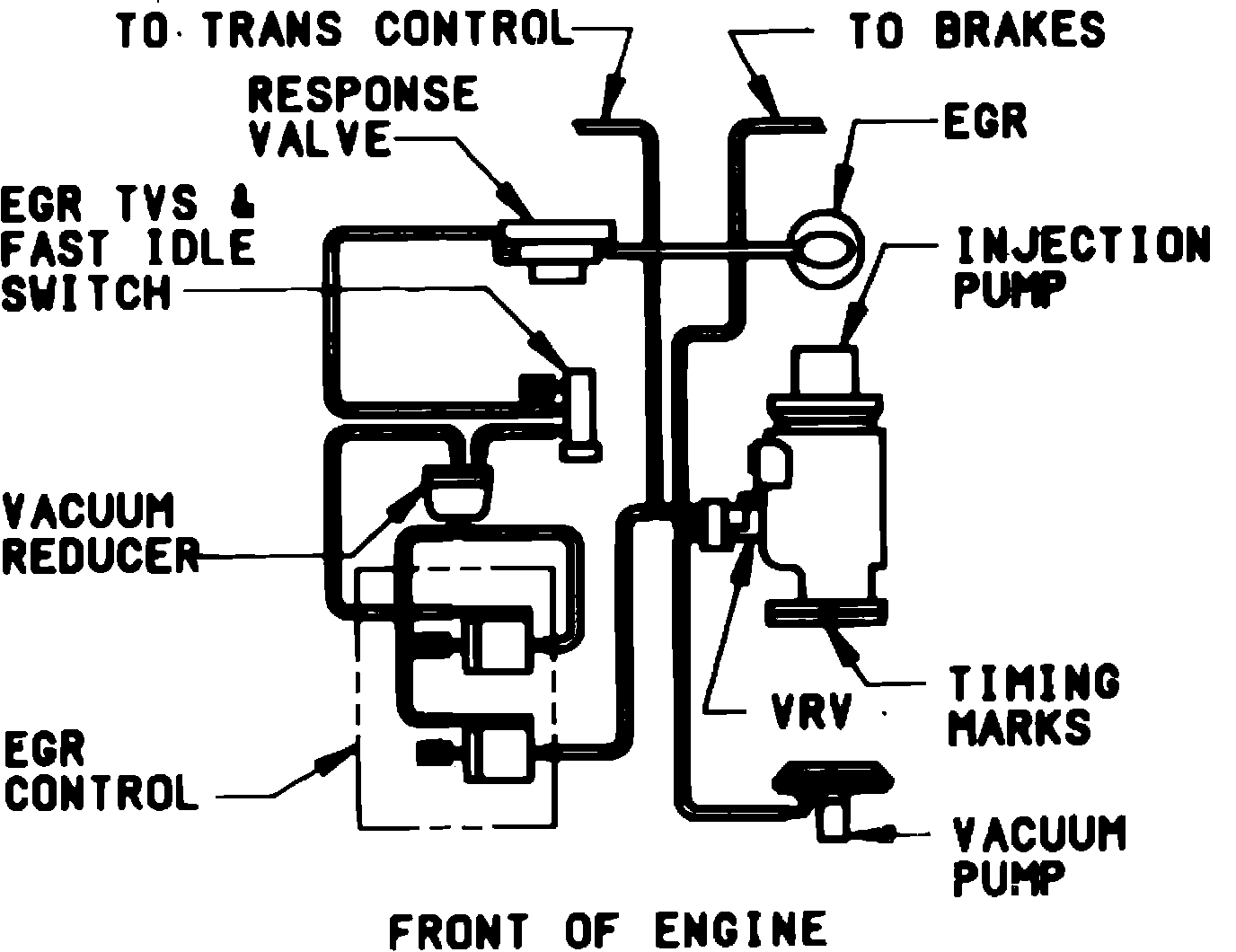

Fig. 19 Vacuum Hose Routing. 1984 Rear Wheel Drive Models W/V6-262 (4.3L) Diesel, Calif. (VIN V):
