System Specifications

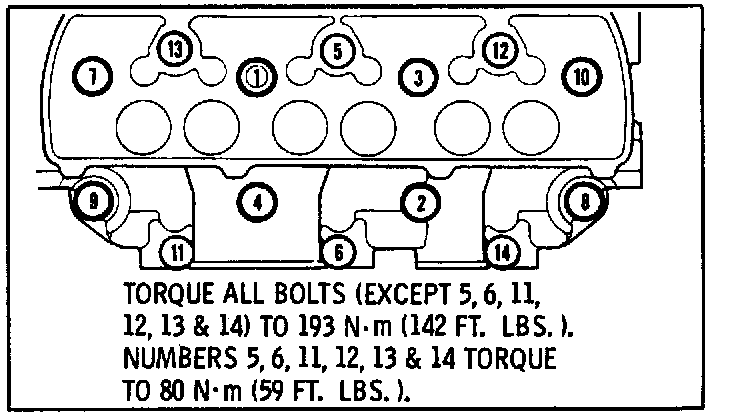

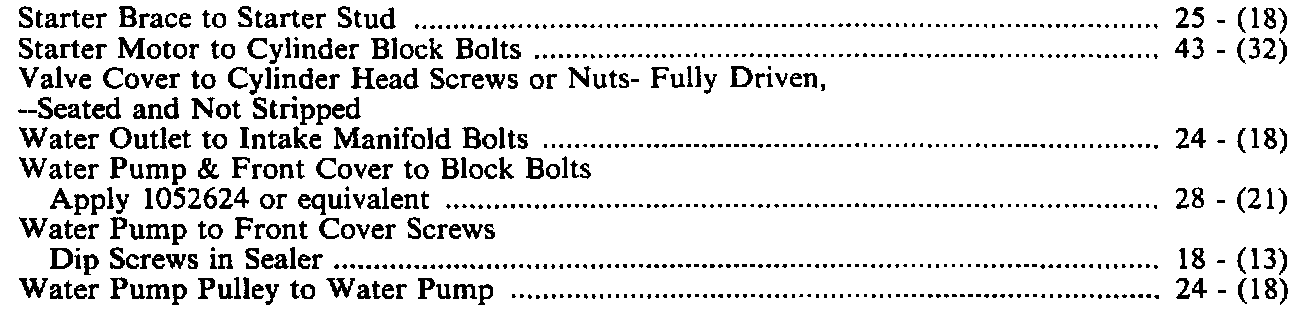

Torque Specifications:

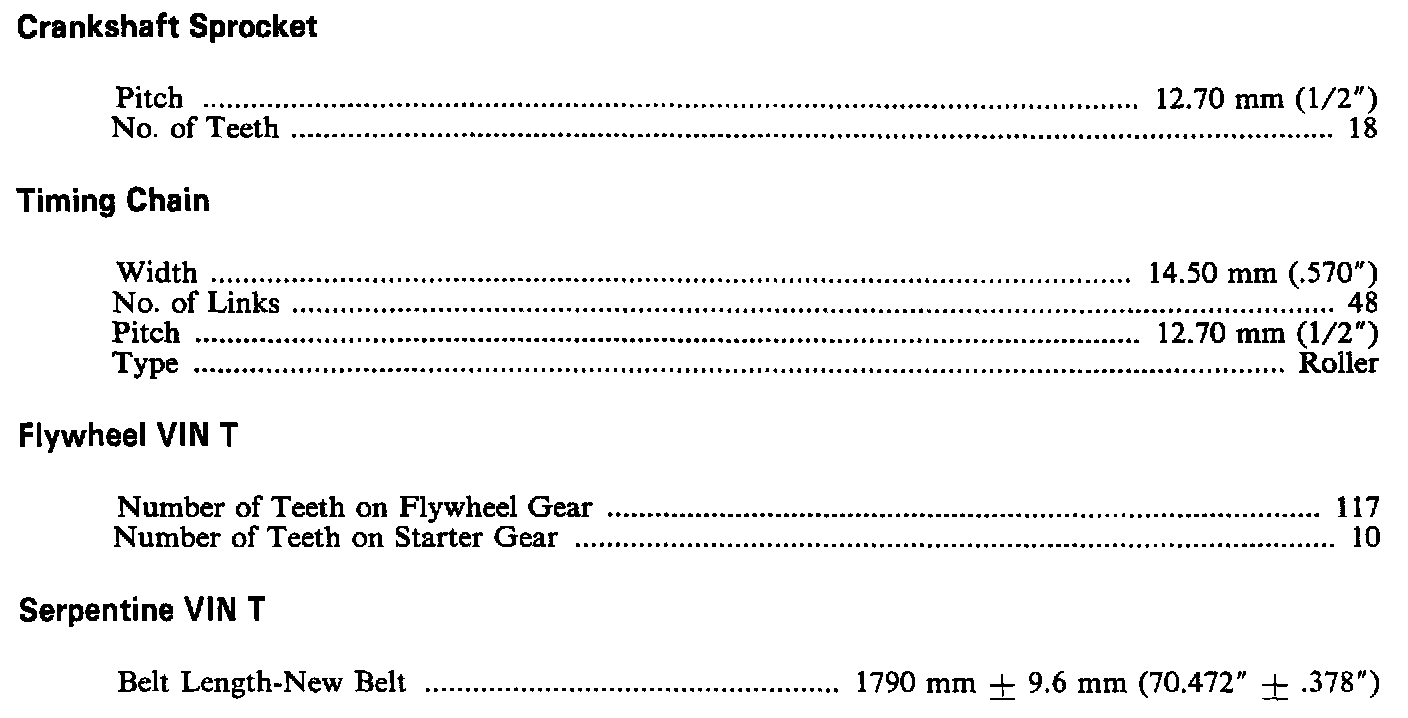

Engine Specifications:




Engine Specifications:





Engine Specifications:

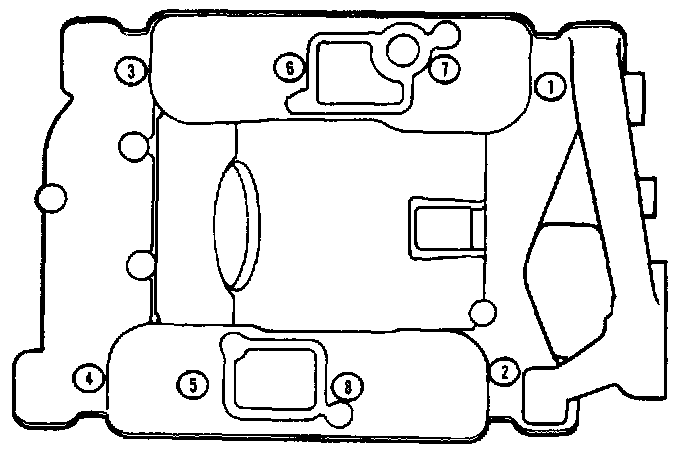

Intake Manifold Torque Sequence:
