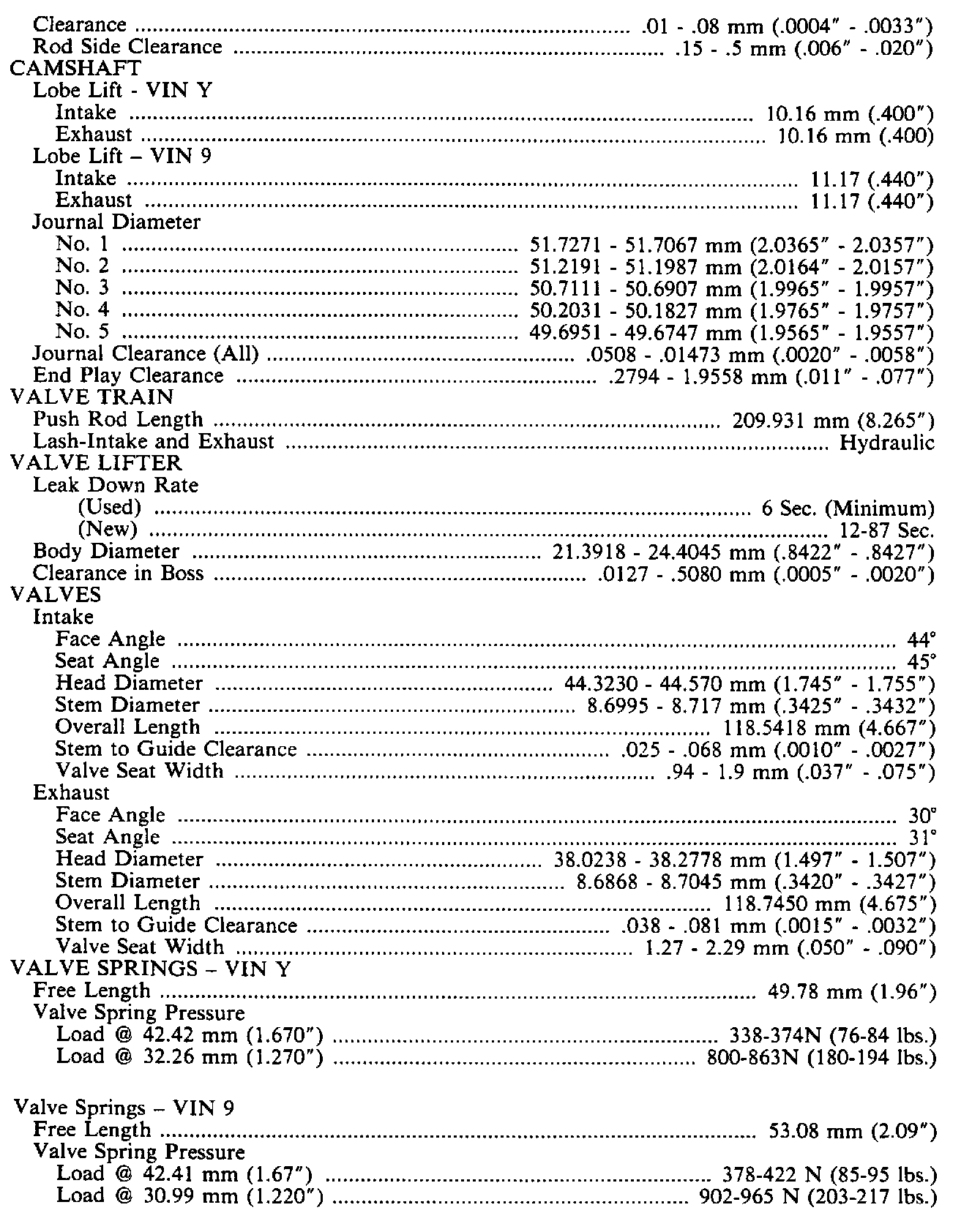

System Specifications












Intake Manifold Torque Sequence:





Cylinder Head Torque Sequence:
