Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
>>

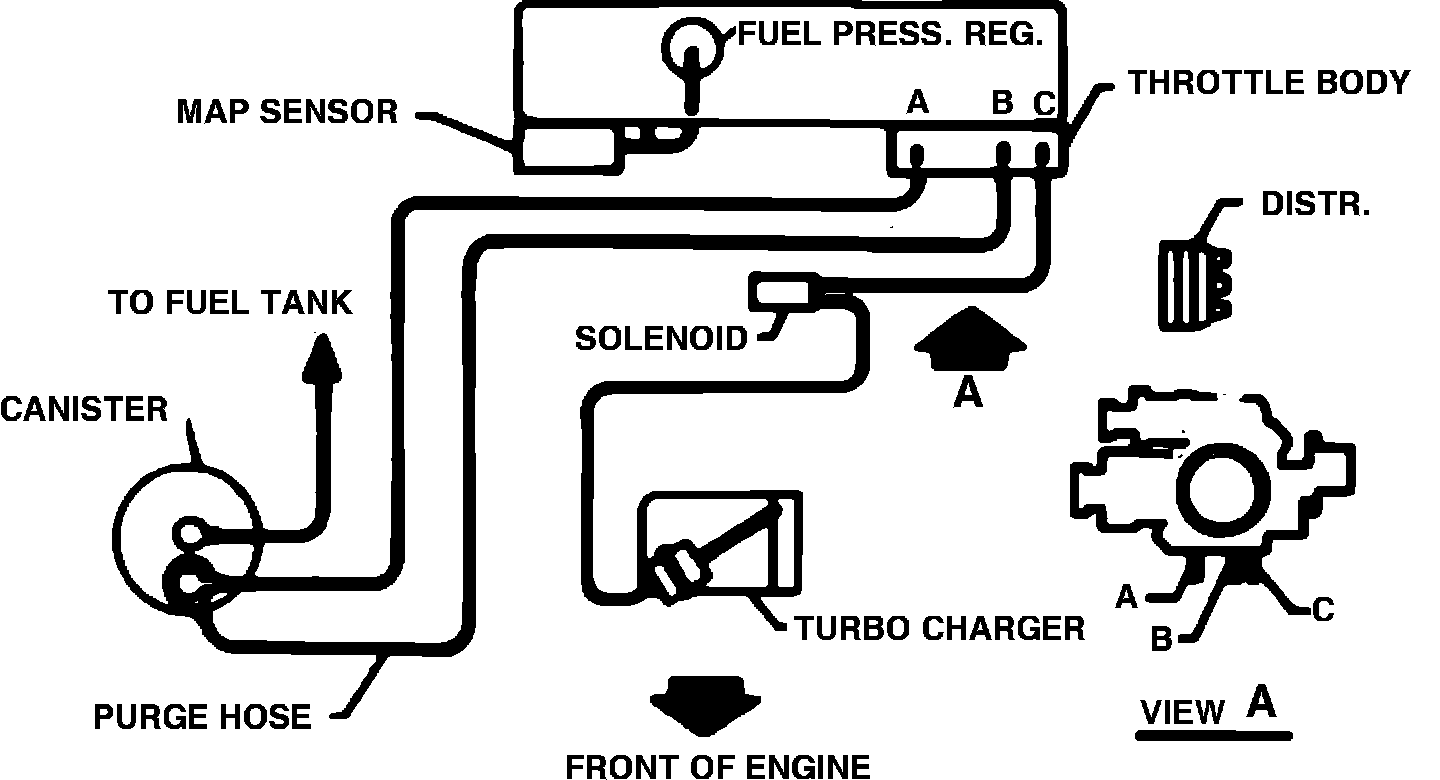

Figure 7 4-112 (1.8L) PFI, Fed. (VIN J)
Figure 7 4-112 (1.8L) PFI, Fed. (VIN J)
Fig. 7 Vacuum Hose Routing. 1984 4-112 (1.8L) PFI, Fed. (Vin J):
