System Specifications

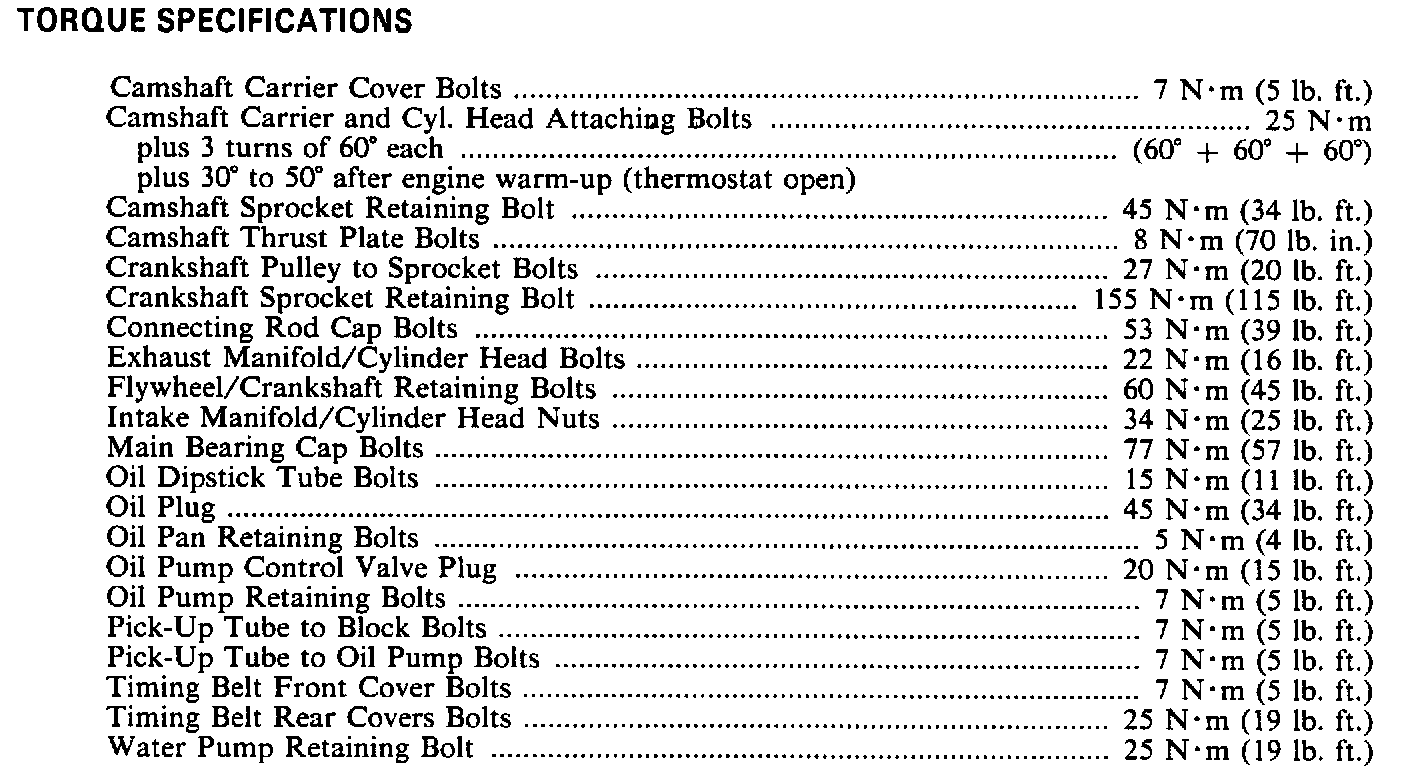

Torque Specifications:





Engine Specifications:

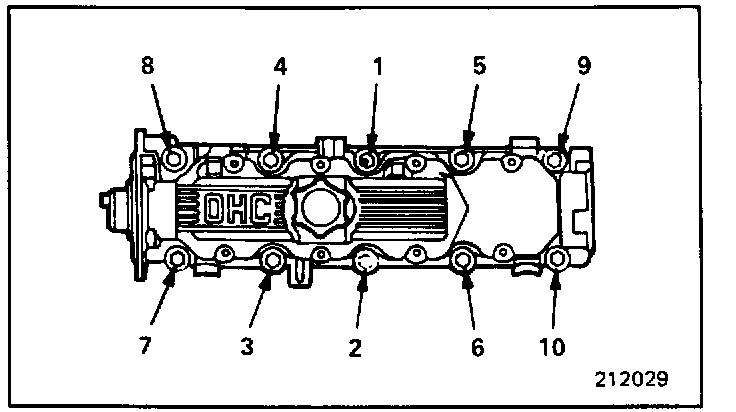

Cylinder Head Torque Sequence:

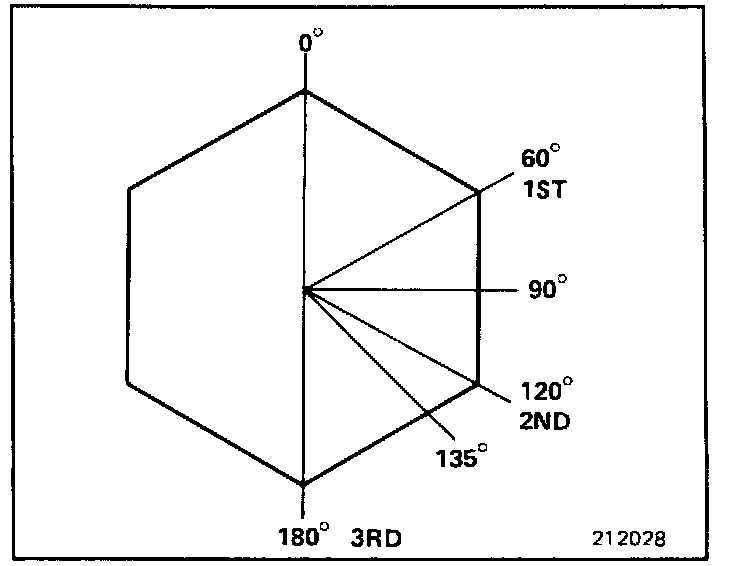

Camshaft Carrier And Cylinder Head Head Bolt Torque Degree Chart:
