Oldsmobile
>>
1984
>>
Full Size OLDS FWD V6-181 3.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
>>
Early Production
Early Production

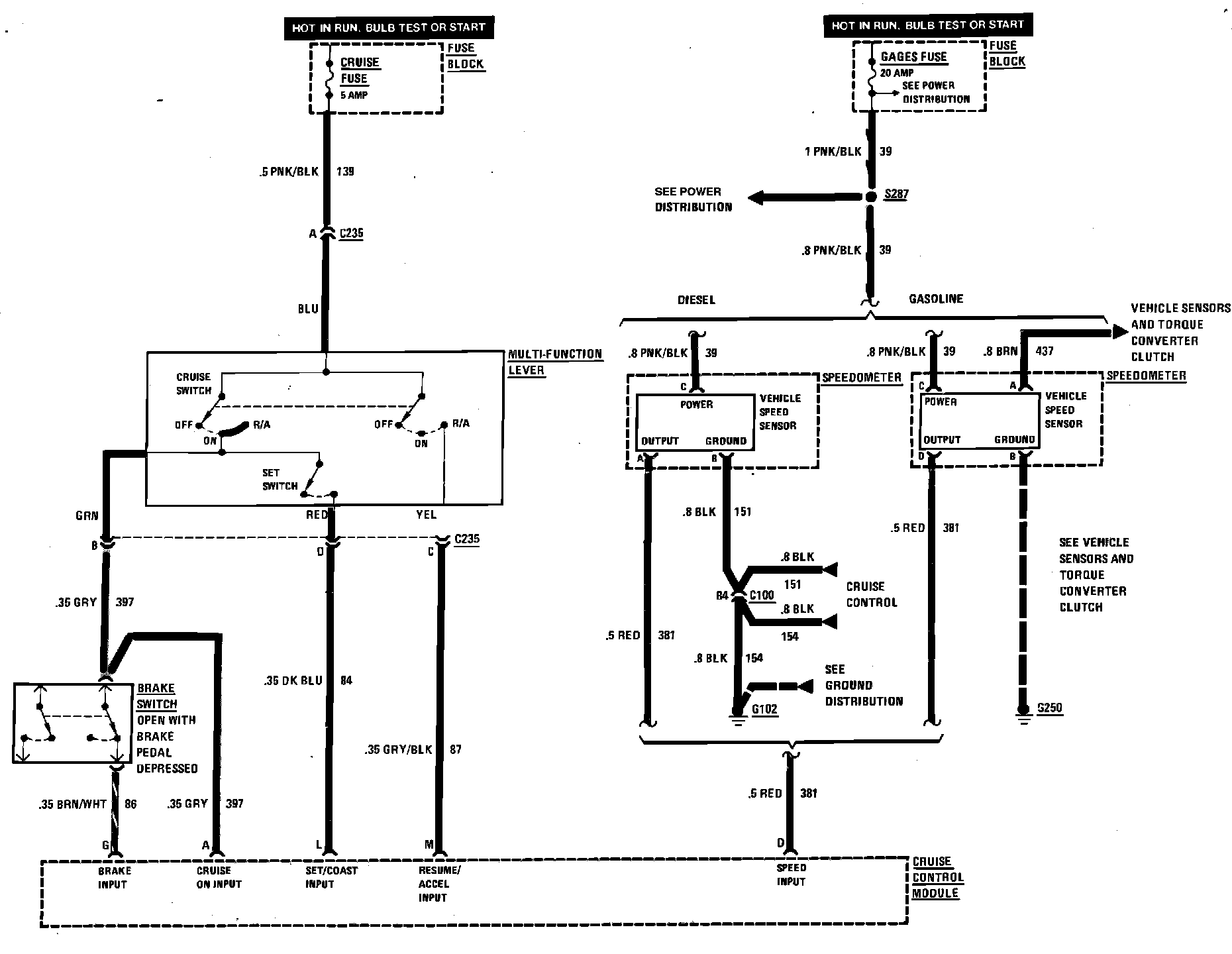

Cruise Control Wiring Circuit Early Production:
