Home >> Oldsmobile >> 1984 >> Full Size OLDS FWD V6-181 3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Audible Warning Device

Audible Warning Device

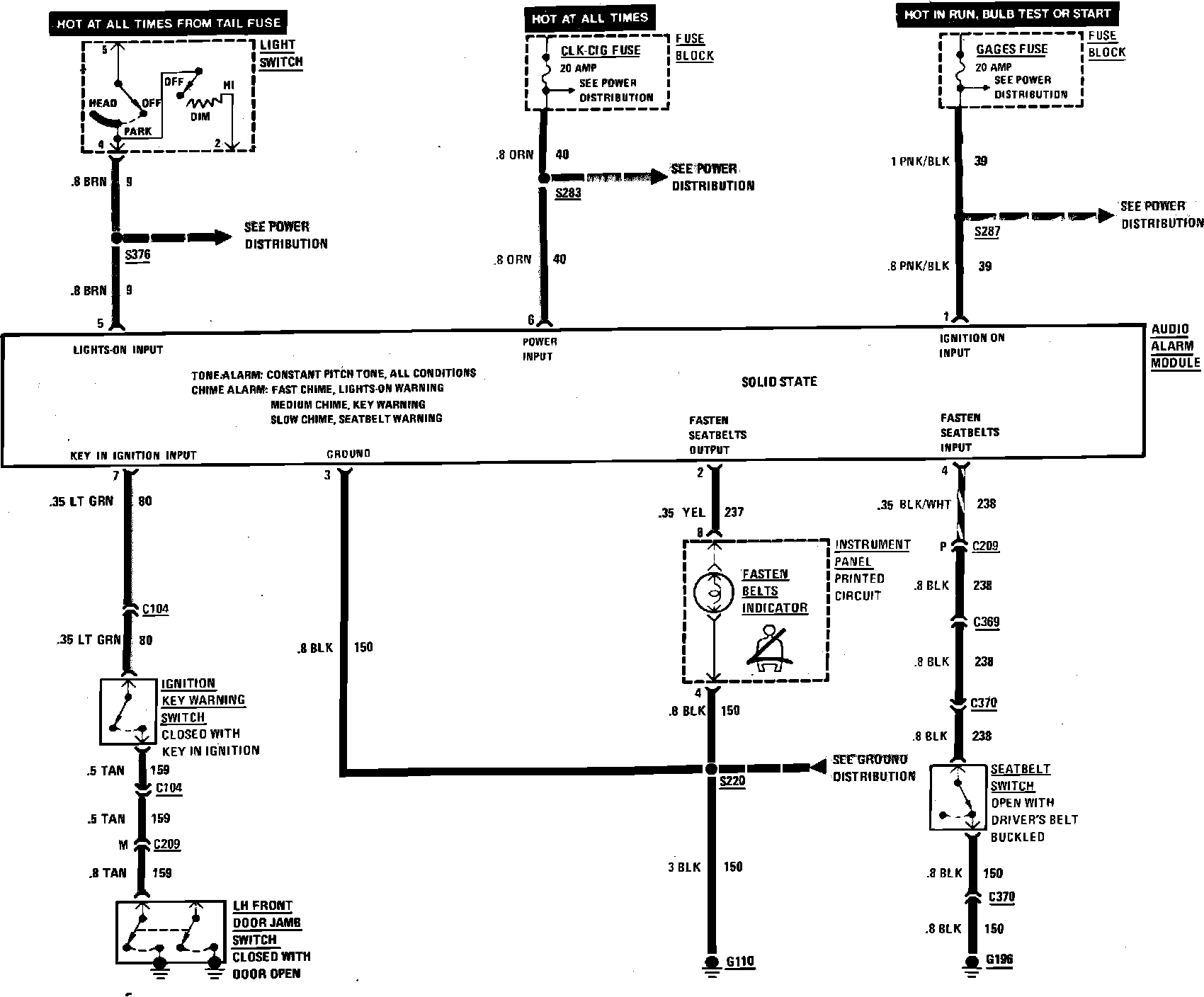

Ignition Key, Lights-On & Seatbelt Warning Wiring Circuit Less Reminder Package:
