Except Station Wagon W/Amber Turn Signal Lamps

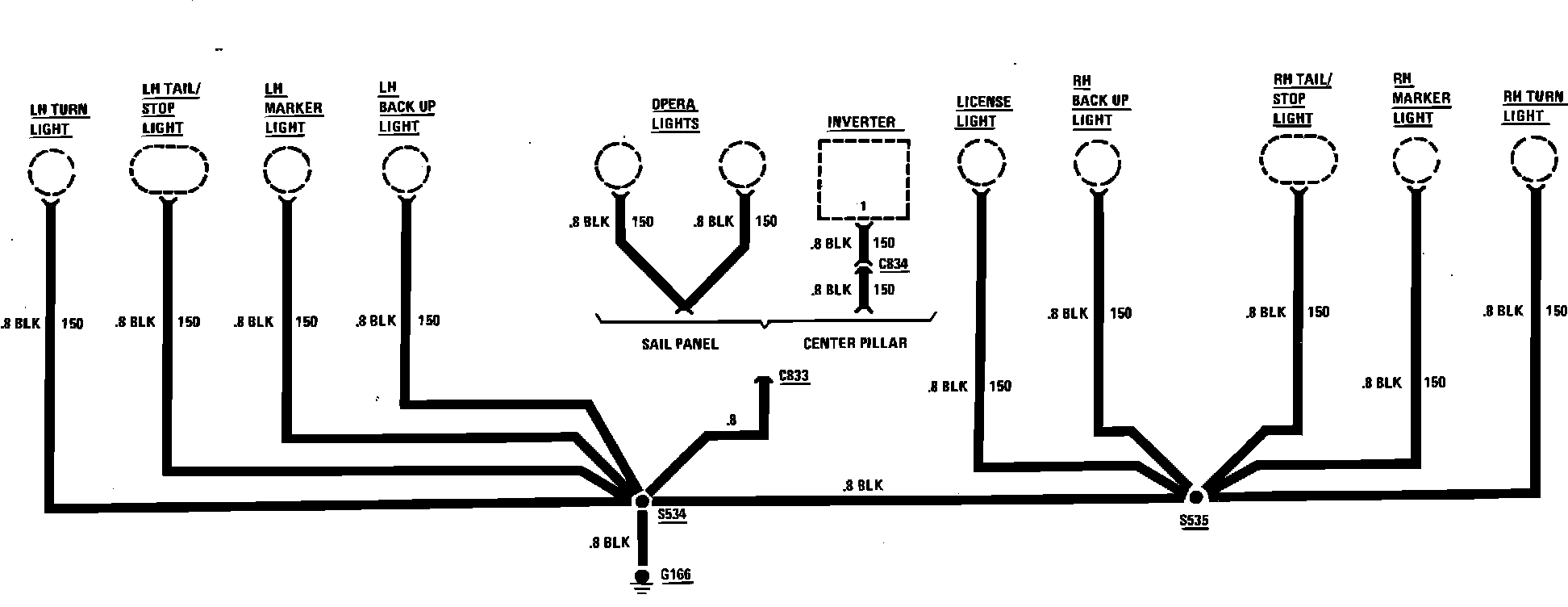

Ground Distribution (Rear Lighting Circuit) W/Amber Turn Signal Lamps:
