Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
>>
Figure 24 V8-307 (5.0L) 4 Bbl., Fed. Exc. Hurst Olds, (Vin 9)
Figure 24 V8-307 (5.0L) 4 Bbl., Fed. Exc. Hurst Olds, (Vin 9)

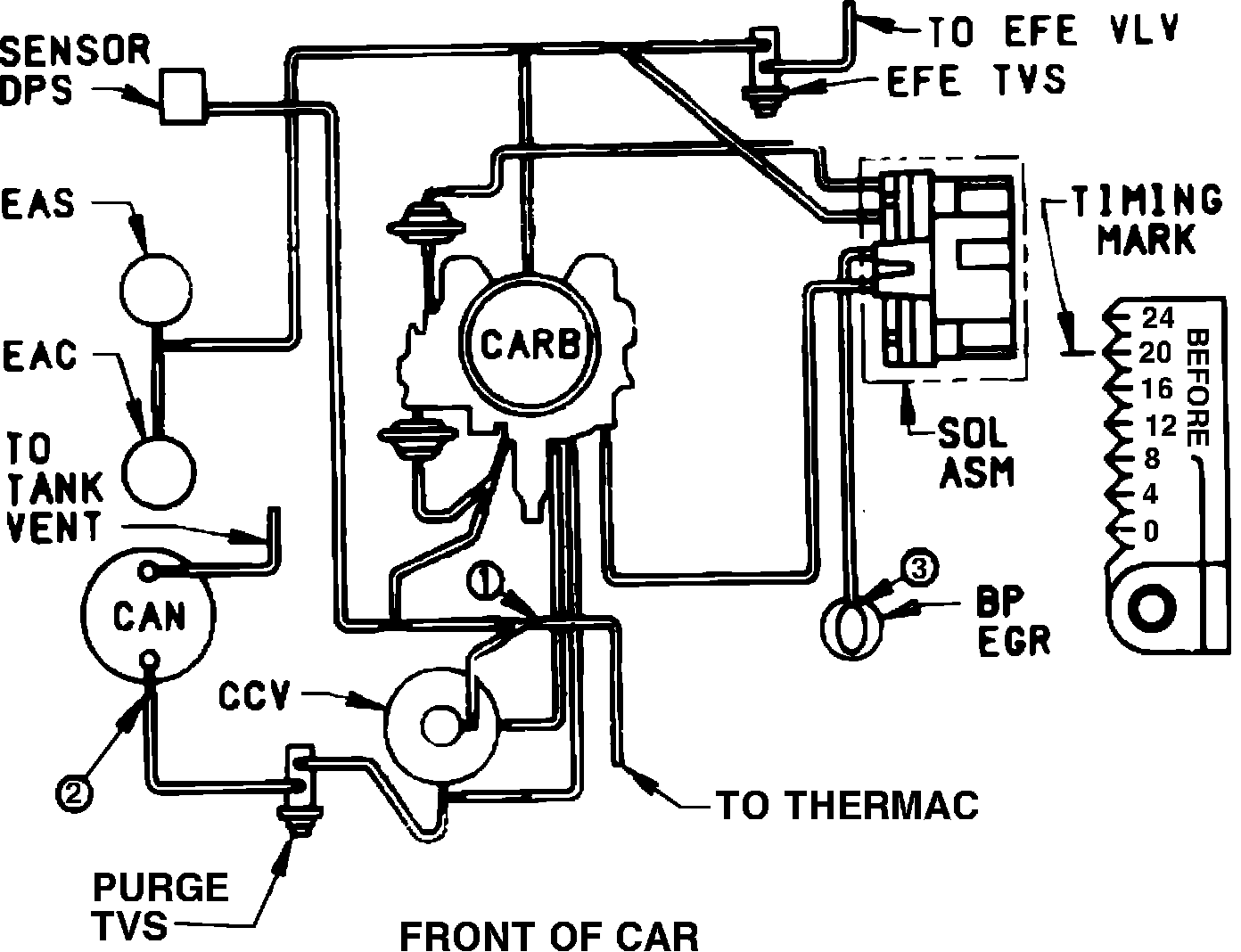

Fig. 24 Vacuum Hose Routing. 1984 V8-307 (5.0L) 4 Bbl., Federal Exc. Hurst Olds, (VIN 9):
