Oldsmobile
>>
1984
>>
Omega V6-173 2.8L VIN X 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Trunk Lamp
Trunk Lamp

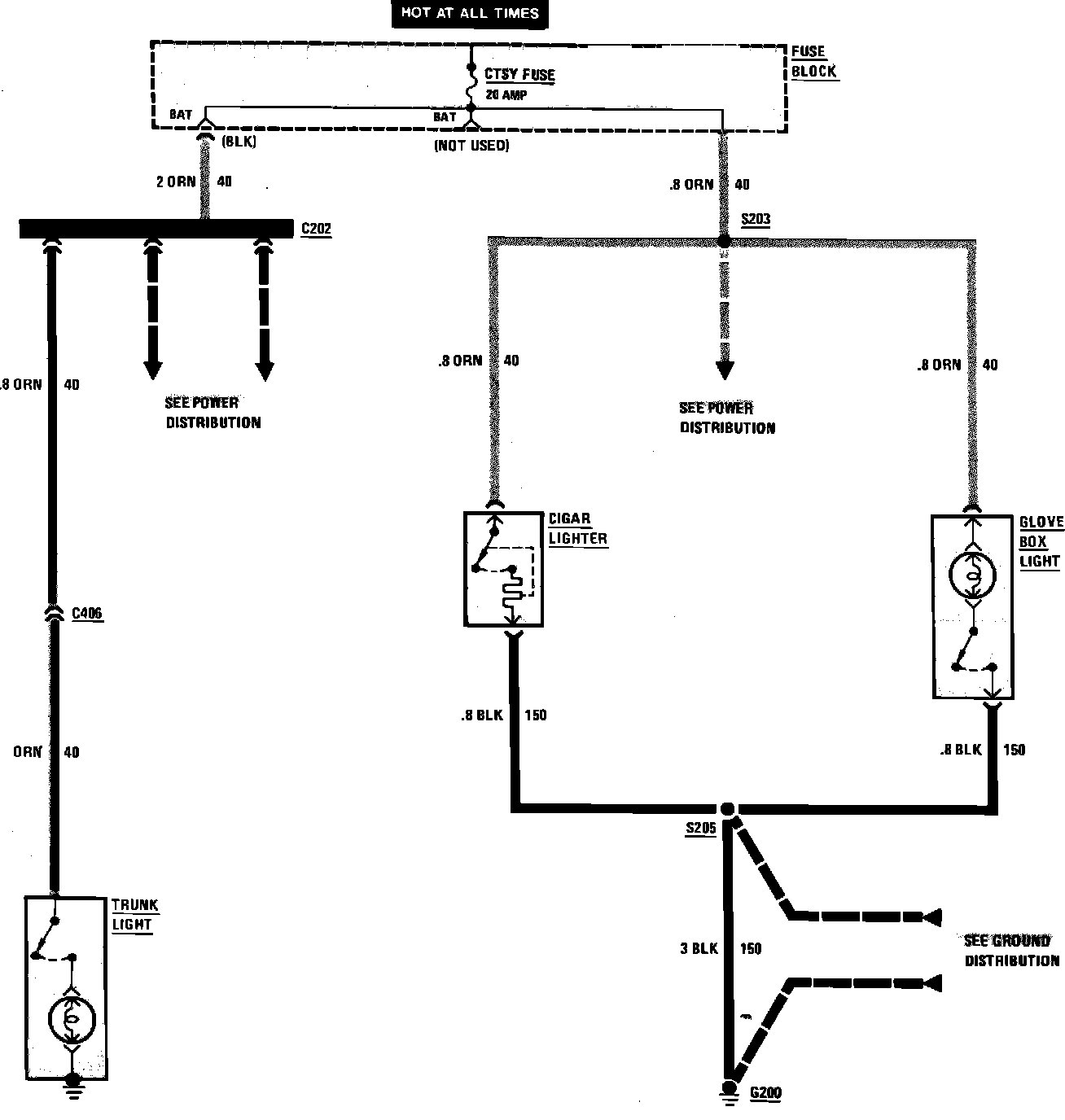

Cigar Lighter, Glove Box & Trunk Lamp Wiring Circuit:
