With Door Mounted Amplified Speakers

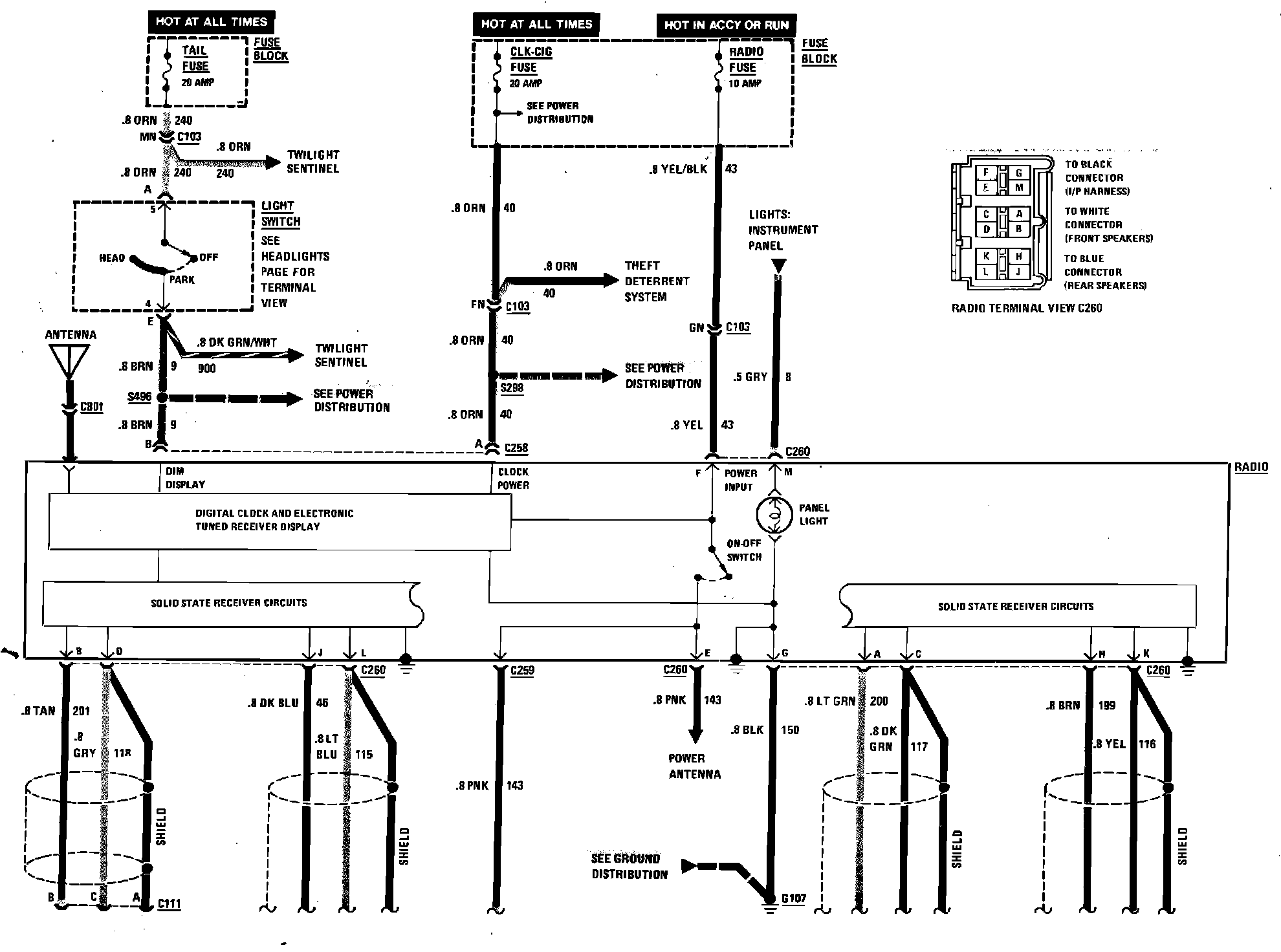

Radio Wiring Circuit (W/Door Mounted Amplified Speakers):

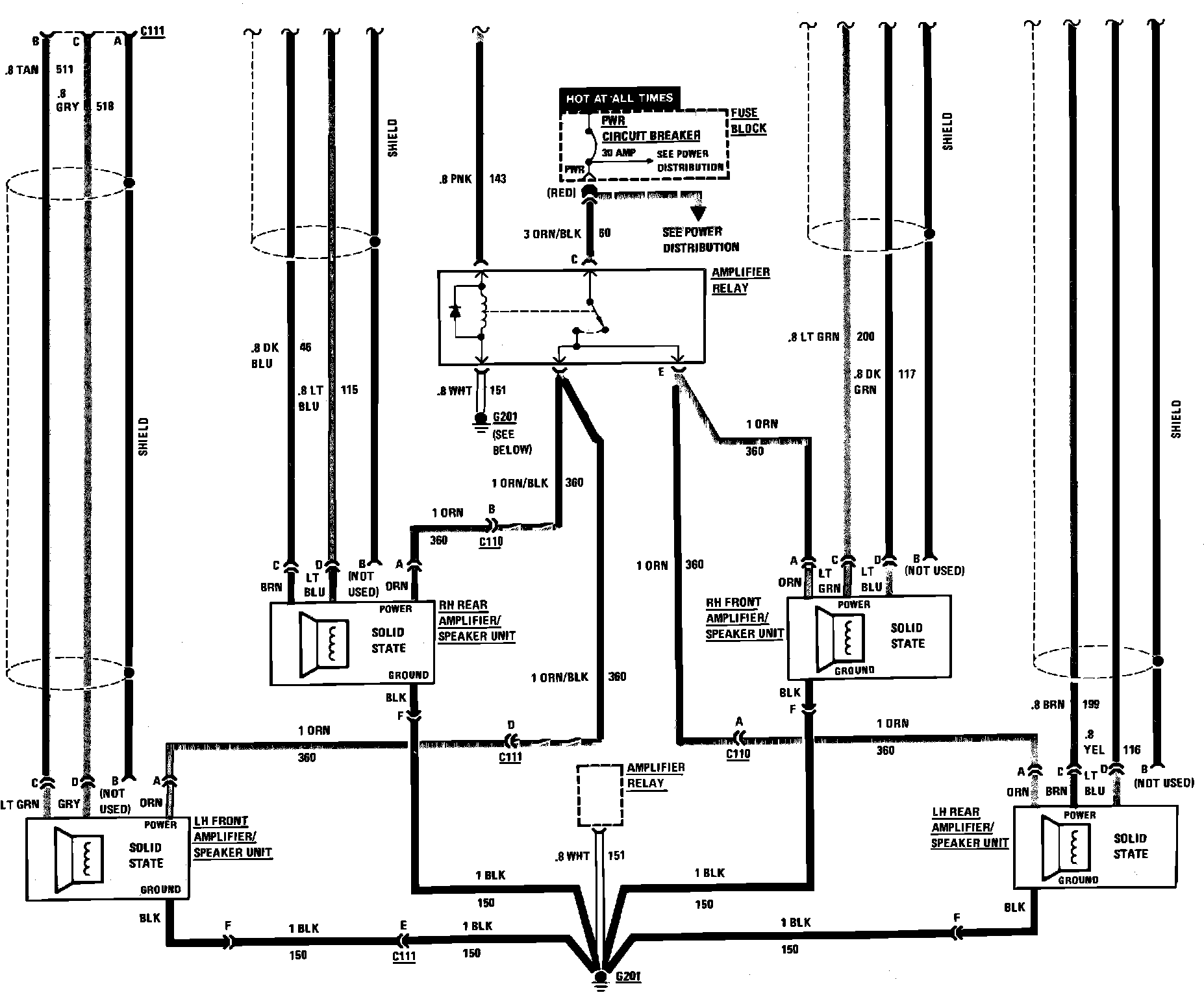

Radio Wiring Circuit (W/Door Mounted Amplified Speakers):
