Home >> Oldsmobile >> 1985 >> Cutlass Ciera Cruiser L4-151 2.5L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications

System Specifications

Torque Specifications:

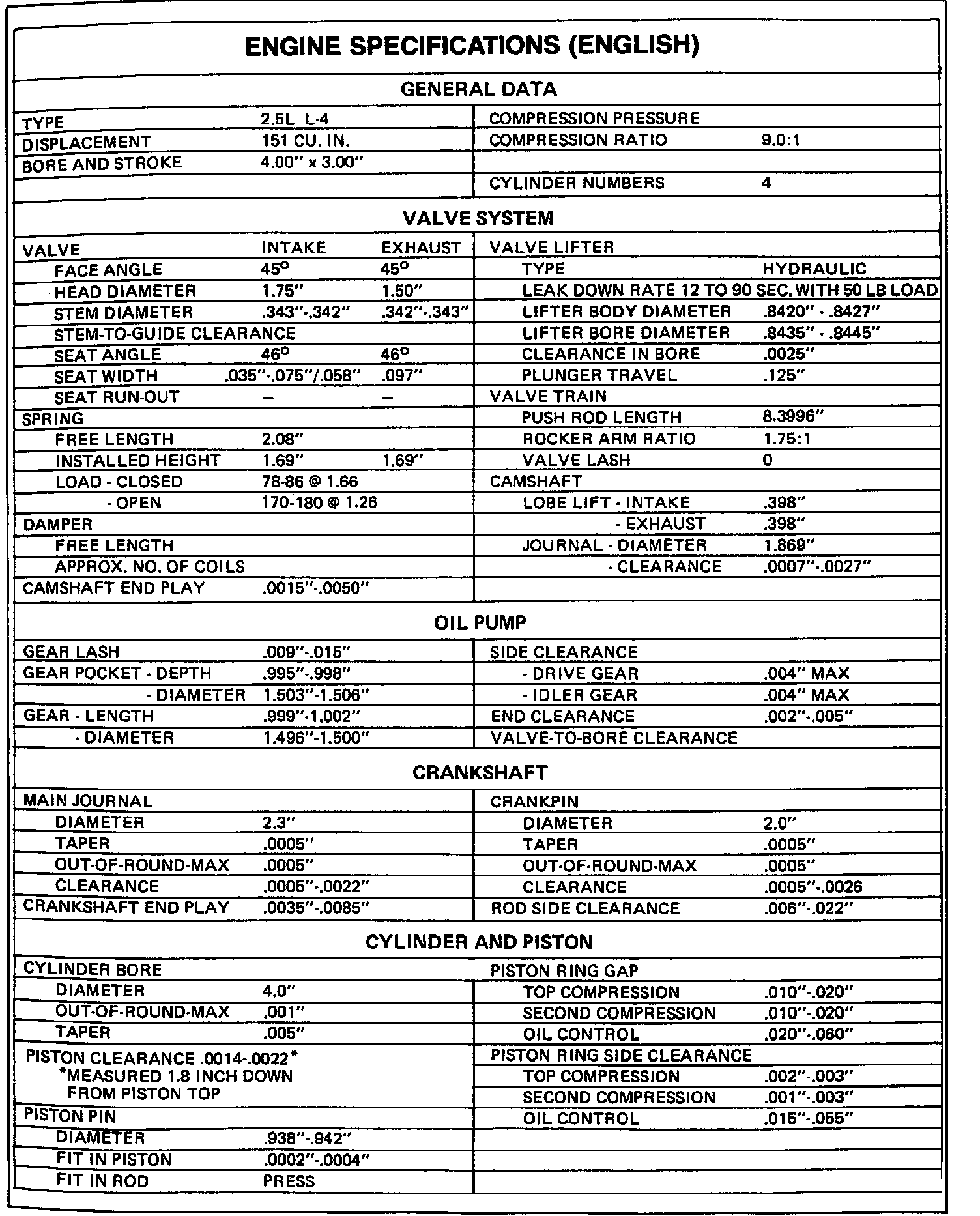

Engine Specifications:

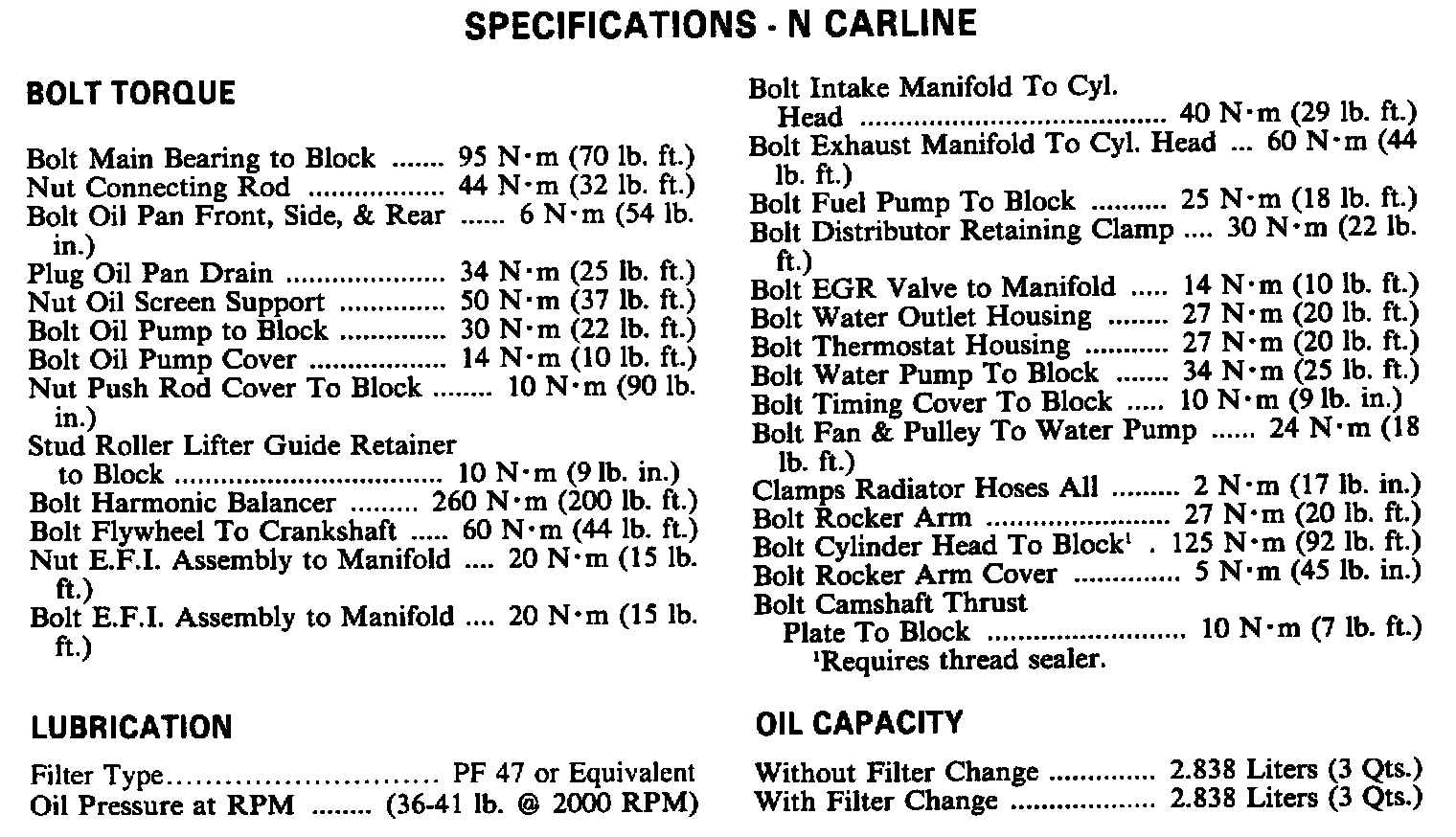

Torque Specifications N Carline:





Engine Specifications N Carline:

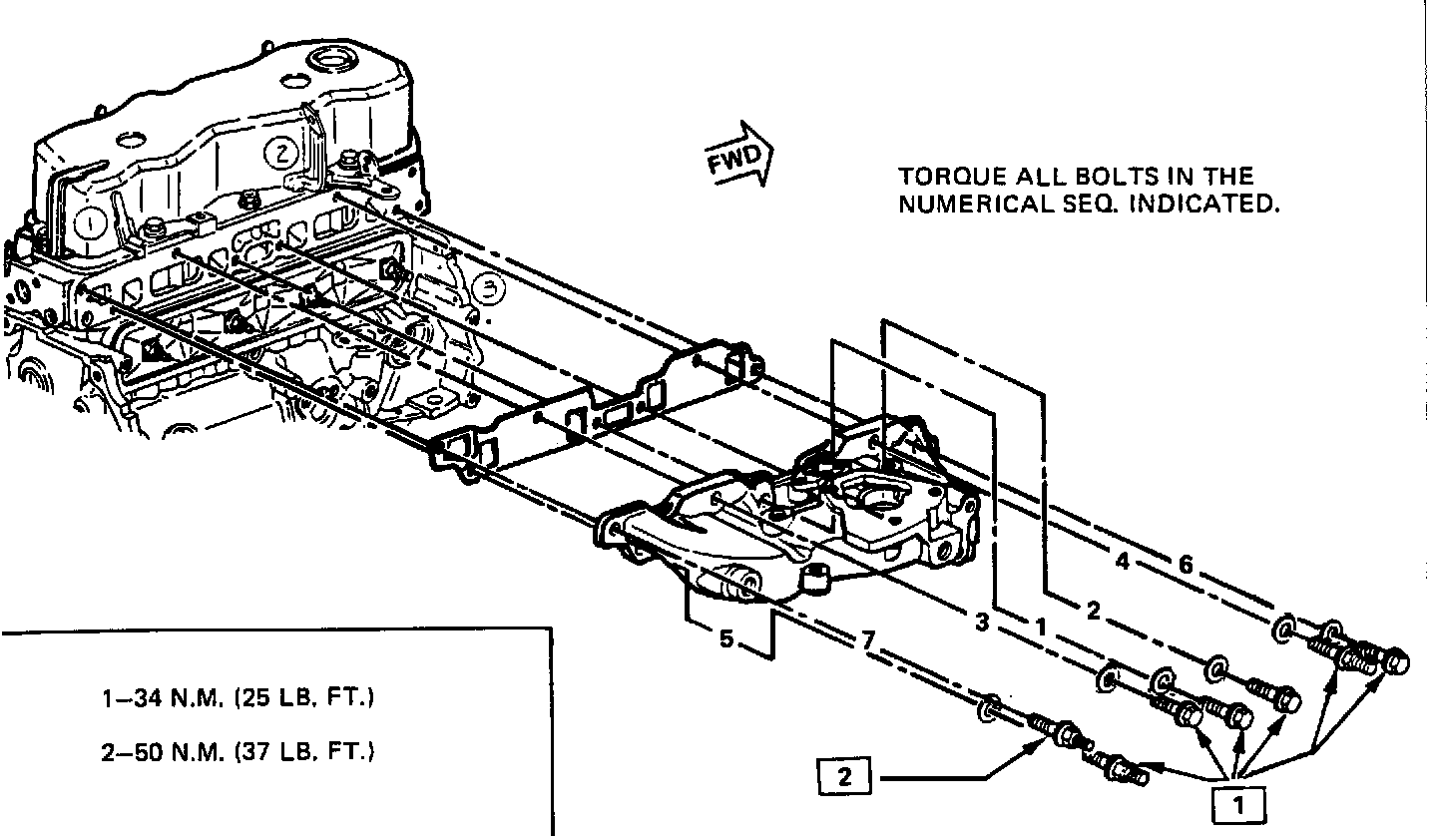

Intake Manifold Sequence:





Cylinder Head Sequence:
