Refrigerant Pressure Sensor / Switch
>>
Locations
>>

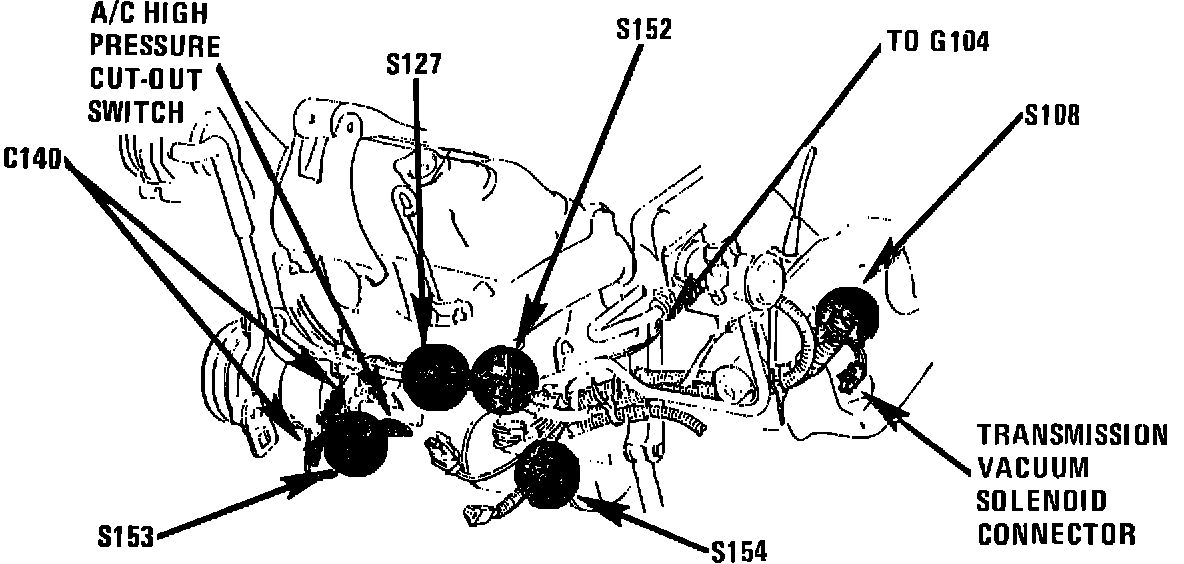

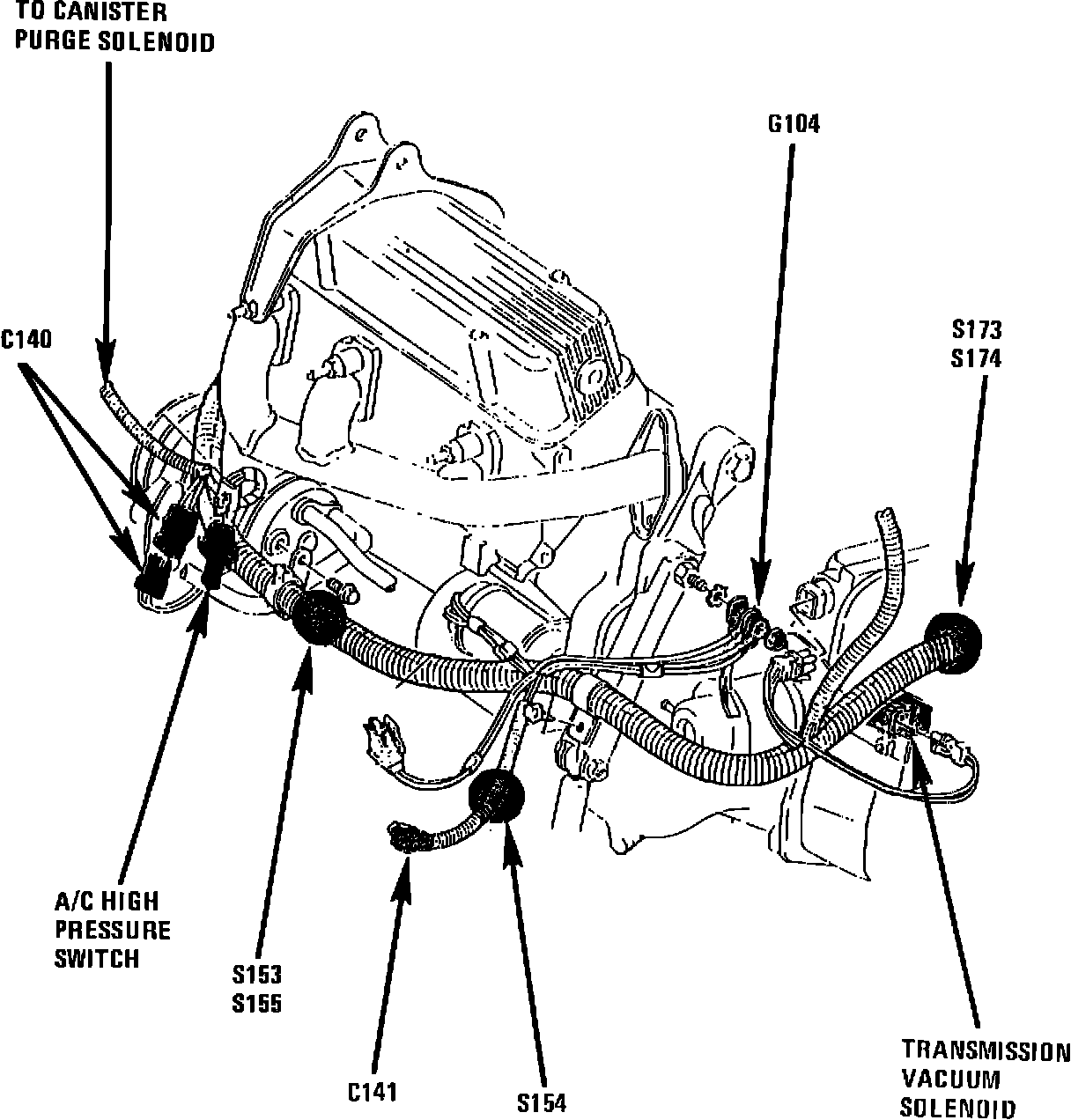

A/C High Pressure Switch
A/C High Pressure Switch
Front Of Engine.:
In End Of Compressor
Applicable to: 1984-85 Cutlass Ciera w/V6-181
Front Of Engine.:
In End Of Compressor
Applicable to: 1984-85 Cutlass Ciera w/V6-231
