Home >> Oldsmobile >> 1985 >> Cutlass Ciera Cruiser V6-181 3.0L >> Repair and Diagnosis >> Lighting and Horns >> Hazard Warning Lamps >> Diagrams >> Electrical Diagrams >> Part 1 of 4

Part 1 of 4

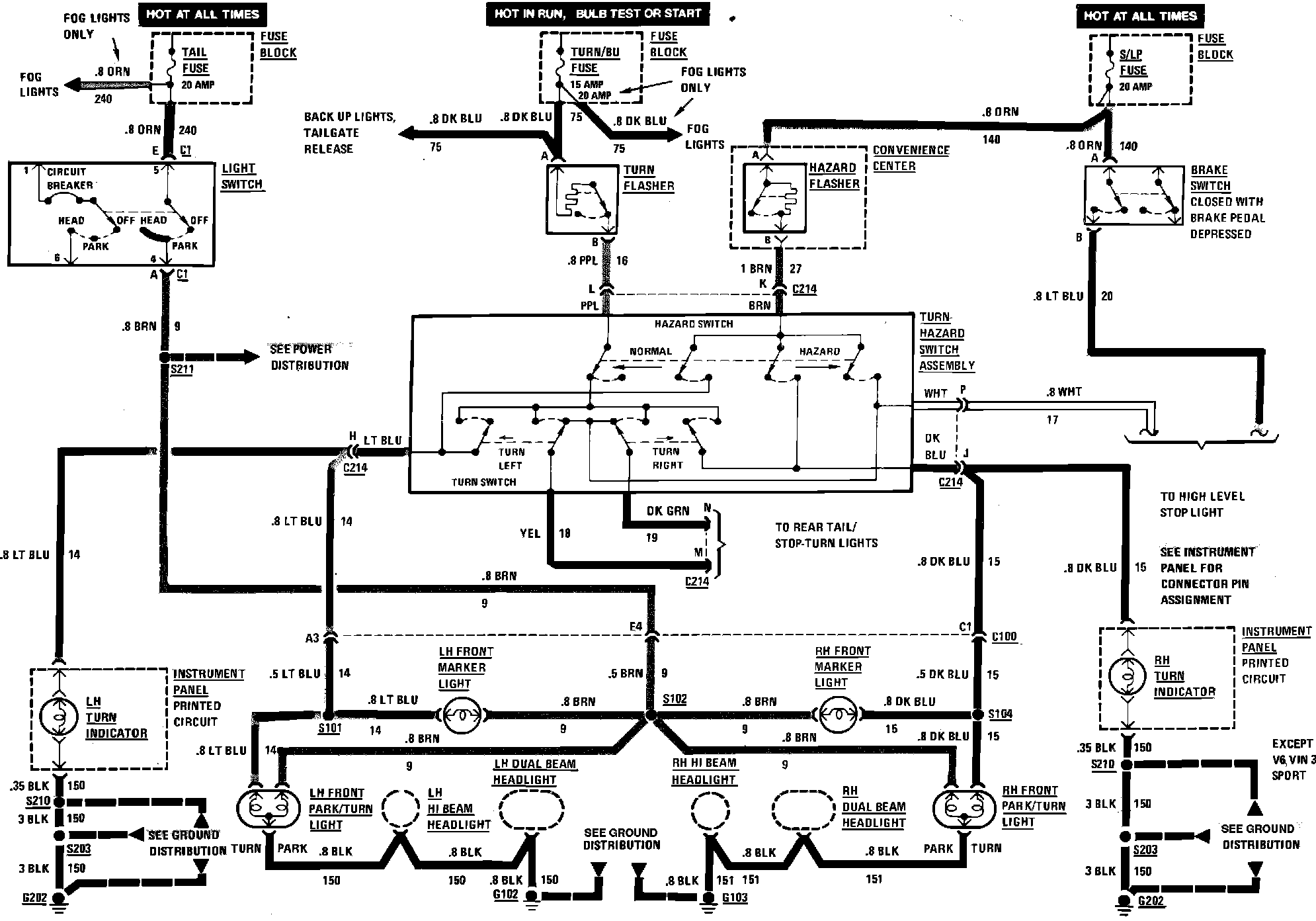

Fig. 131 Front Marker, Front Park, Hazard, Stop & Turn Signal Wiring Circuit (Part 1 of 4):
