Home
>>
Oldsmobile
>>
1985
>>
Cutlass Ciera Cruiser V6-231 3.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>
With Port Fuel Injection
With Port Fuel Injection

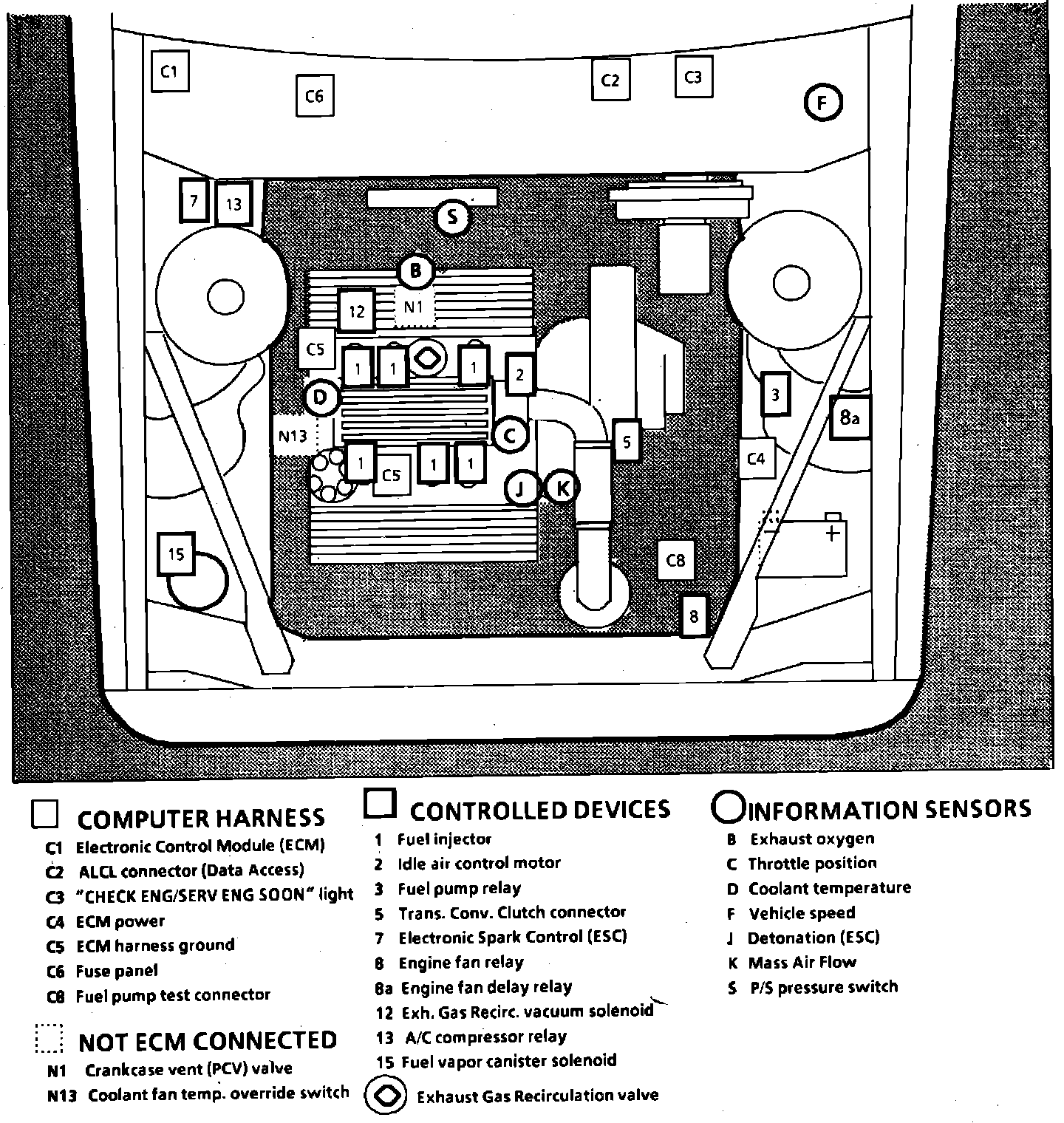

Fig. 25 Emission Component Location. 1985 Ciera W/V6-231/3.8L, PFI:
