Check Engine/Service Engine Indicator & Ignition

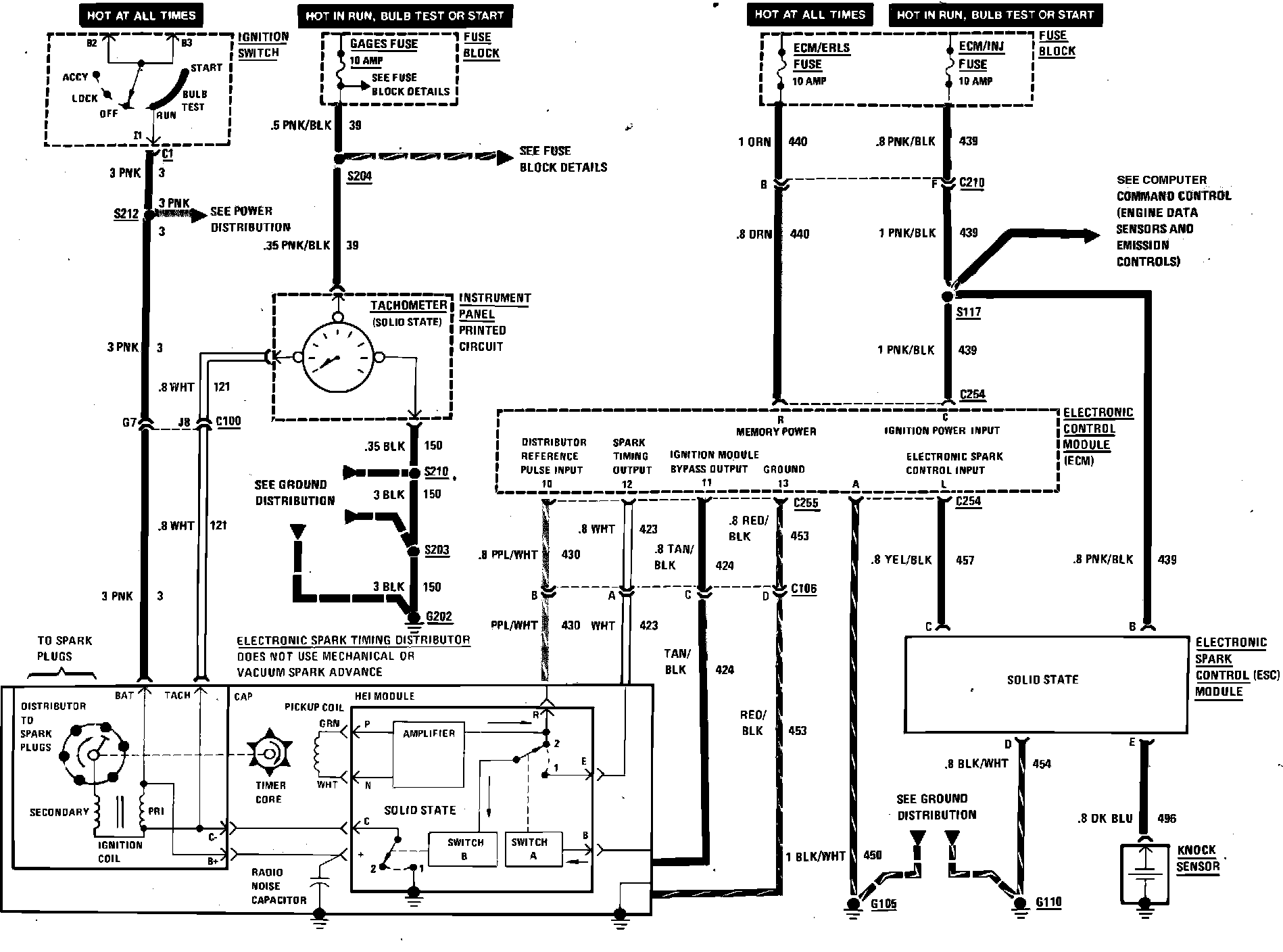

Fig. 75 Computer Command Control (Check Engine Light & Ignition System-Part (1 of 2) Wiring Circuit:

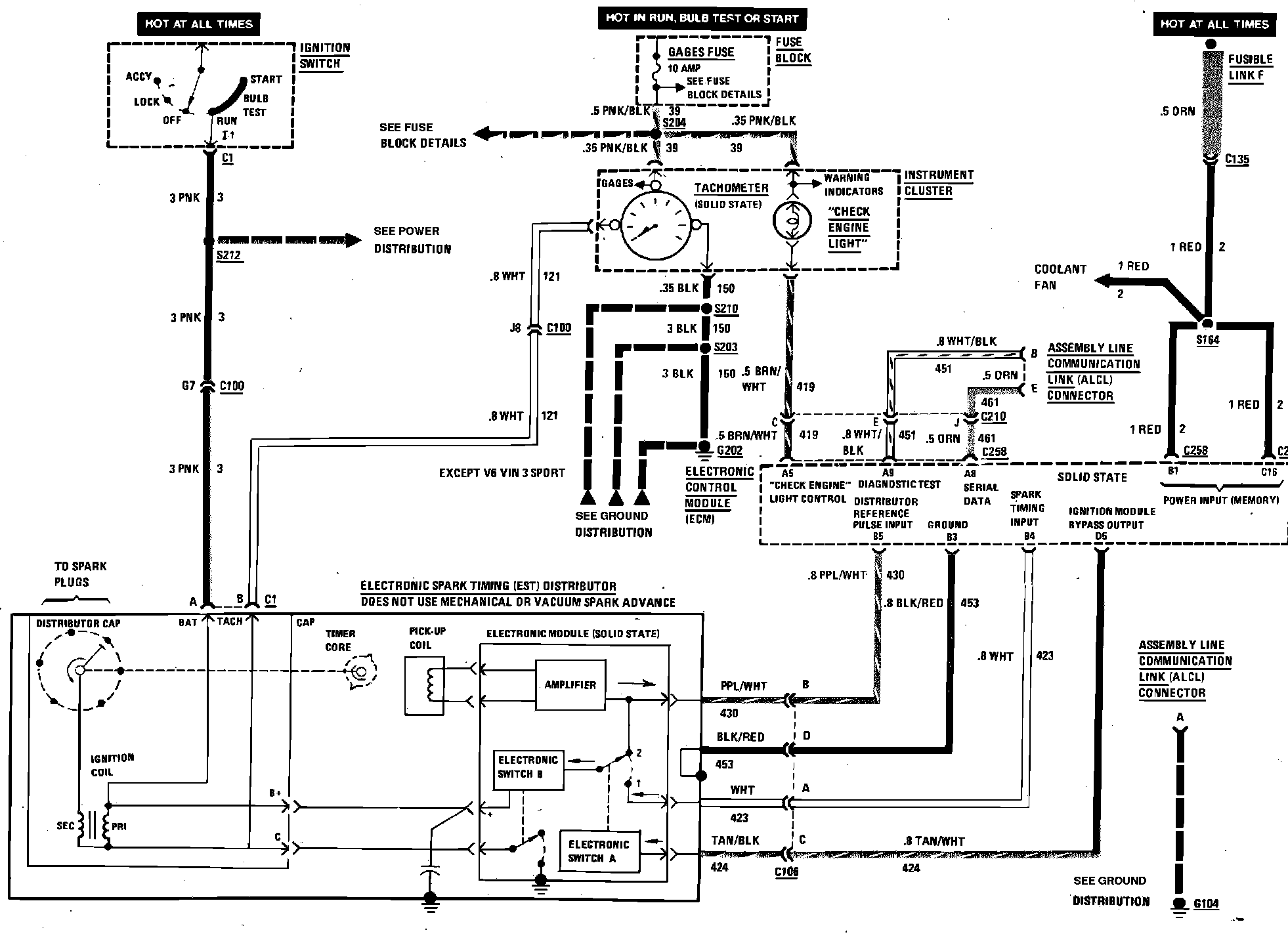

Fig. 75 Computer Command Control (Check Engine Light & Ignition System-Part (2 of 2) Wiring Circuit:



Fig. 199 Multiport Fuel Injection (Check Engine Light & Ignition) Wiring Circuit:
