Home >> Oldsmobile >> 1985 >> Cutlass Ciera L4-151 2.5L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Vehicle Data Sensors

Vehicle Data Sensors

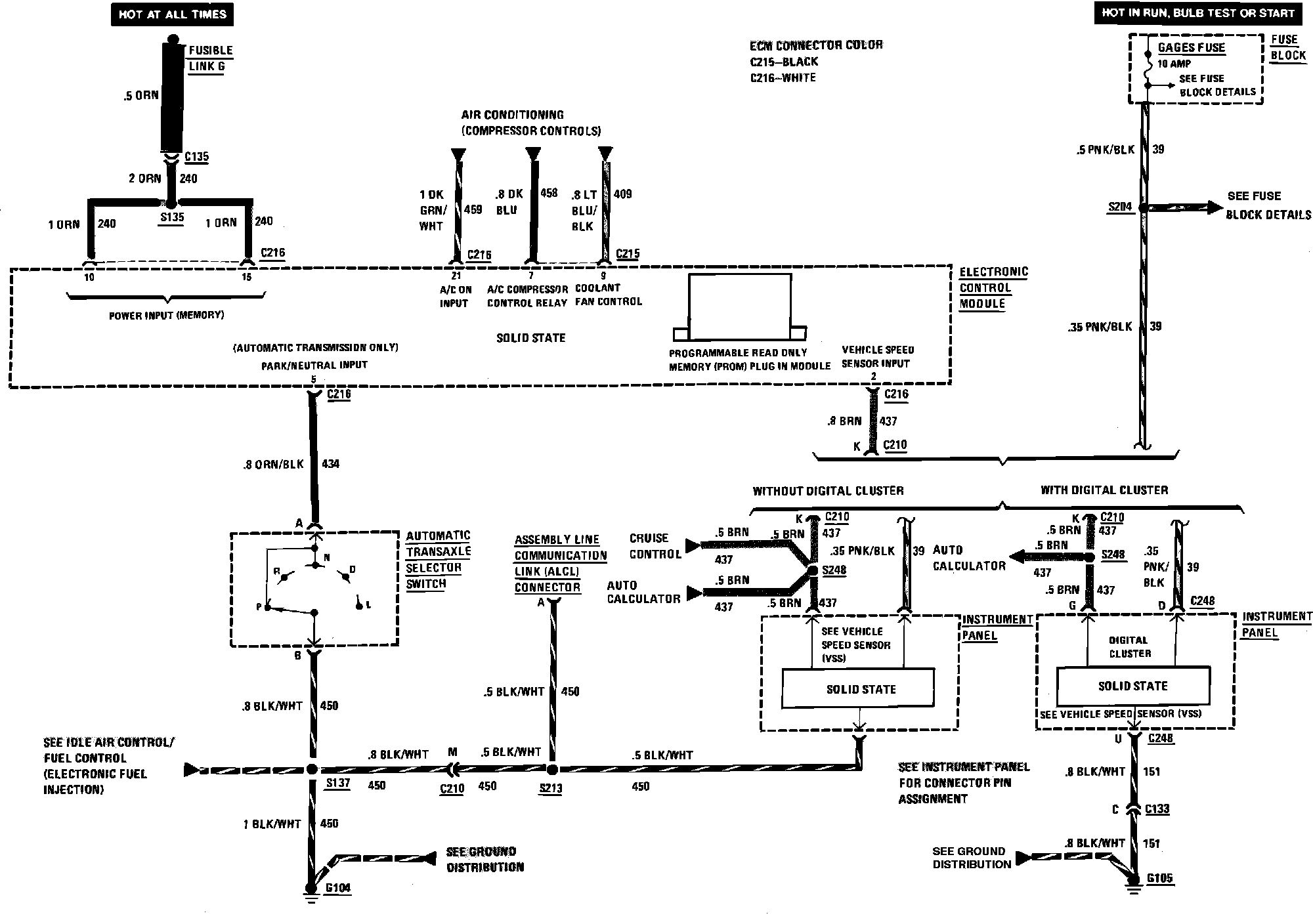

Fig. 100 Electronic Fuel Injection (Vehicle Data Sensors) Wiring Circuit:
