Figure 23 V6-262 (4.3L) Diesel With A/T, Fed. (Vin T)
Figure 23 V6-262 (4.3L) Diesel With A/T, Fed. (Vin T)

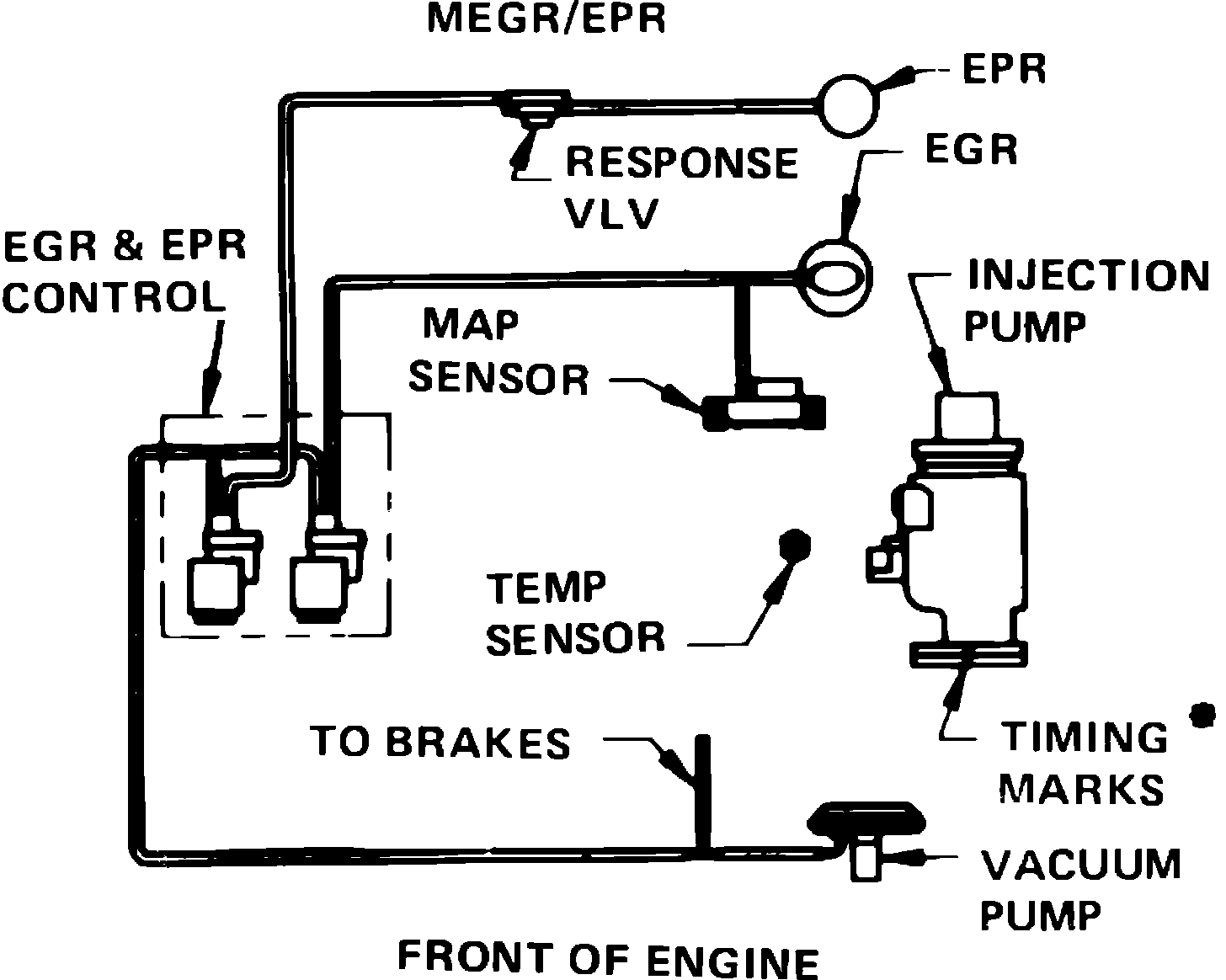

Fig. 23 Vacuum Hose Routing. 1985 V6-262 (4.3L) Diesel With A/T, Fed. (VIN T:
