Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Printed Circuit
>>
Indicators
Indicators

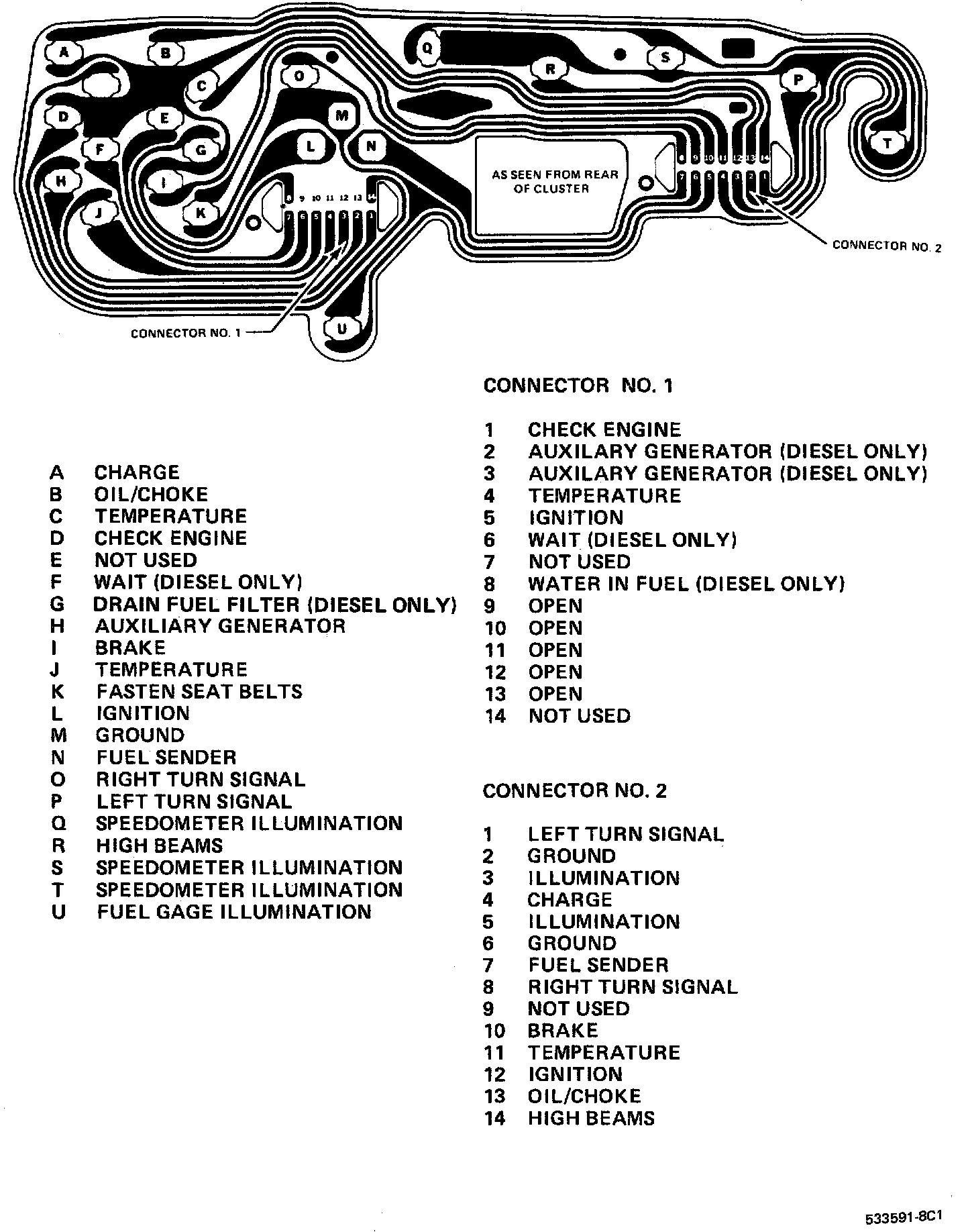

Printed Circuit:
