Oldsmobile
>>
1985
>>
Delta 88 V6-231 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Sensors
>>
Barometric Pressure Sensor
Barometric Pressure Sensor

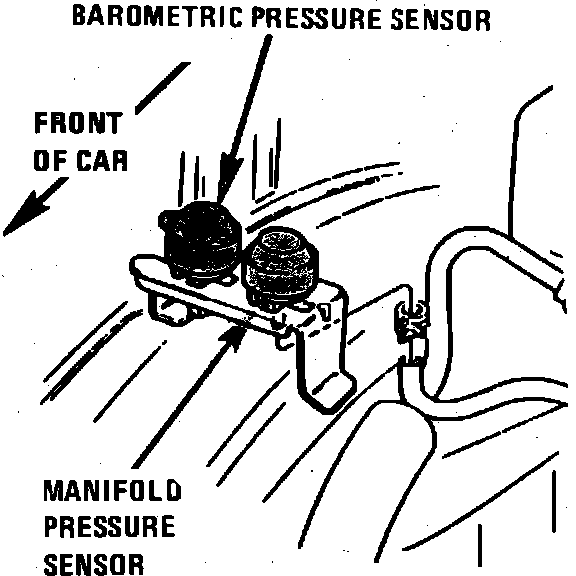

RH Fender Wall.:
Attached To Top Of RH Wheelwell
Applicable to: Oldsmobile w/V6 Engine

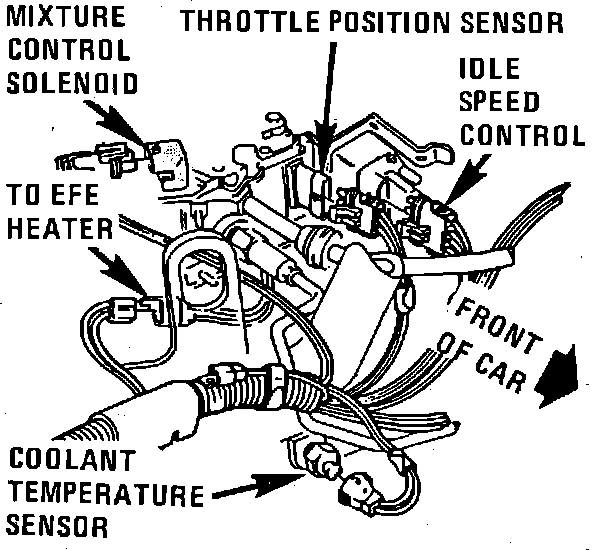

Front Of Engine Below Generator.:
Below RH Side Of I/P At Shroud
Applicable to: Oldsmobile
