Coolant Temperature Sender/Switch

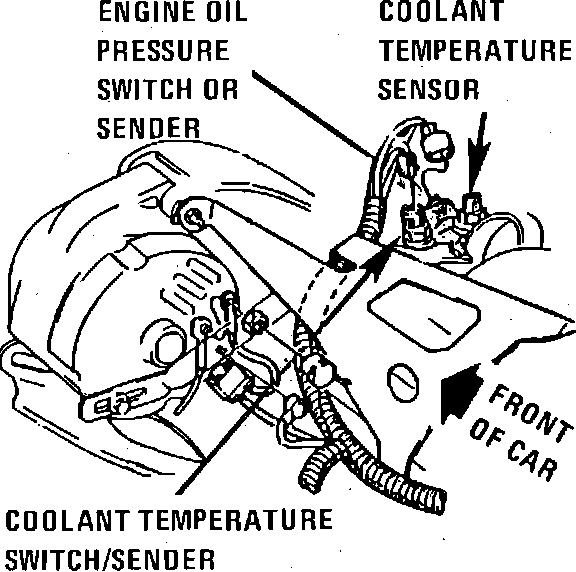

Coolant Temperature Sender/Switch
Top Front Of Engine.:
Top Front LH Side Of Engine
Applicable to: Oldsmobile
