Dome Lamp
>>
Dome Lamp With Illuminated Entry
Dome Lamp With Illuminated Entry

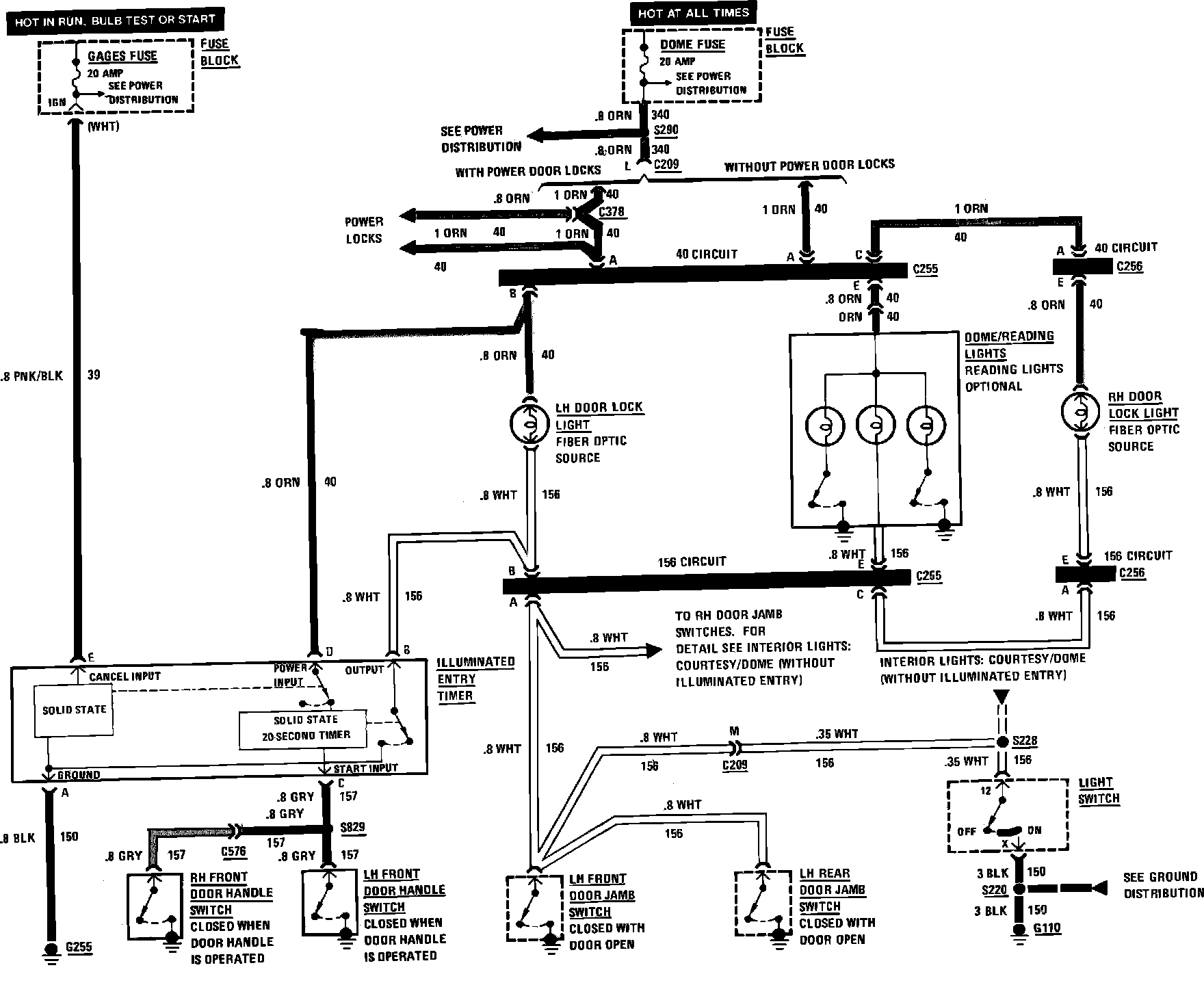

Interior Lights Wiring Circuit (Dome Lamp), With Illuminated Entry:
