4 Door With Amber Lights

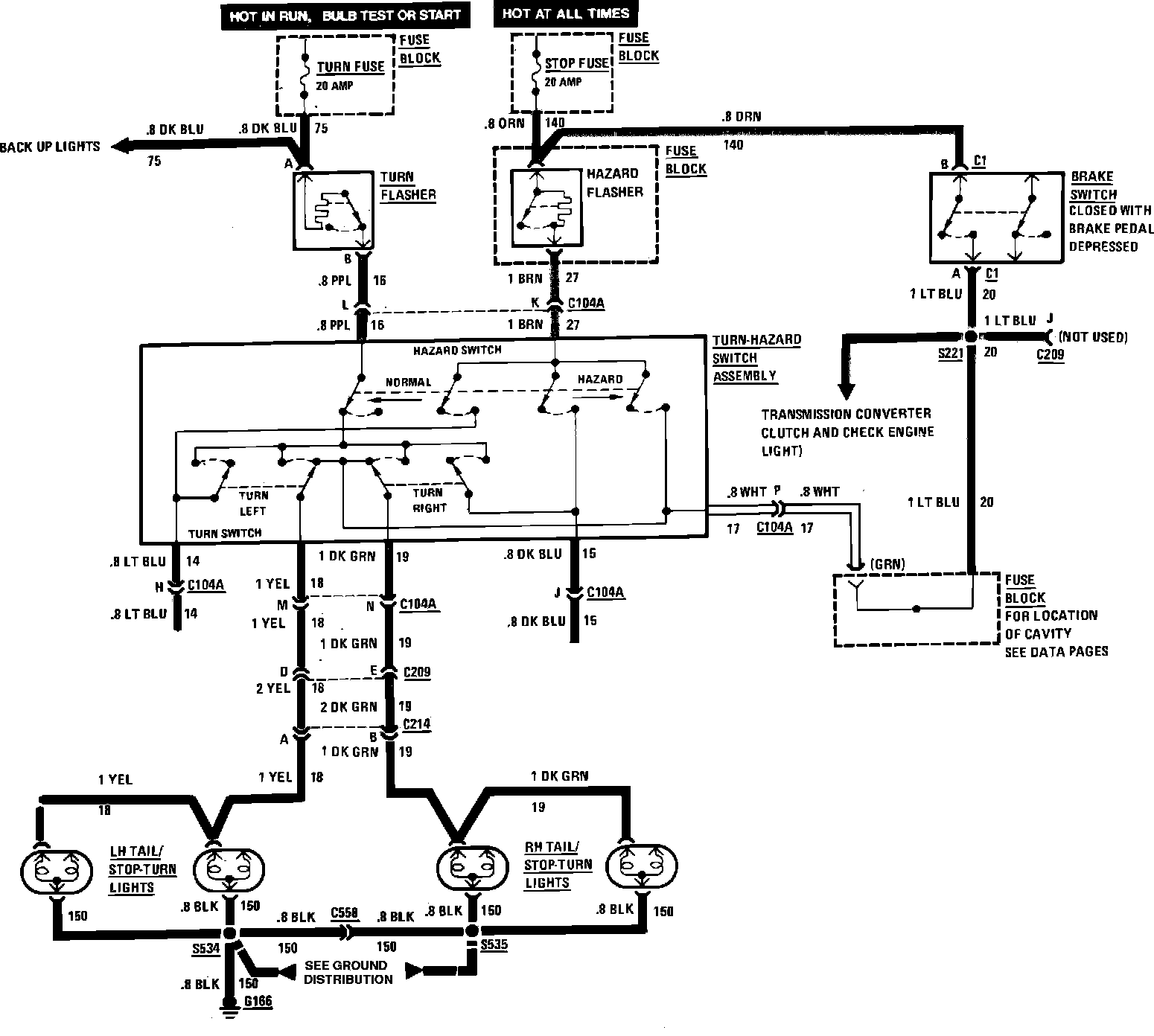

Rear Hazard, Stop & Turn Wiring Circuit (4 Door With Amber Lights):



Rear Hazard, Stop & Turn Lamp Wiring Circuit (2 Door With Amber Lights):
