Front Marker, Front Park, ENG Compart & Turn Lamp

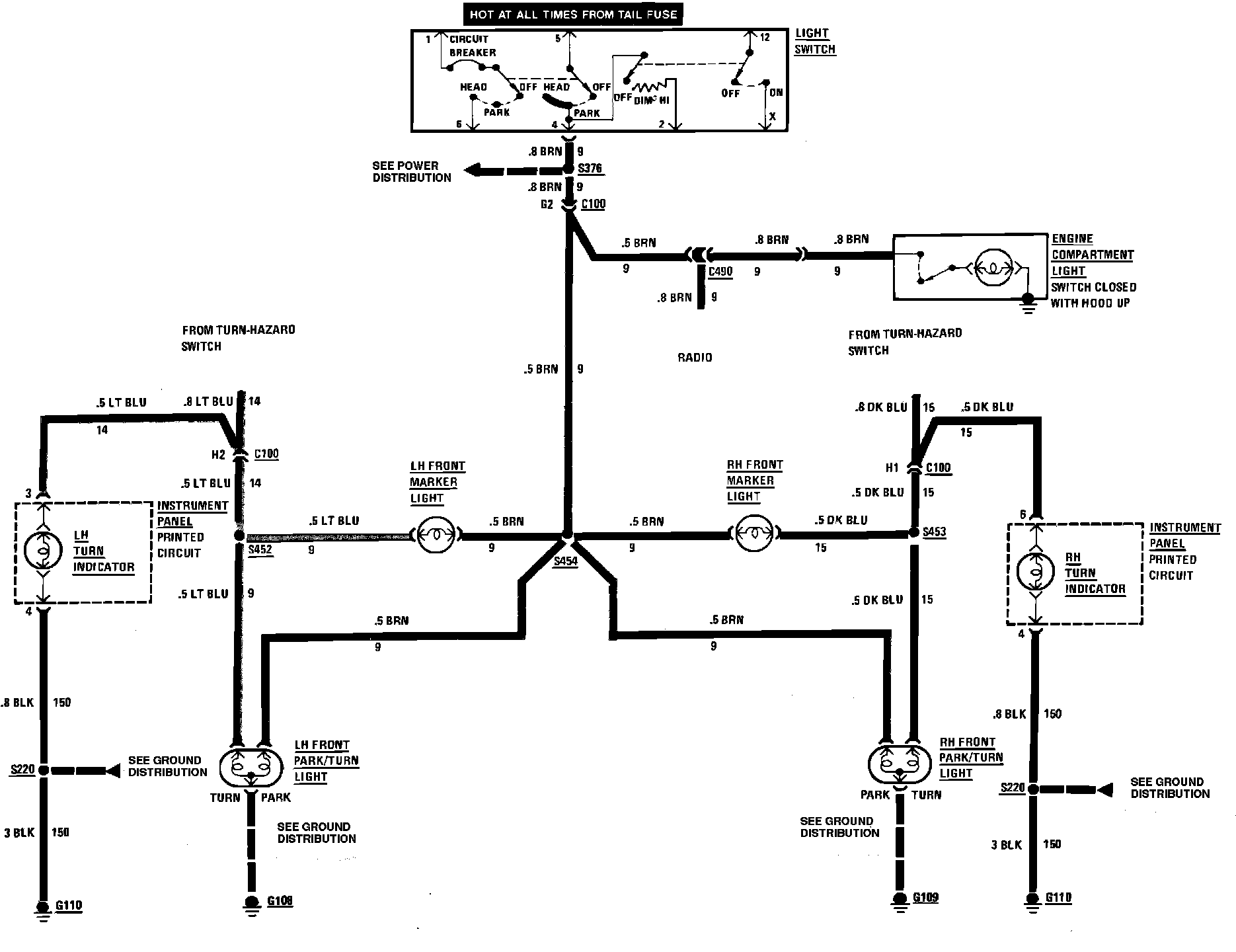

Front Marker, Front Park, Engine compartment & Turn Lamp Wiring Circuit:
