Vacuum and Vapor Hose Diagrams
>>
With Tempmatic Air Conditioning
With Tempmatic Air Conditioning

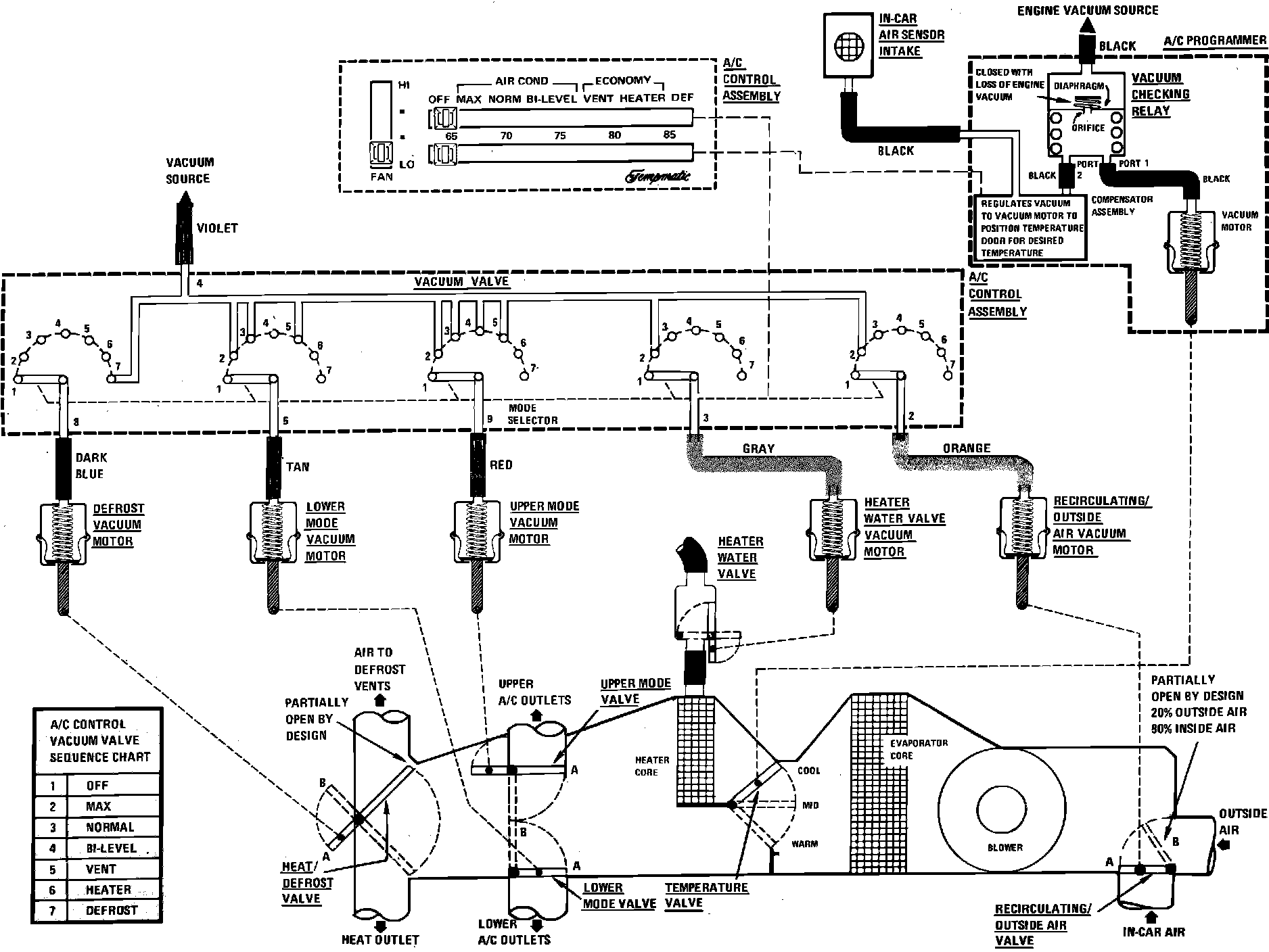

Air Conditioning Vacuum Circuit (With Tempmatic A/C):
