Ninety-Eight FWD V6-181 3.0L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Diagrams
>>
Electrical Diagrams
>>
With Memory (Part 1 of 3)
With Memory (Part 1 of 3)

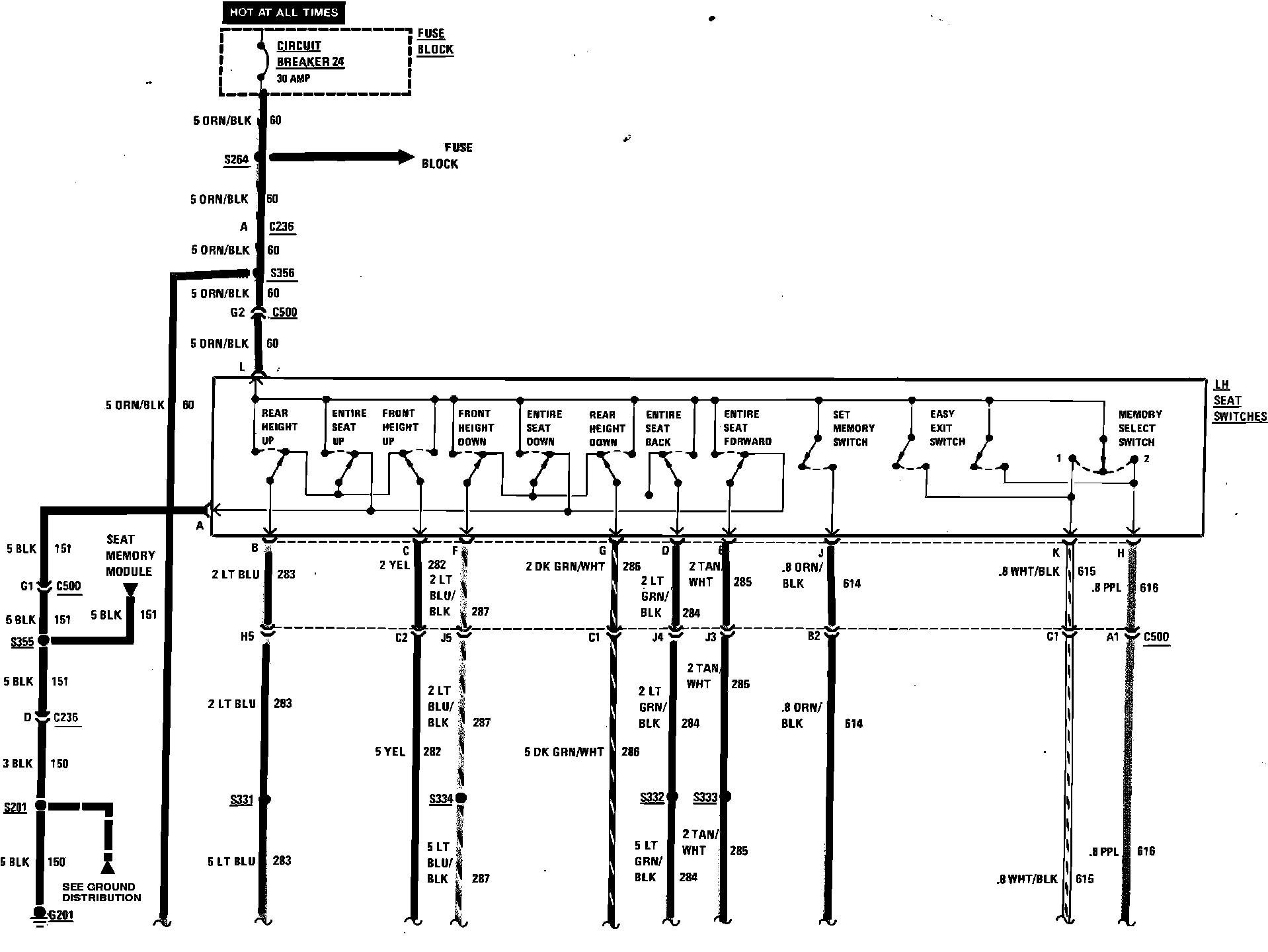

Power Seat Wiring Circuit, 98 With Memory:
