Home >> Oldsmobile >> 1985 >> Ninety-Eight FWD V6-181 3.0L >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Fusible Link V

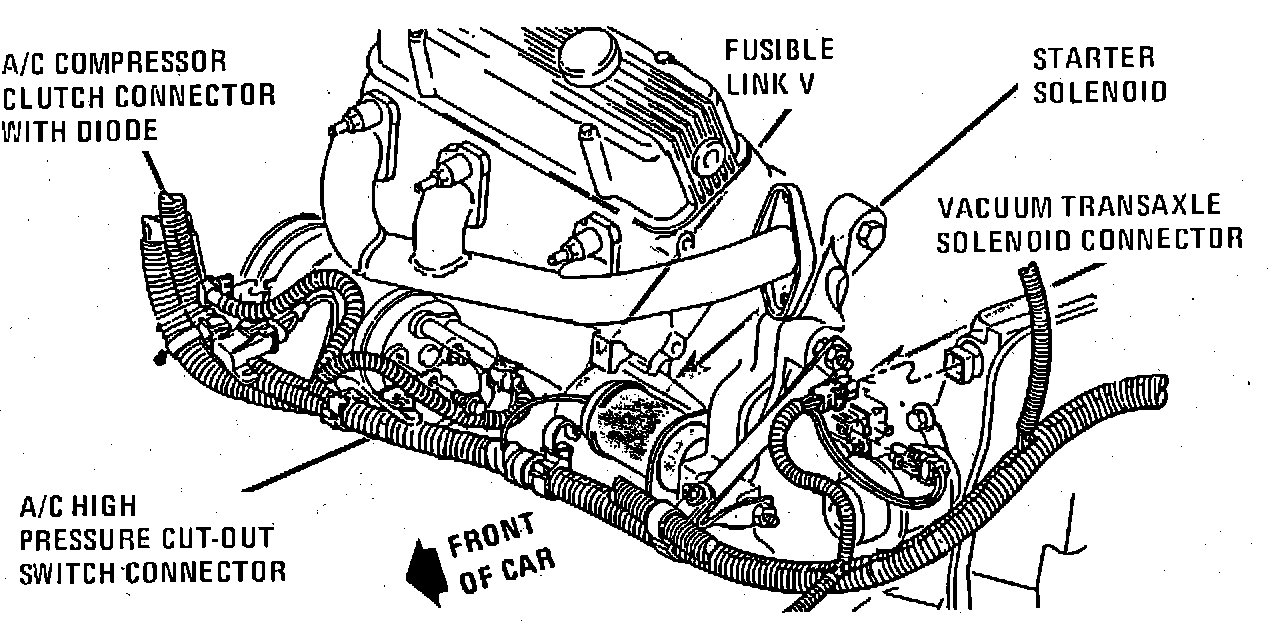

Fusible Link V

LH Front Of Engine.:





LH Front Of Engine, At Starter Solenoid
