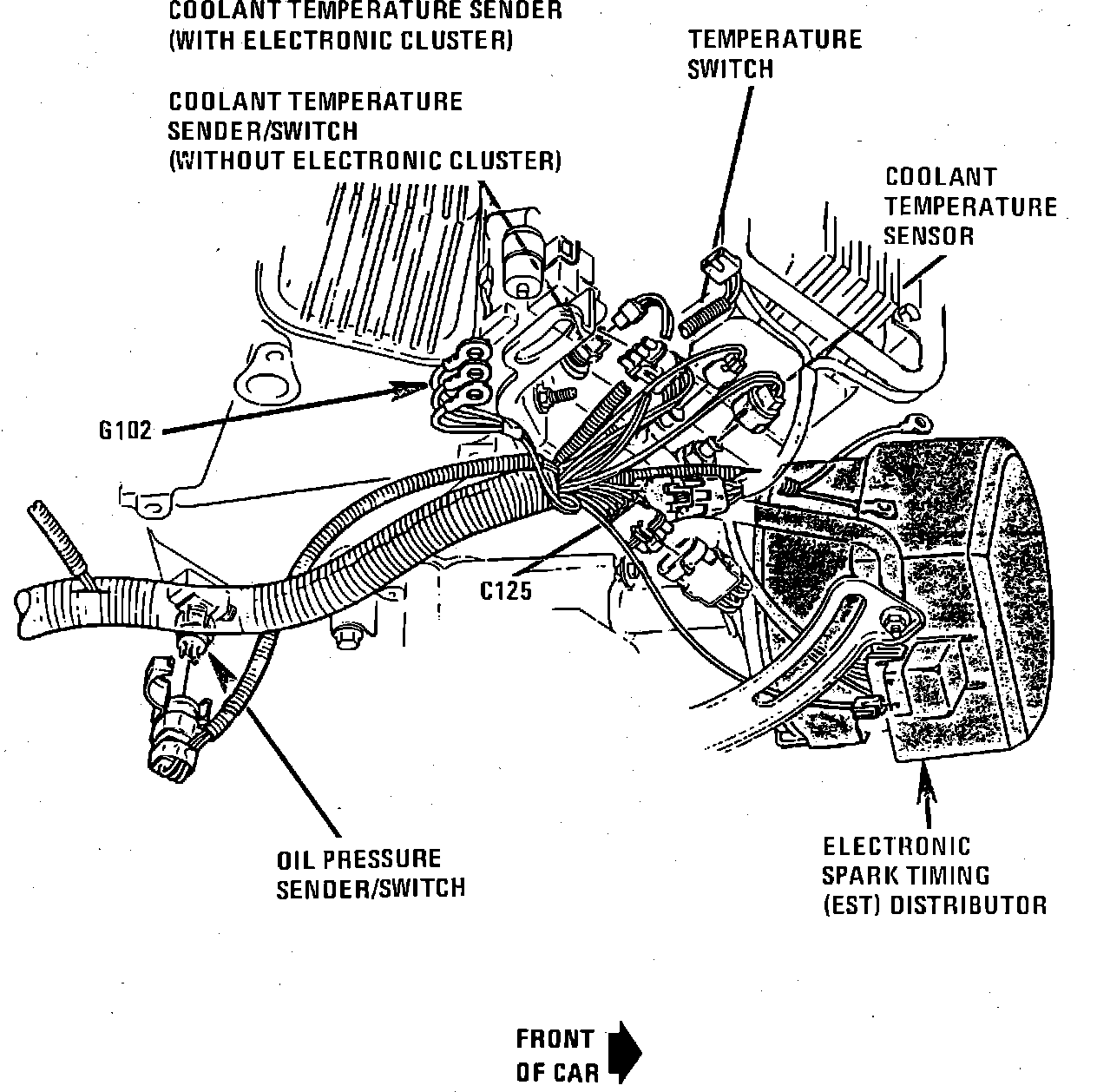

Coolant Temperature Sensor
RH Side. 3.8L:
Distributor Location.:
Front Of Engine, Near Distributor, Top RH Of Engine
Applicable to: Electra & 98
