Brake Warning Indicator
>>
With Alarm or Voice Information System
With Alarm or Voice Information System

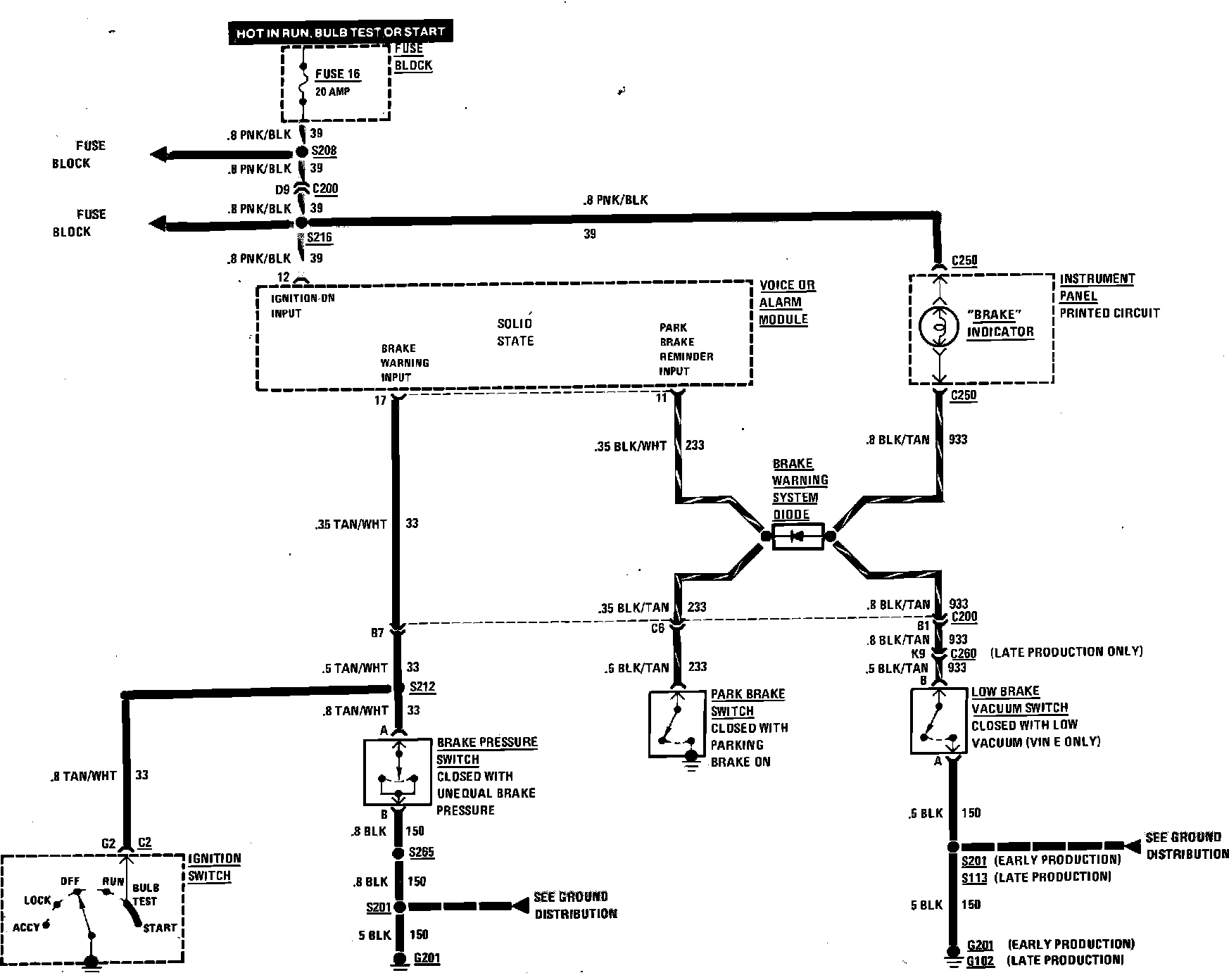

Brake Warning System Wiring Circuit, 98, With Alarm Or Voice Information System:
