Operation CHARM: Car repair manuals for everyone.
Home >> Oldsmobile >> 1985 >> Ninety-Eight FWD V6-181 3.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heated Glass Element >> Less Automatic Air Conditioning

Less Automatic Air Conditioning

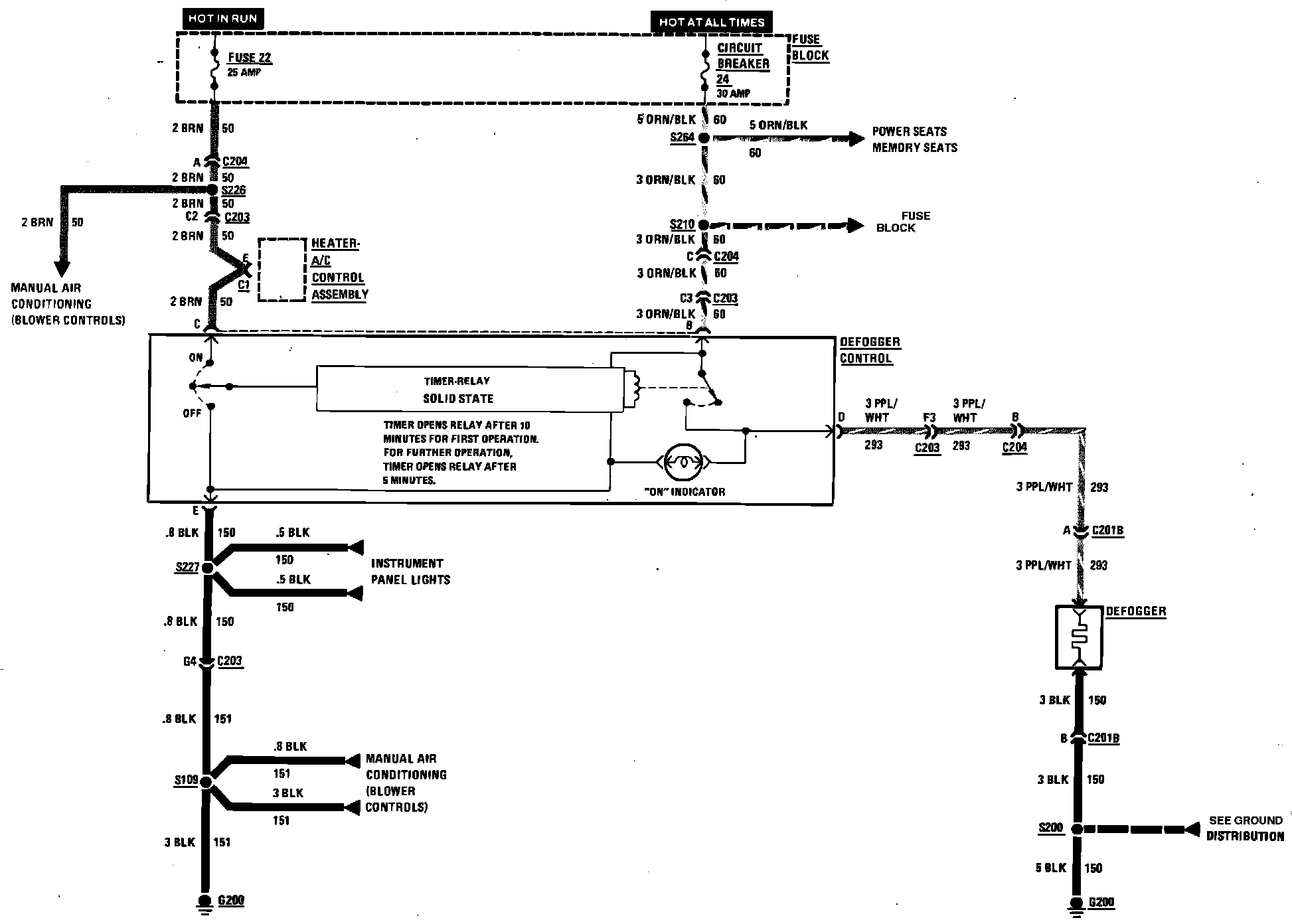

Rear Window & Mirror Defogger Wiring Circuit, 98 Less Automatic Air Conditioning:
