With Automatic Air Conditioning

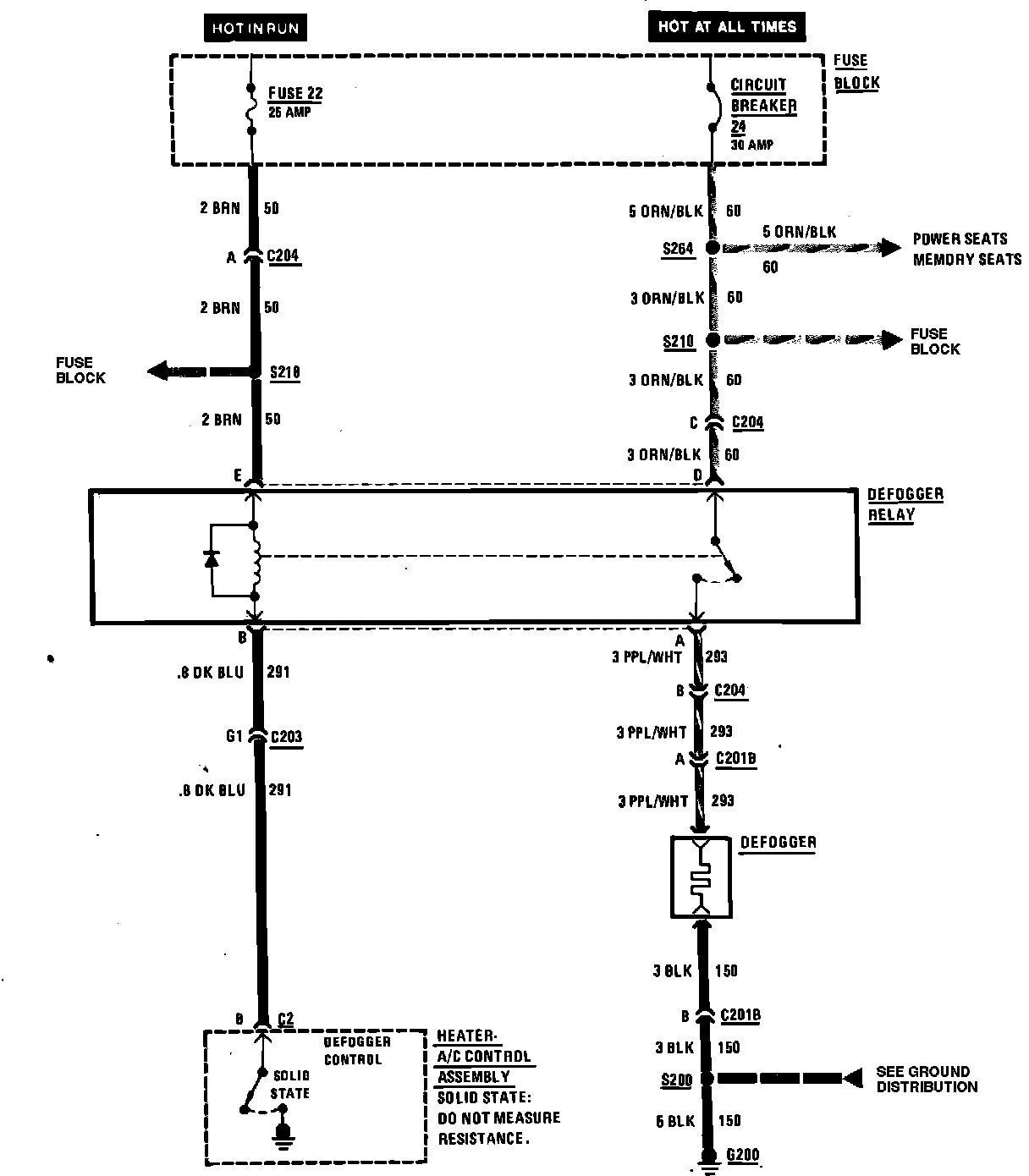

Rear Window & Mirror Defogger Wiring Circuit, 98 With Automatic Air Conditioning:
