With Automatic Door Locks

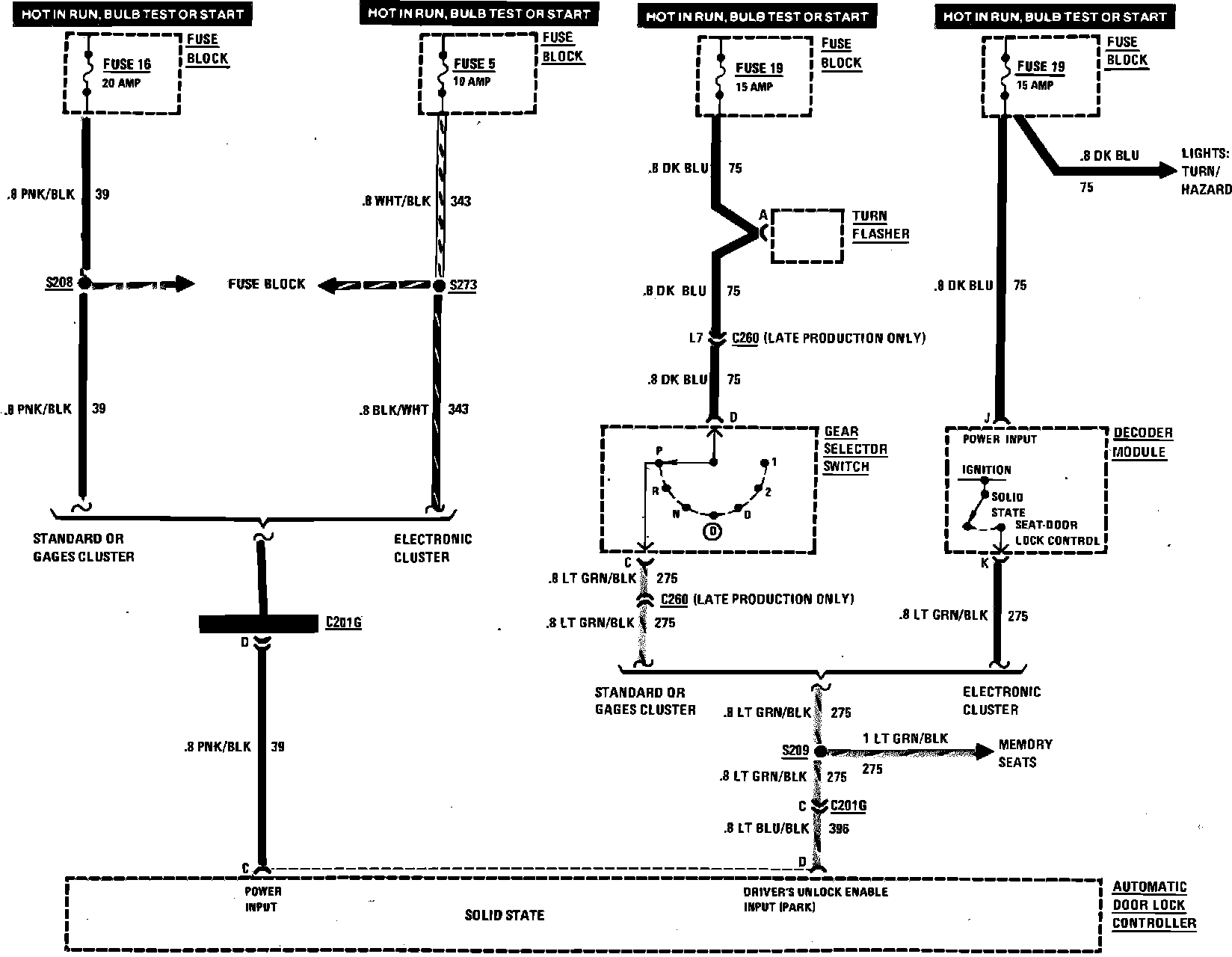

Automatic Door Lock Wiring Circuit, 98:

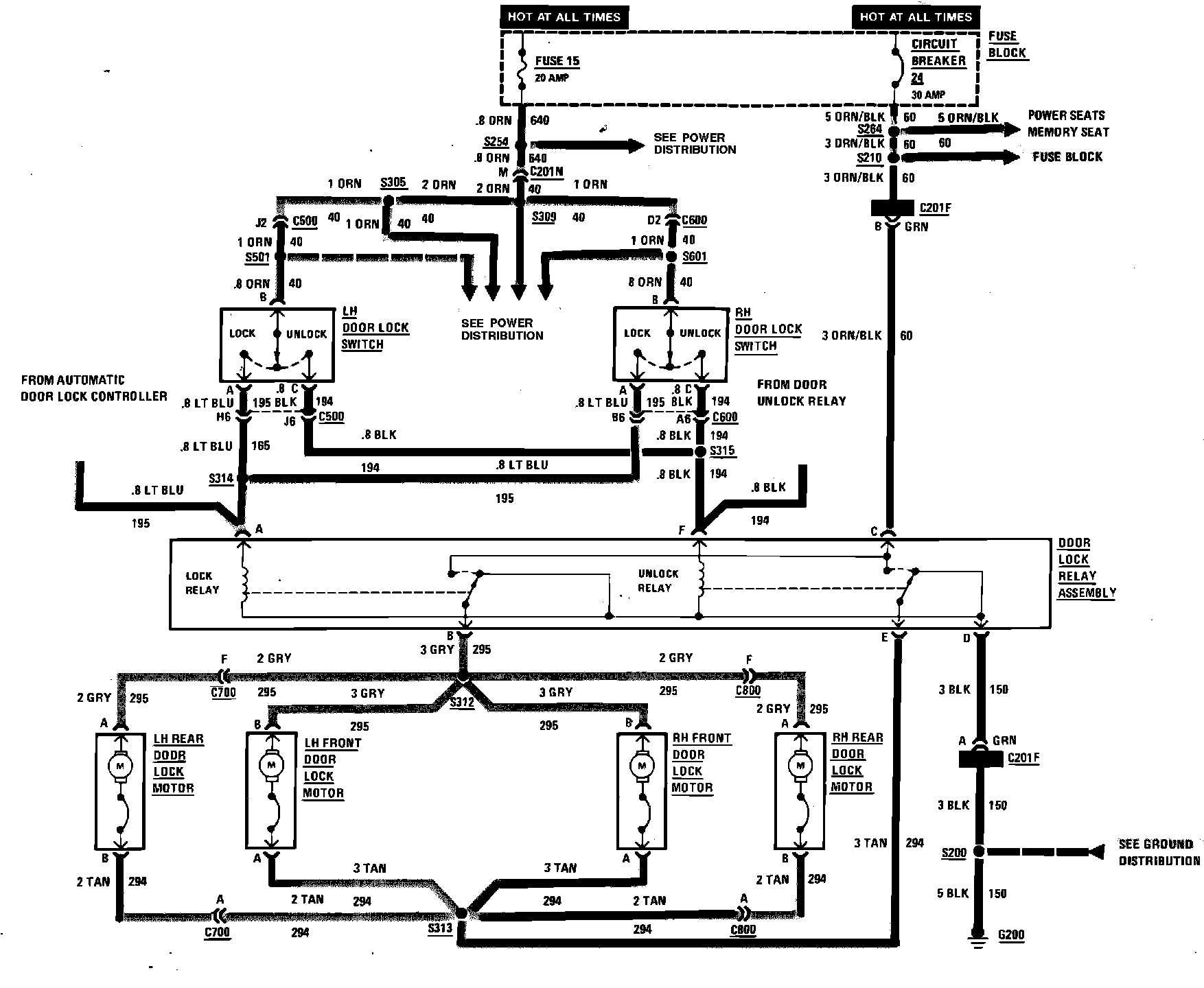

Automatic Door Lock Wiring Circuit, 98:

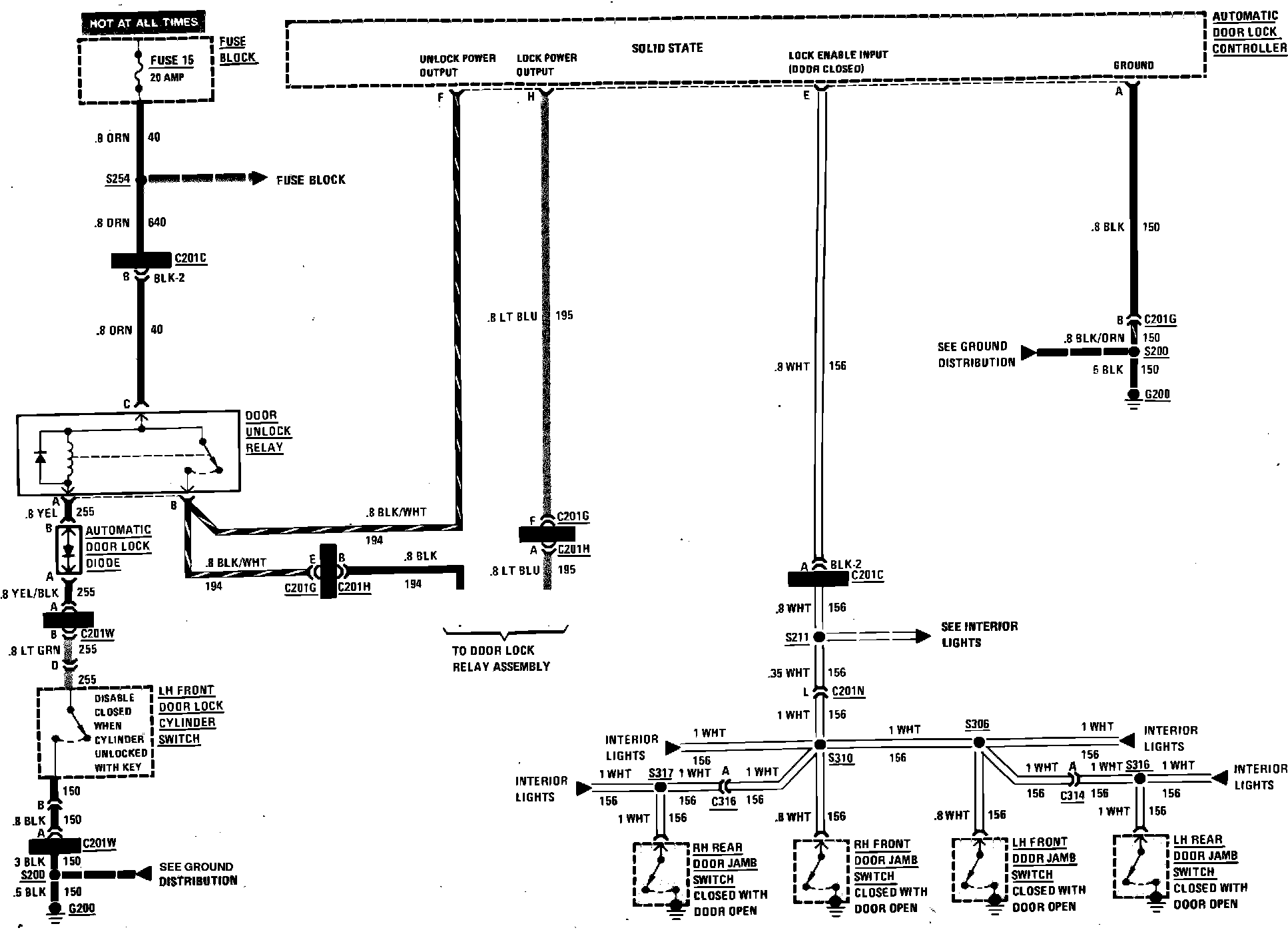

Automatic Door Lock Wiring Circuit, 98:
