L/Mem, Driv's Seat Early Prod (Part 1 of 2)
L/Mem, Driv's Seat Early Prod (Part 1 of 2)

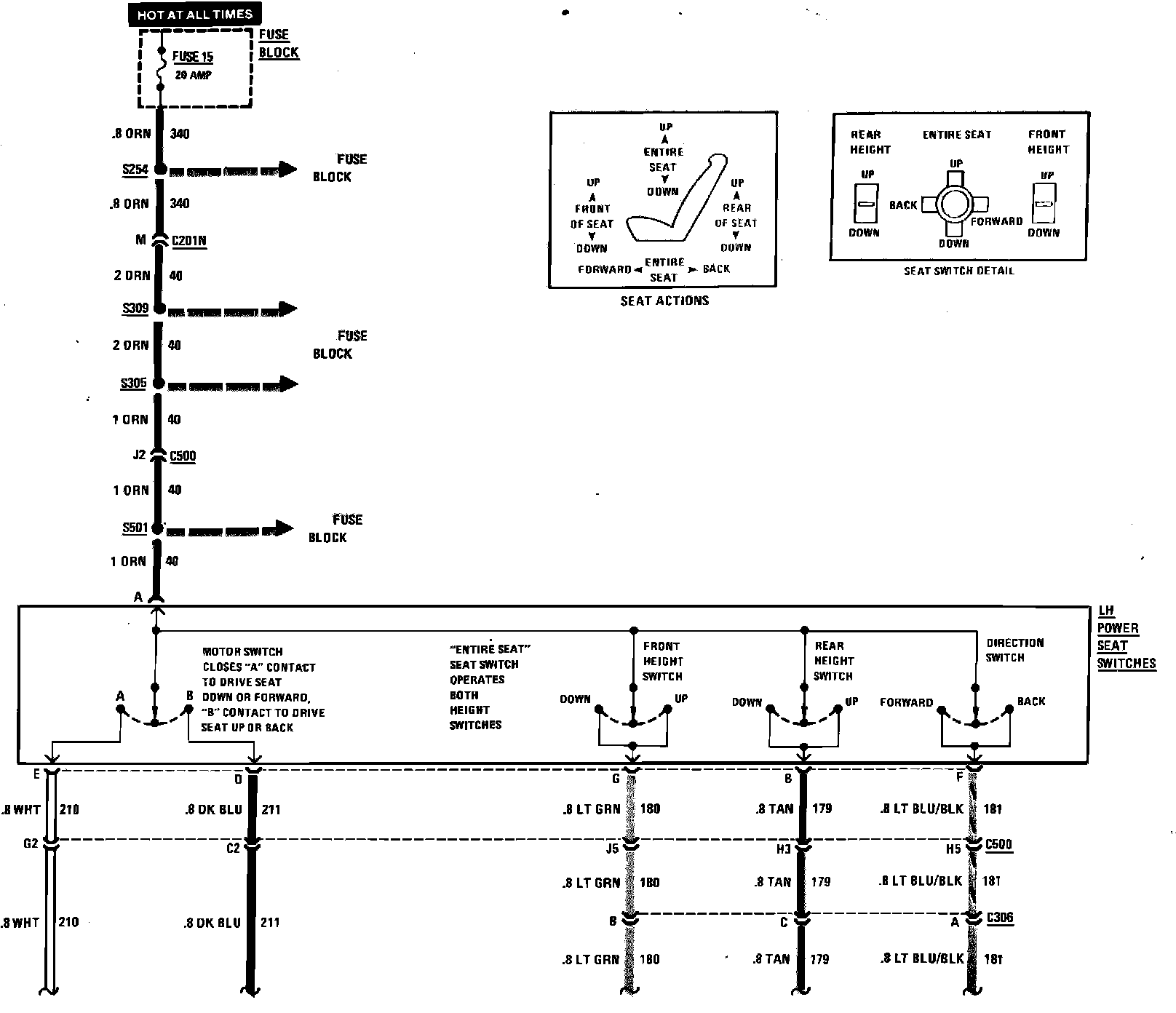

Power Seat Wiring Circuit, 98 Less Memory, Driver's Seat, Early Production:
