Less Memory, Passenger's Seat, Late Production

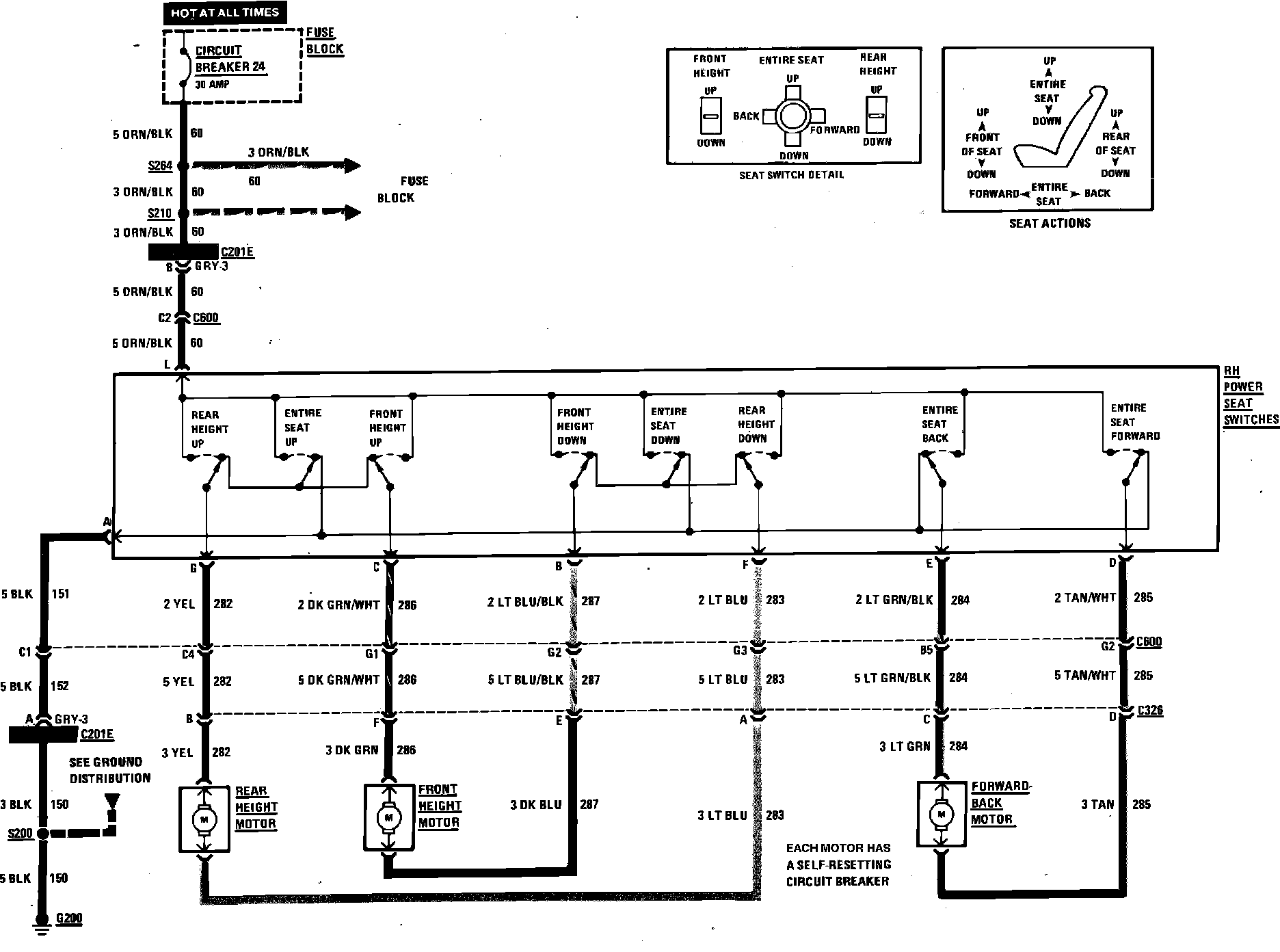

Power Seat Wiring Circuit, 98 Less Memory, Passenger's Seat, Late Production:
