Ignition Key, Lights On & Seat Belt Warning

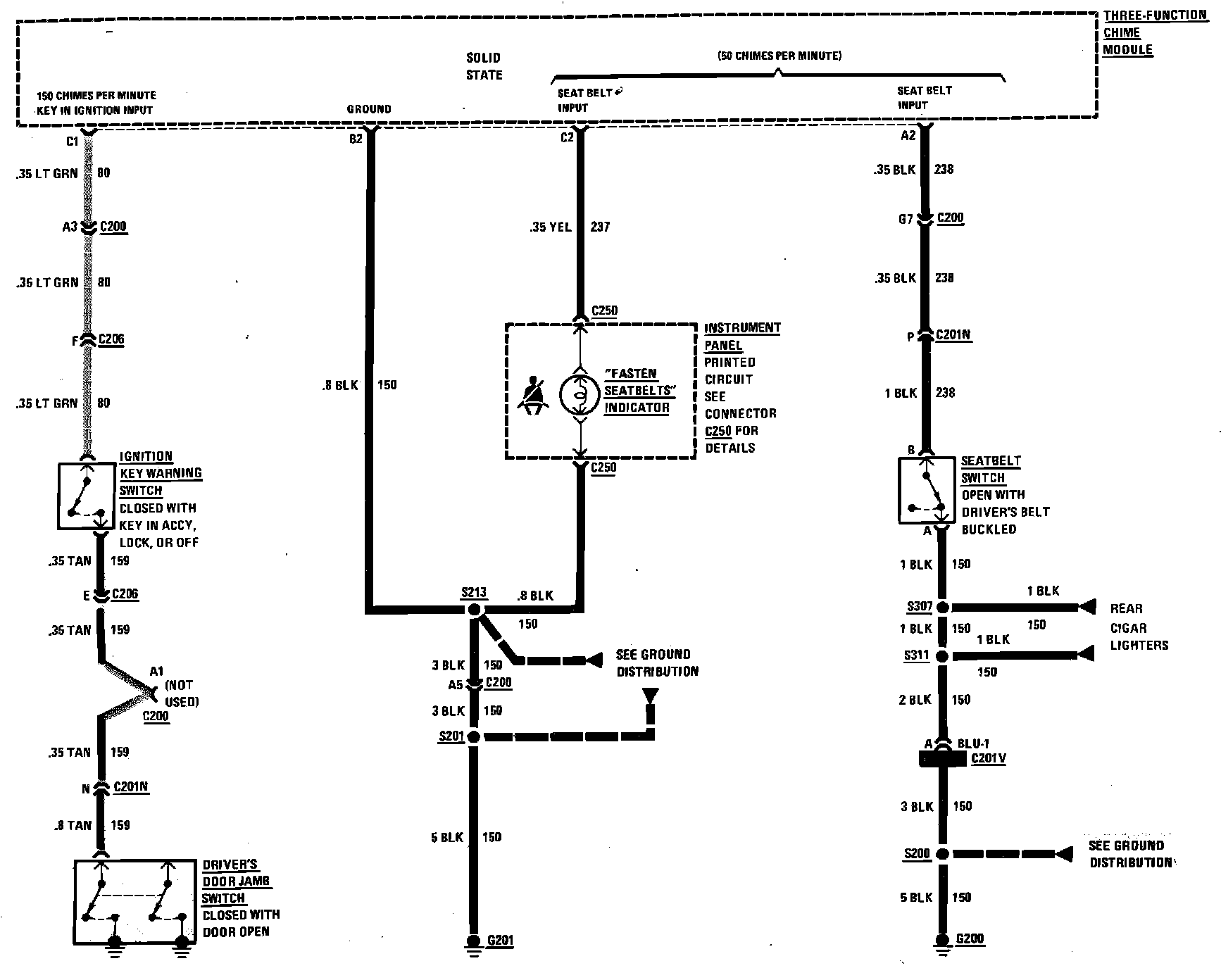

Ignition Key, Lights On & Seatbelt Warning System Wiring Circuit, 98 Less Alarm & Voice Information System:

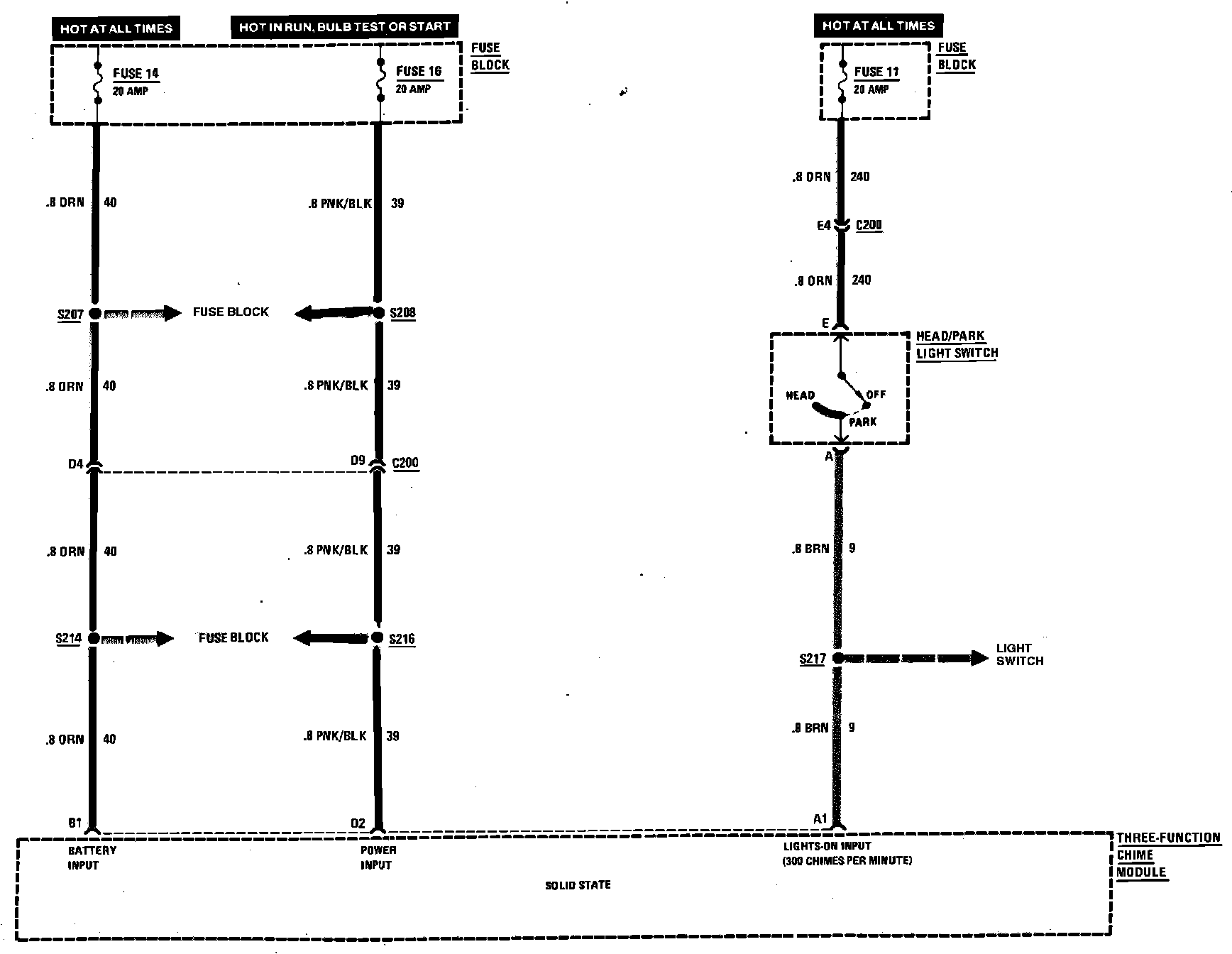

Ignition Key, Lights On & Seatbelt Warning System Wiring Circuit, 98 Less Alarm & Voice Information System:
