Instrument Panel Illumination

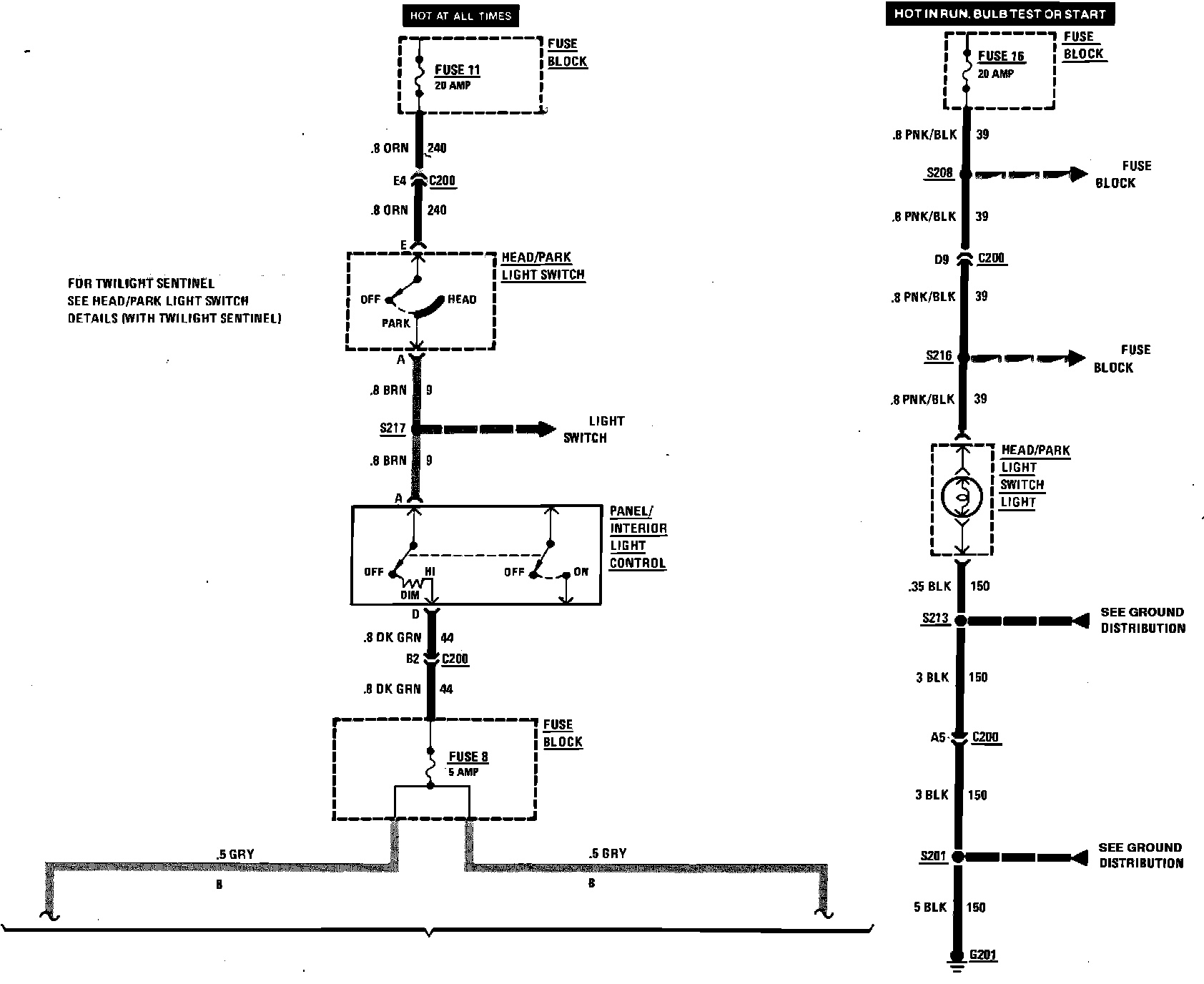

Instrument Panel Illumination Wiring Circuit, 98:

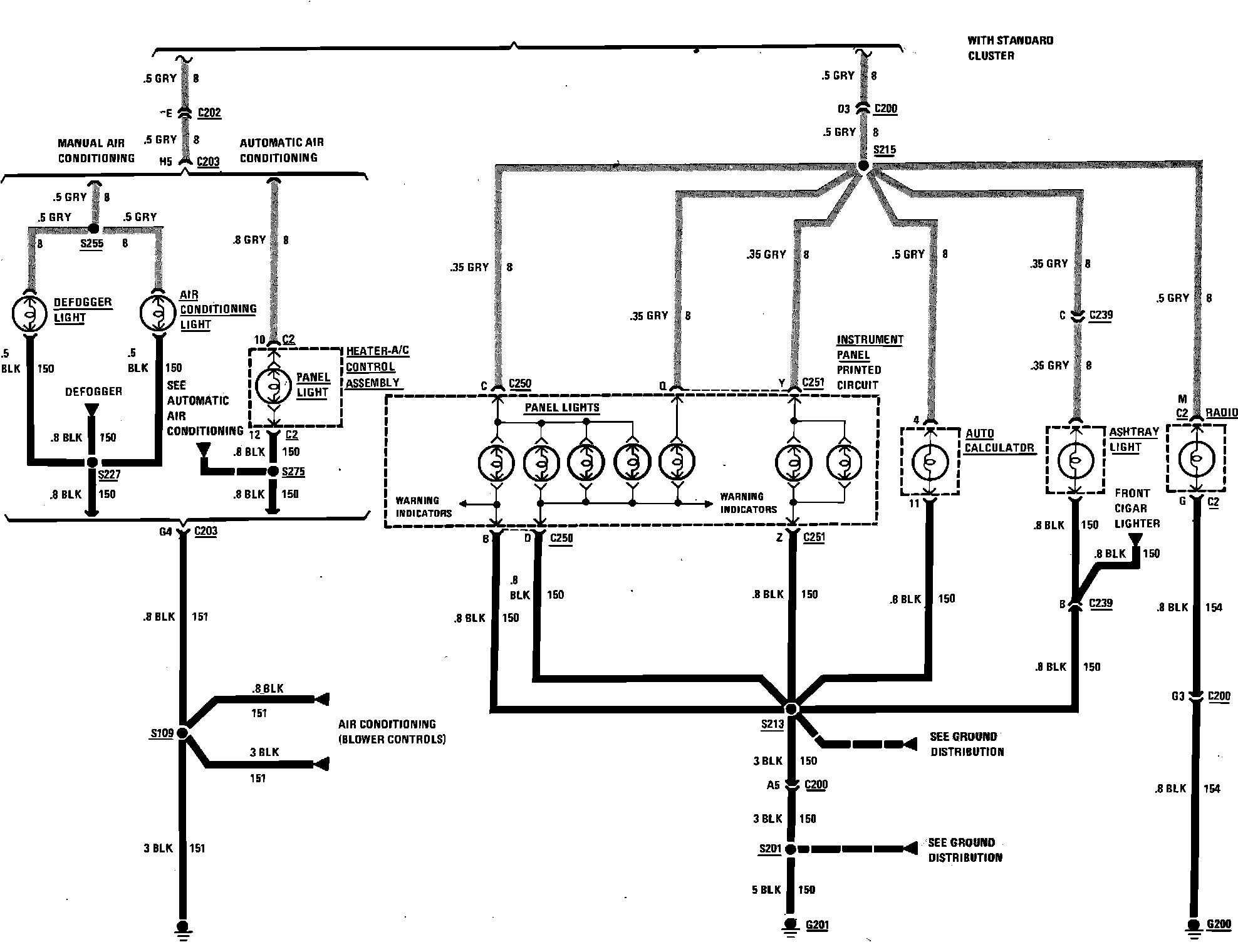

Instrument Panel Illumination Wiring Circuit, 98:
