Air Flow Sensor, Emission Controls & Spark Control
Air Flow Sensor, Emission Controls & Spark Control

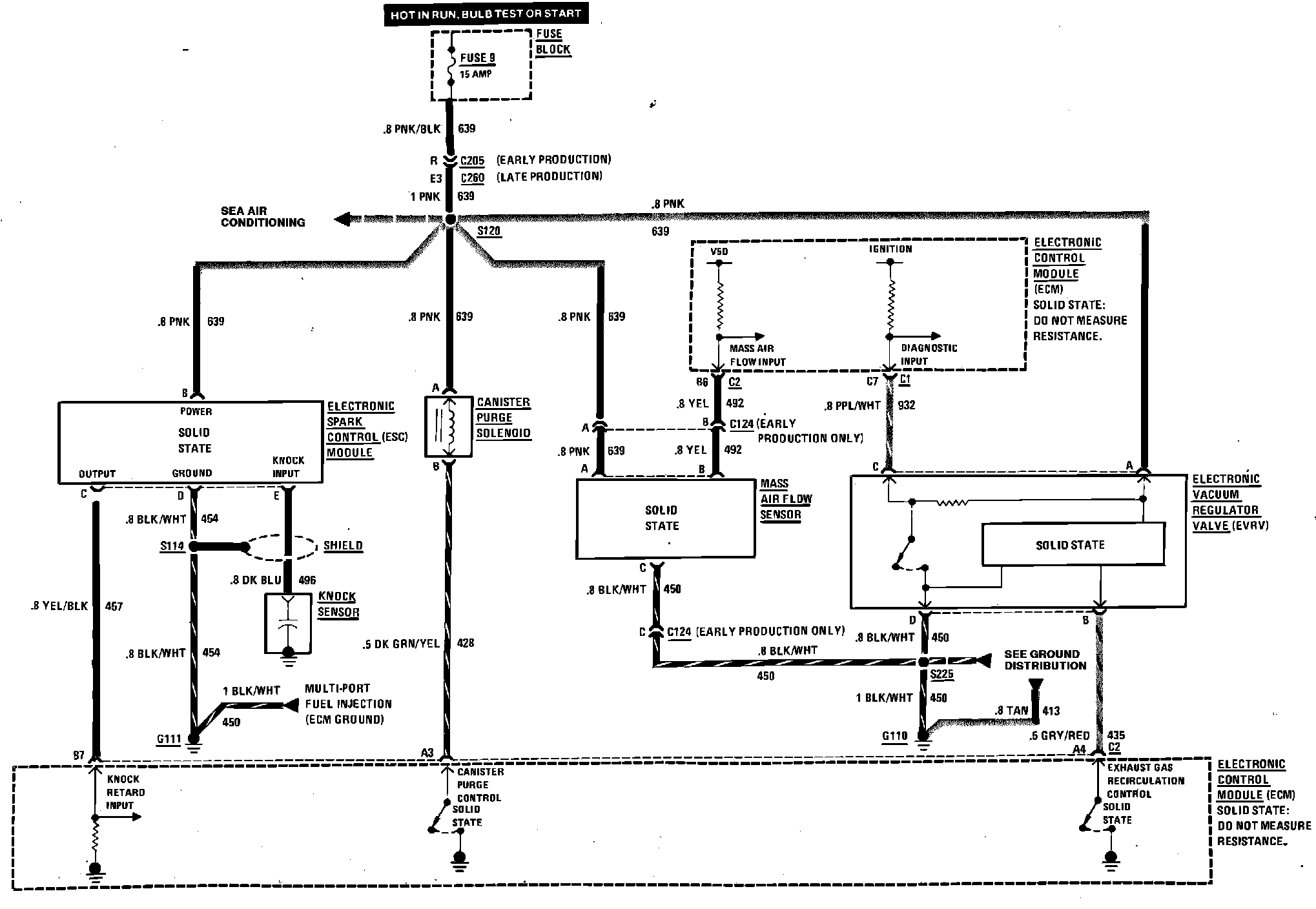

Multiport Fuel Injection (Air Flow Sensor, Emission Control & Spart Control) Wiring Circuit, 98:
