Engine Data Sensors, Fuel Injectors & Torque Converter Clutch

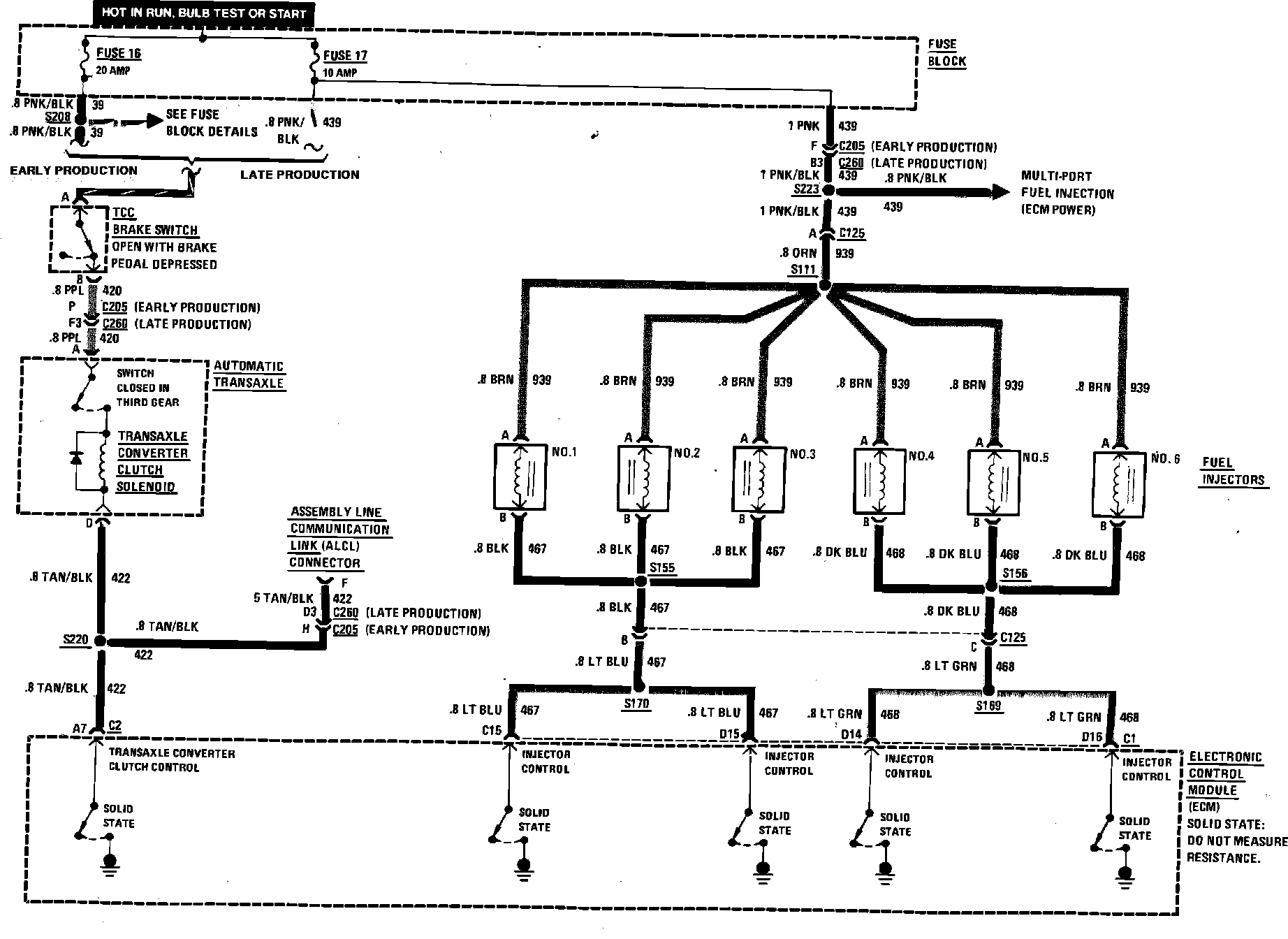

Multiport Fuel Injection (Engine Data Sensors, Fuel Injectors & Torque Converter Clutch) Wiring Circuit, 98:



Multiport Fuel Injection (Engine Data Sensors, Fuel Injectors & Torque Converter Clutch) Wiring Circuit:
