Ignition Controls

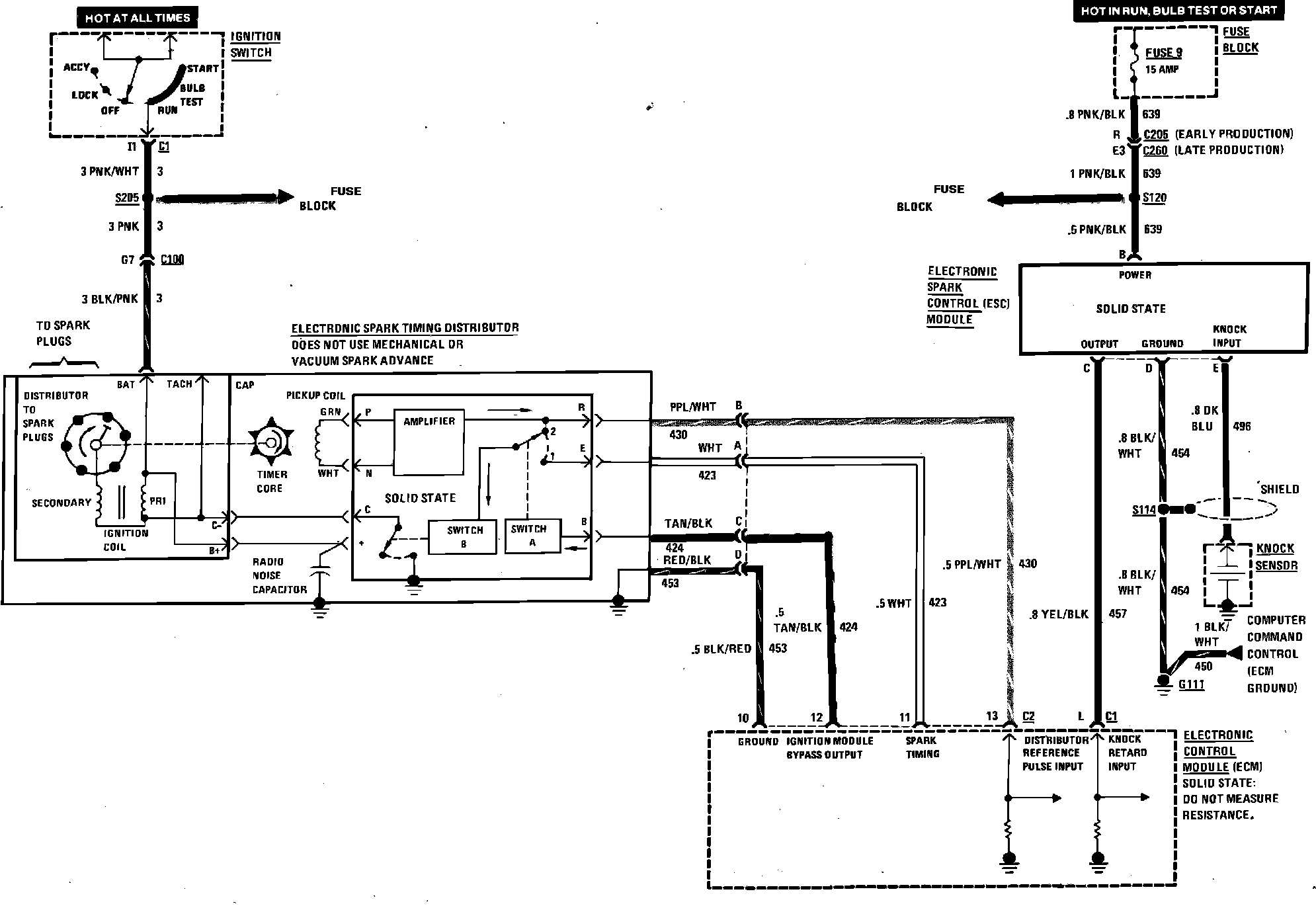

Computer Command Control (Ignition) Wiring Circuit, 98:



Multiport Fuel Injection (Ignition) Wiring Circuit, 98:
