Emission Control Systems: Locations

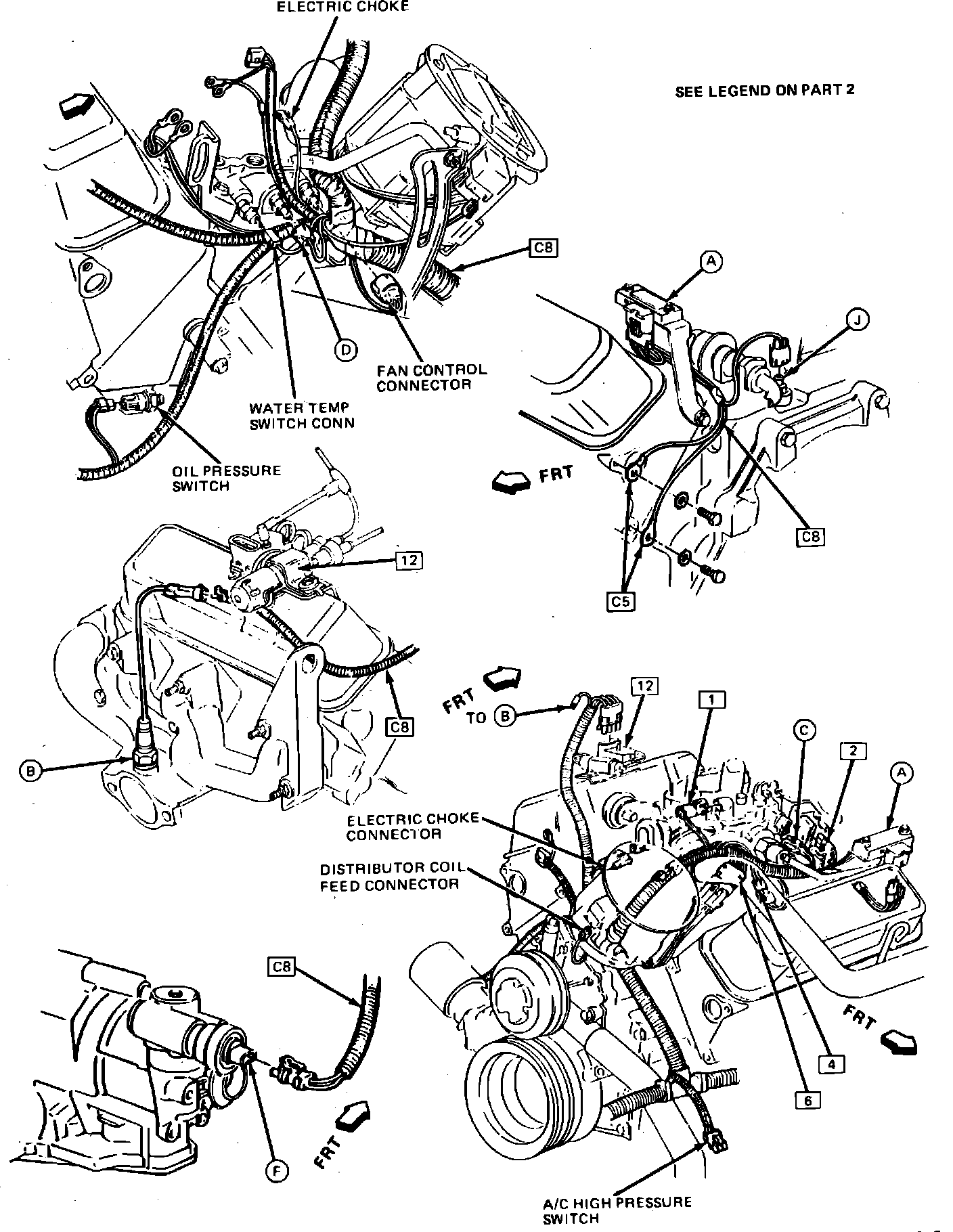

Fig. 24a Emission Component Location. 1985 98 Regency W/V6-183/3.0L, 2 Bbl. (Part 1 of 2):

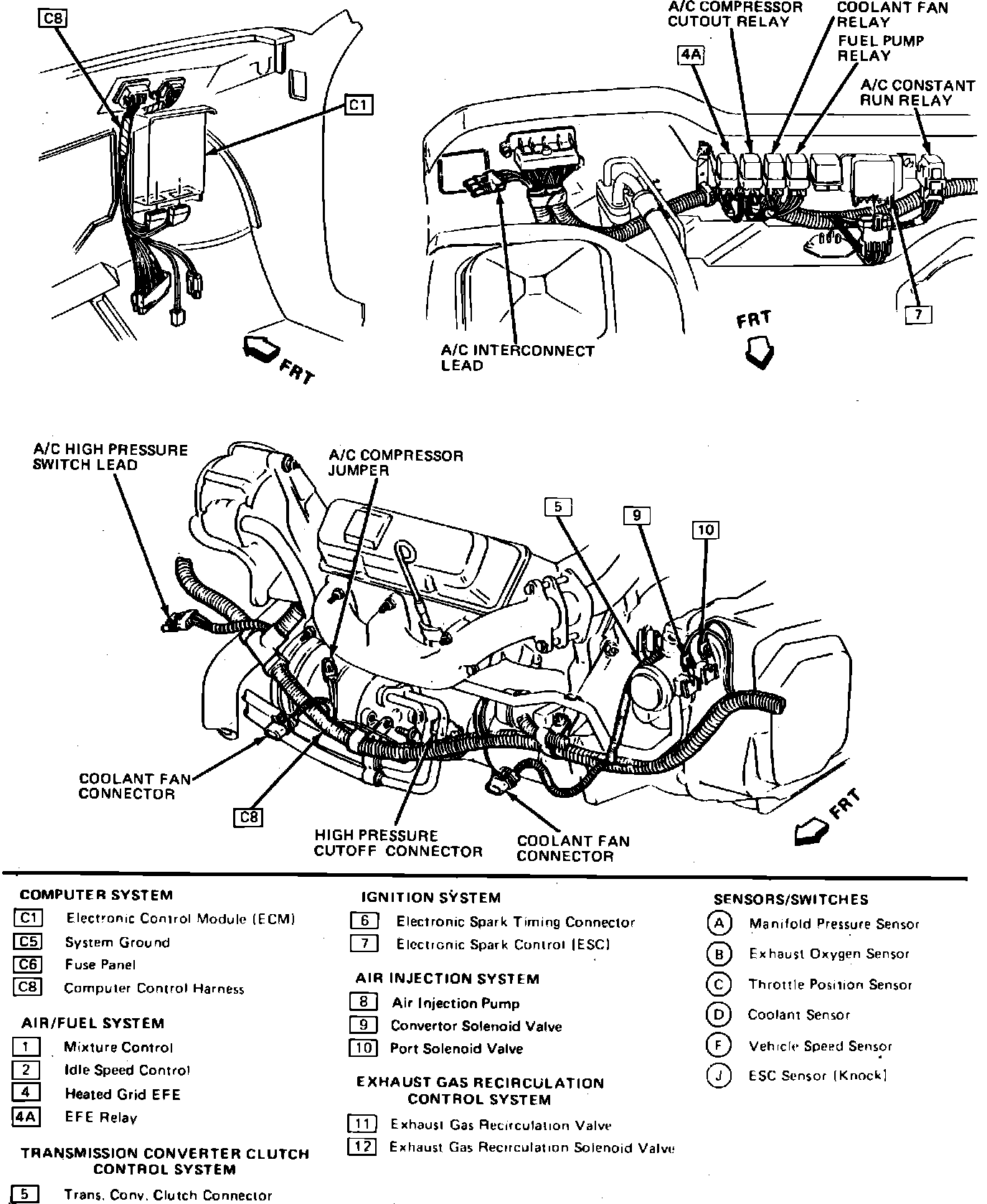

Fig. 24b Emission Component Location. 1985 98 Regency W/V6-183/3.0L, 2 Bbl. (Part 2 of 2):
