Starting and Charging


BATTERY SPECIFICATIONS

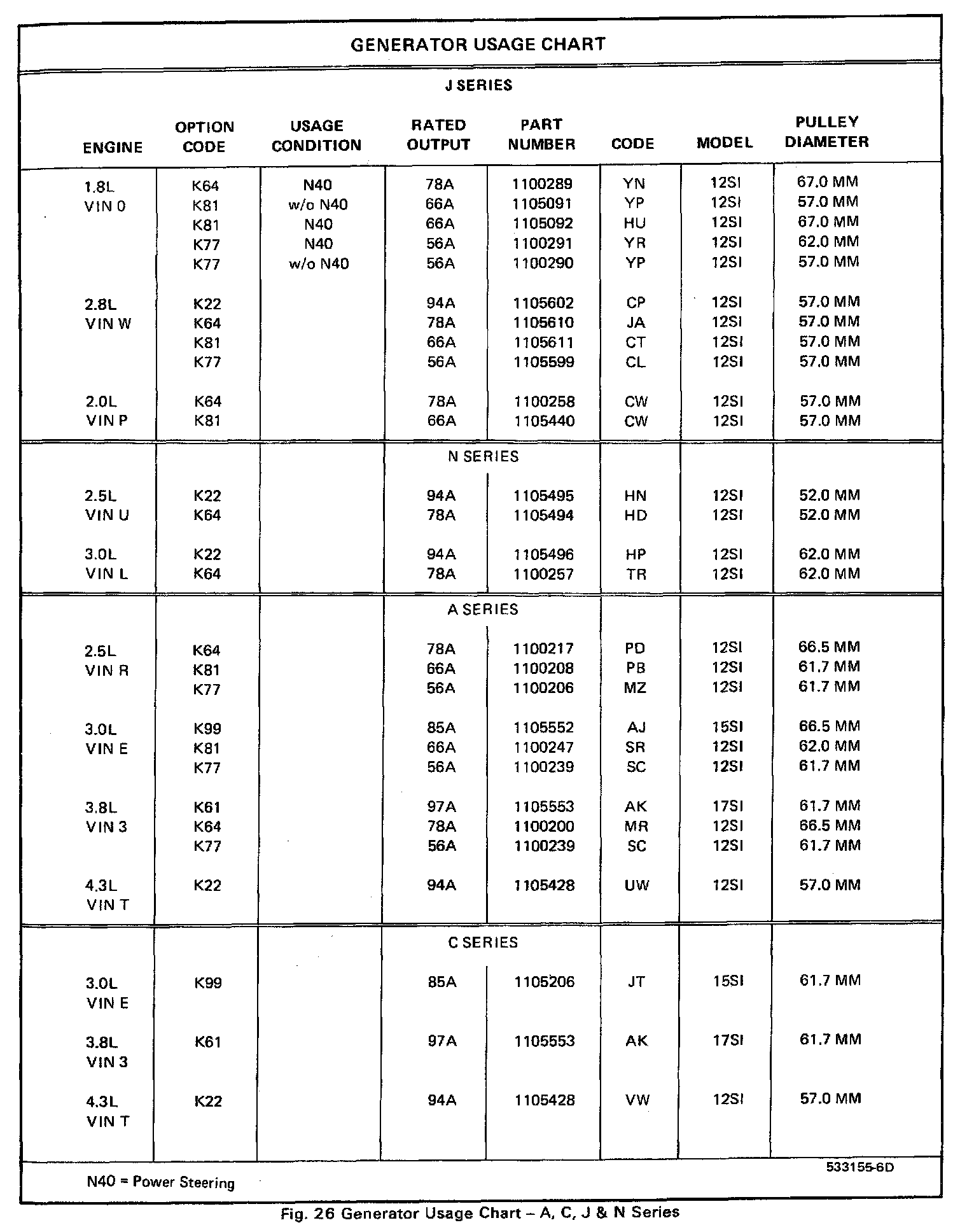

ALTERNATOR SPECIFICATIONS

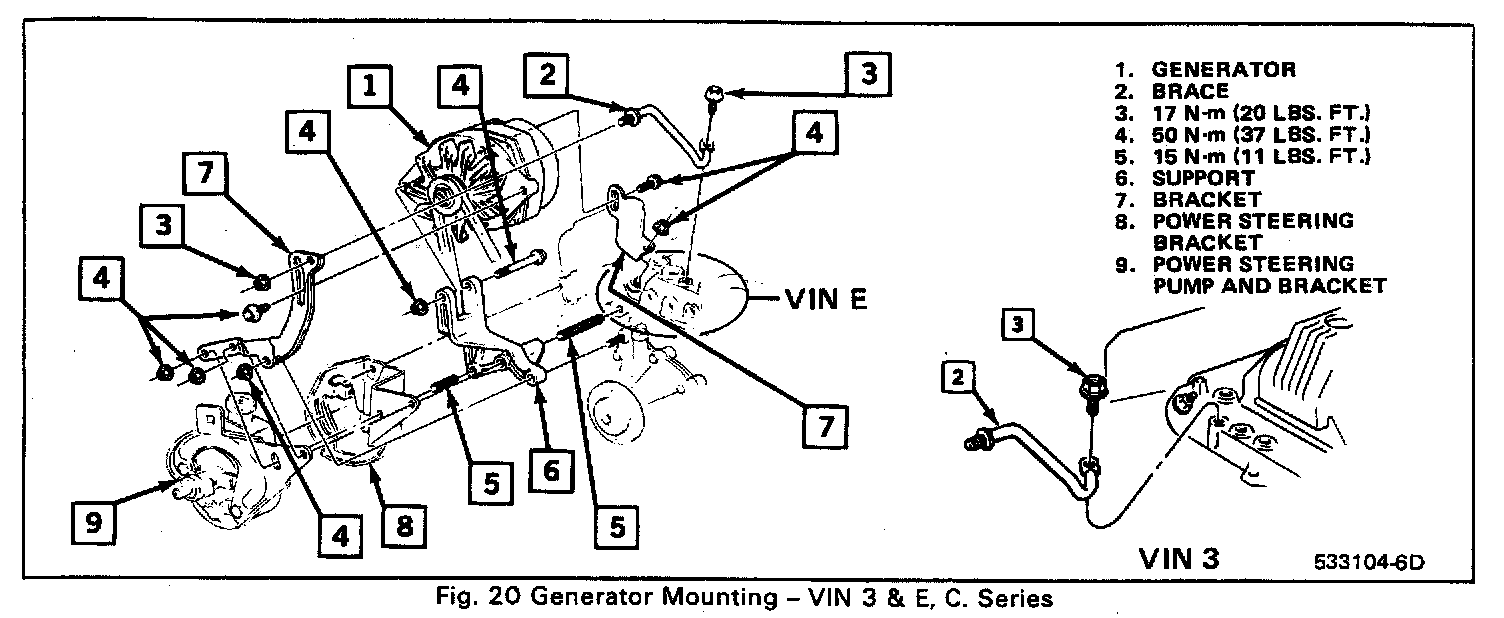

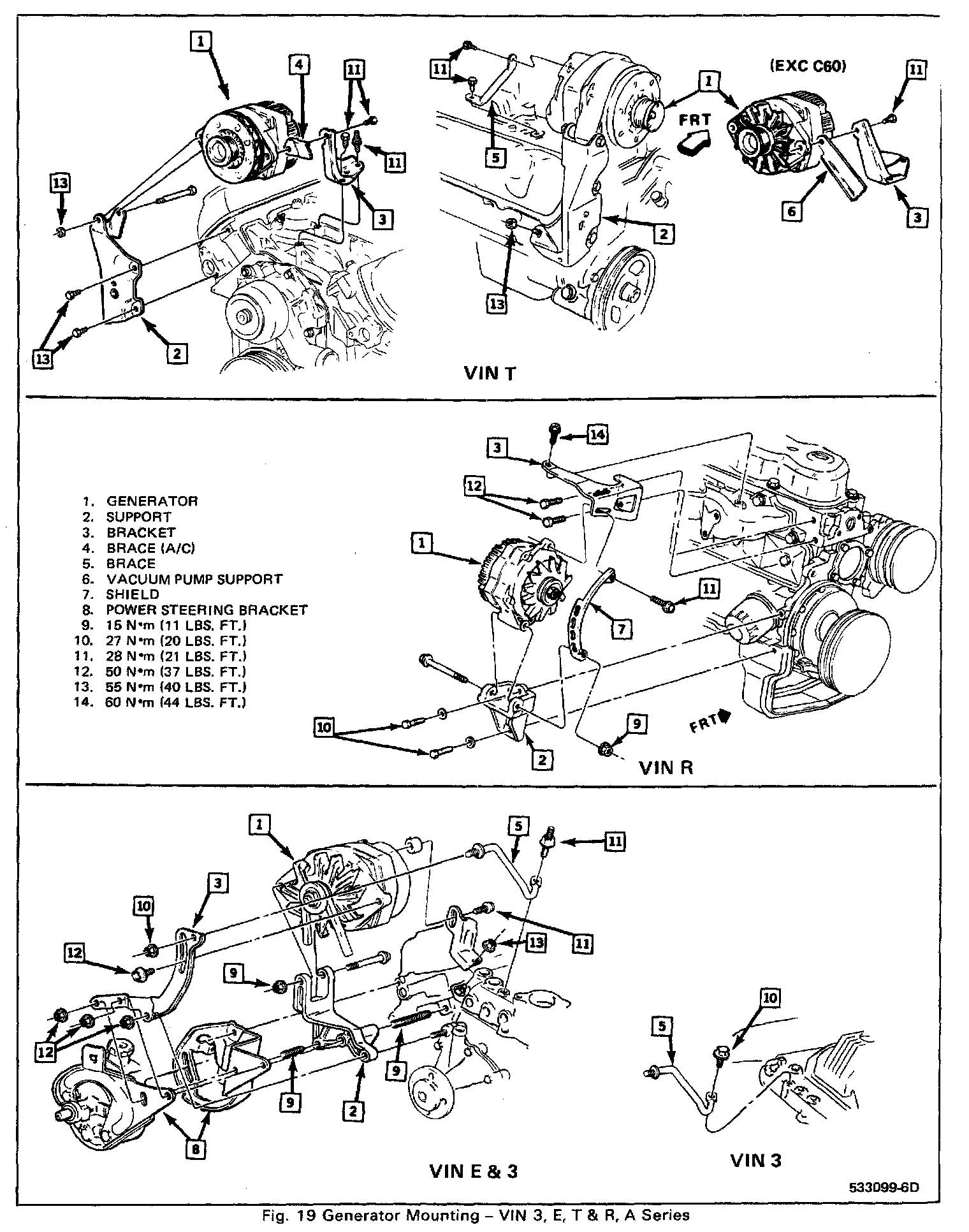

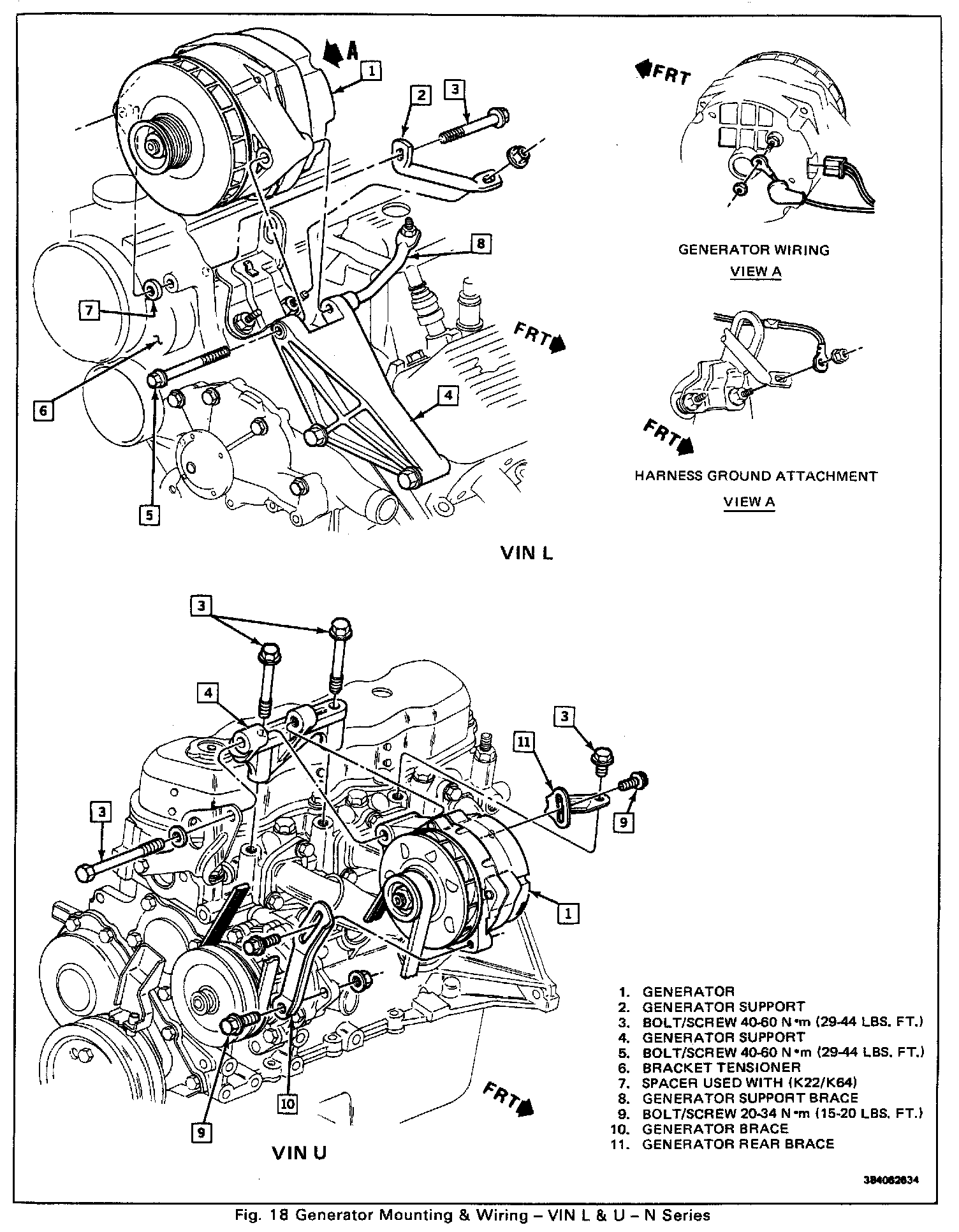

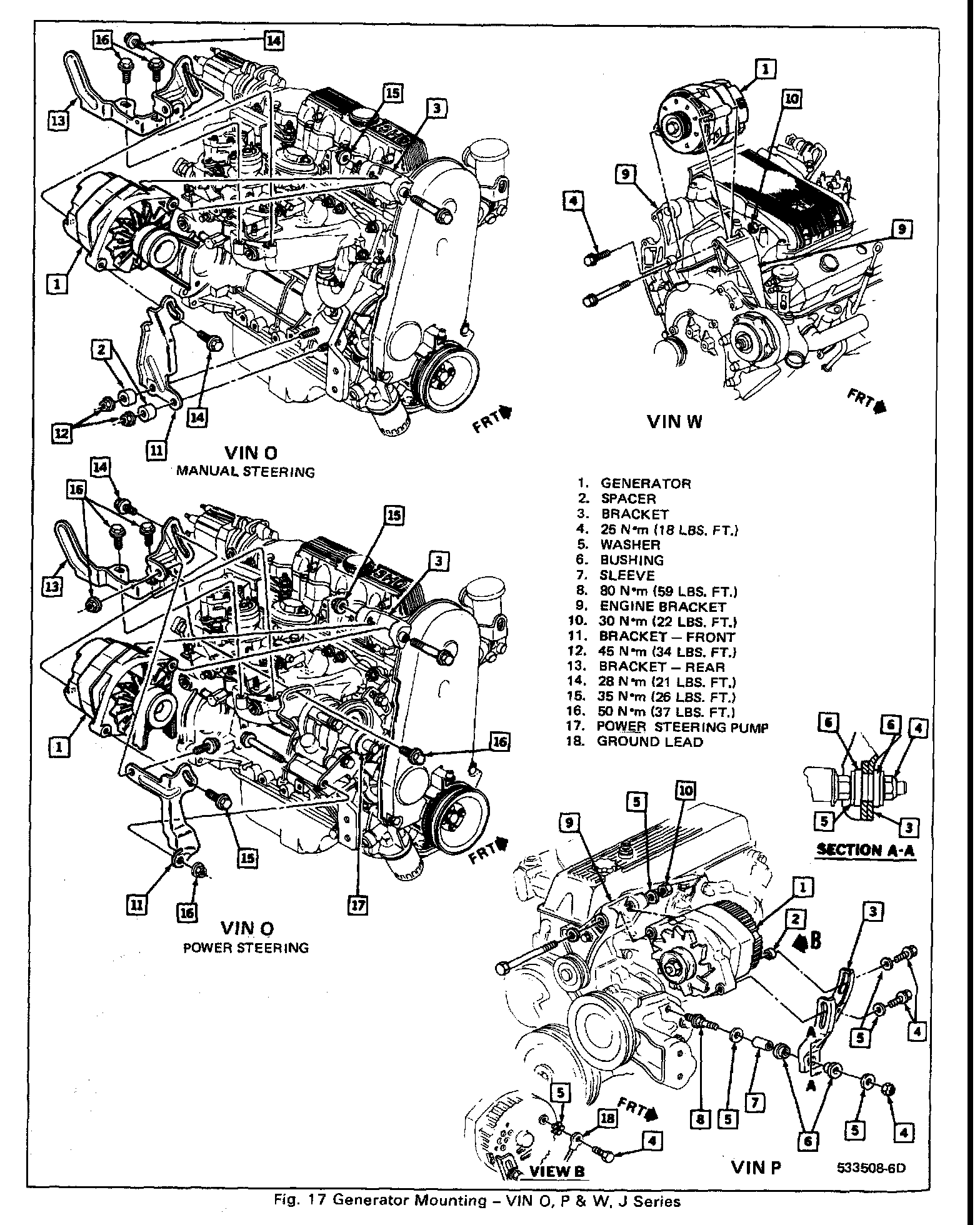

ALTERNATOR TORQUE SPECIFICATIONS

I Of V:





II Of V:





III Of V:





IV Of V:





V Of V:





STARTER SPECIFICATIONS

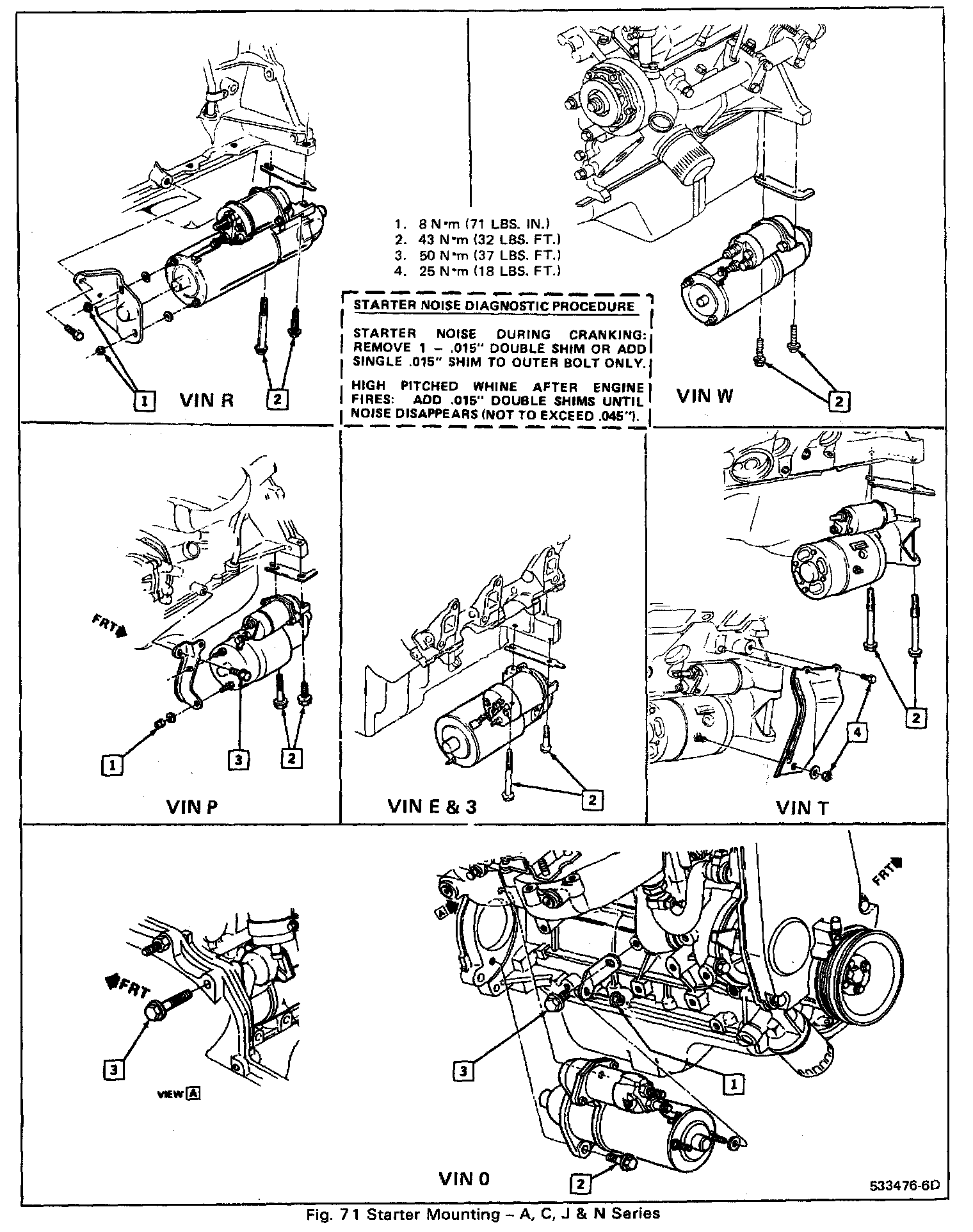

STARTER TORQUE SPECIFICATIONS

I Of II:





II Of II:
