Coolant Fan High Speed Relay

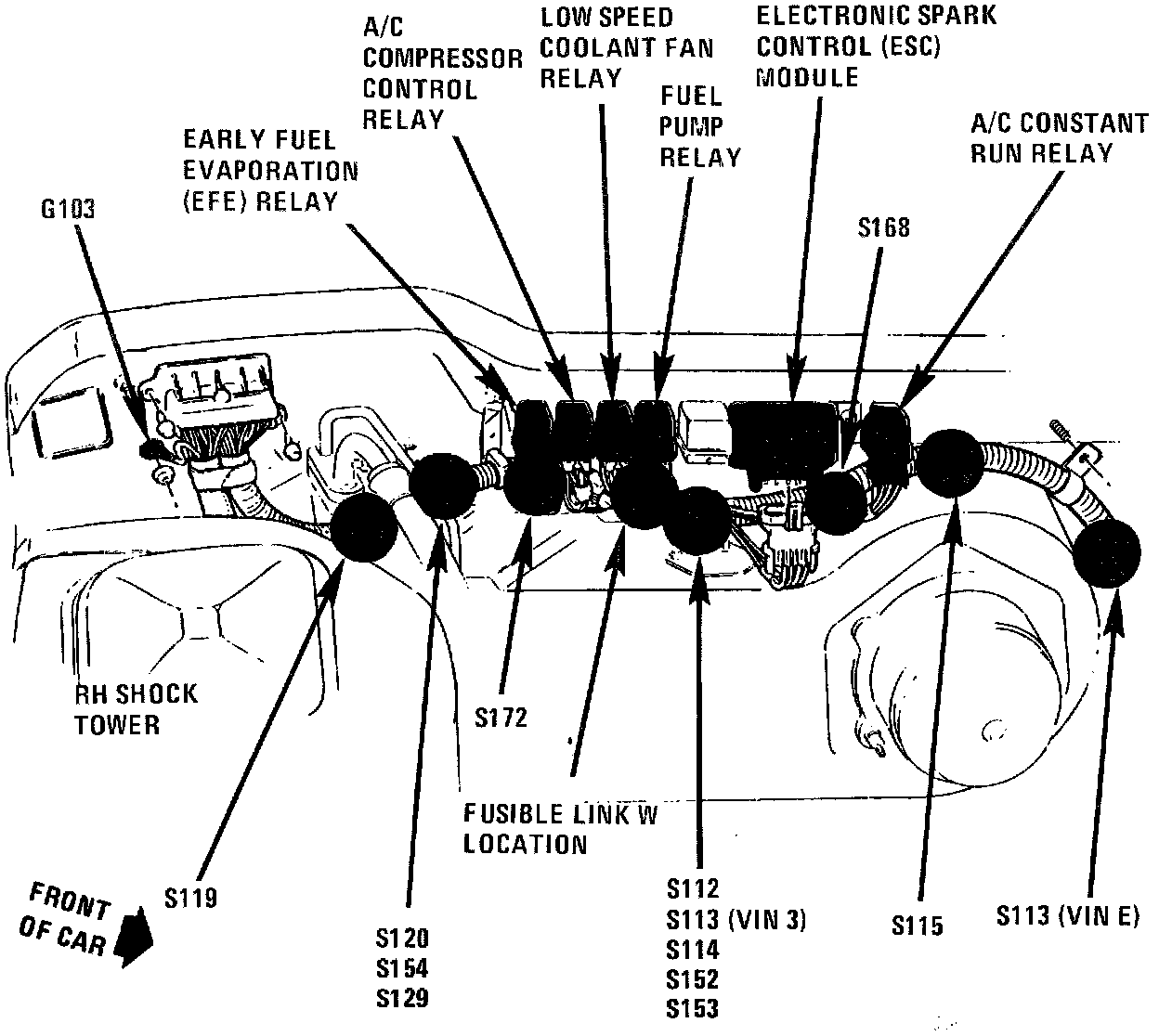

High Speed Cooling Fan Relay:







Engine compartment, behind LH shock tower.
