With Automatic A/C, Late Production (Part 1 of 2)

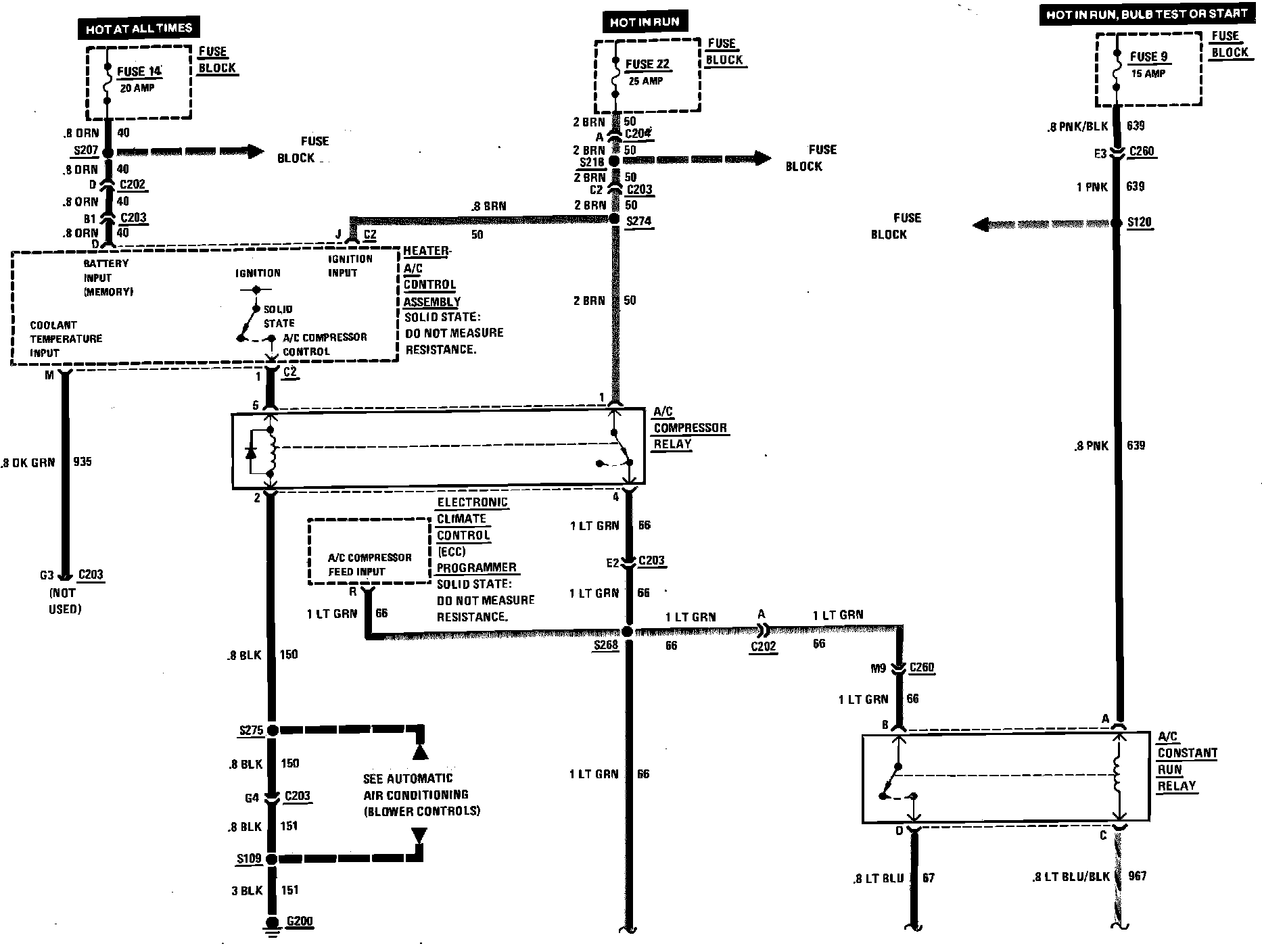

Air Conditioning Compressor Wiring Circuit, 98, With Automatic A/C, Late Production:
