Fuel Control

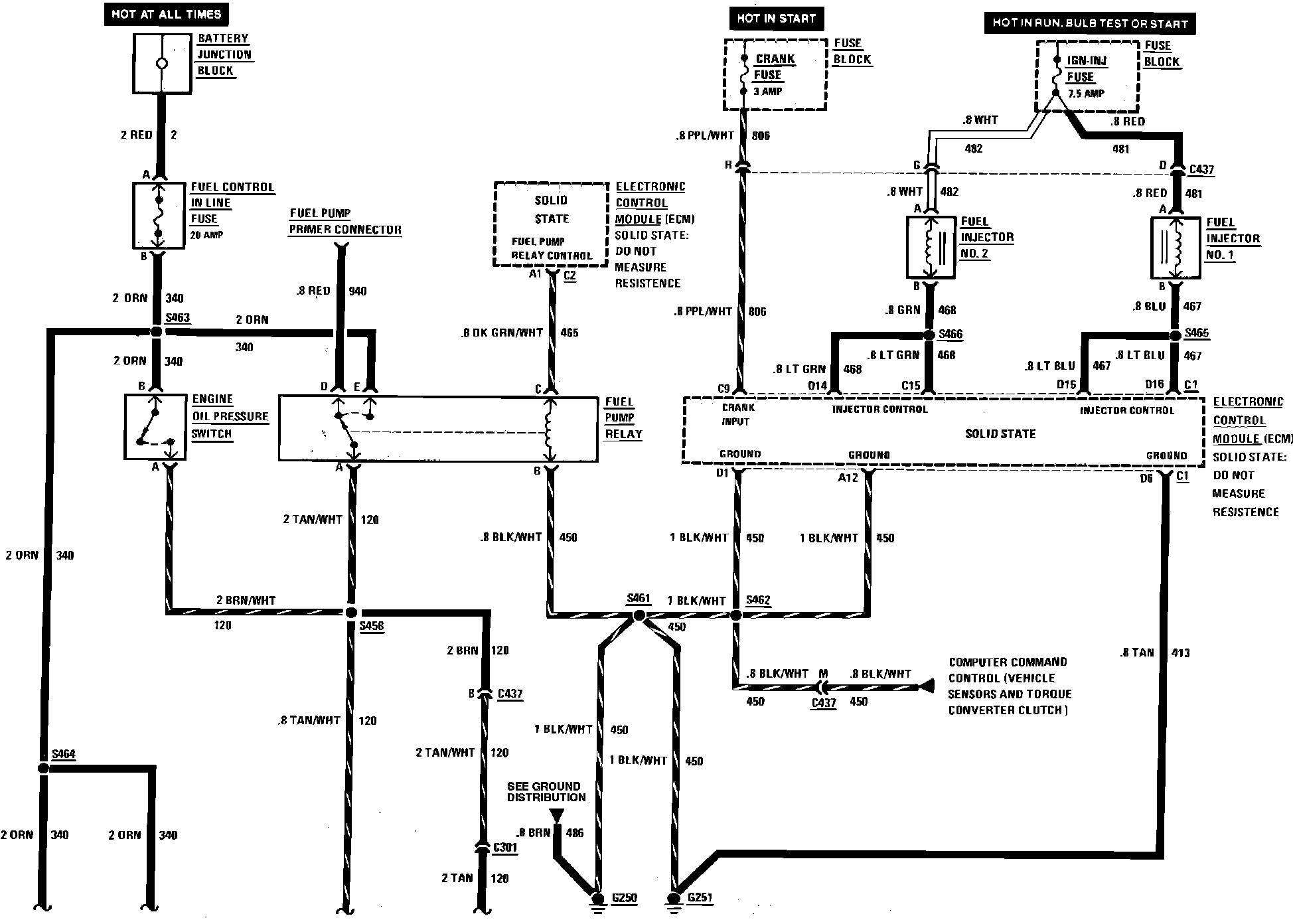

Computer Command Control (Fuel Control) Wiring Circuit:



Computer Command Control (Fuel Control) Wiring Circuit:
