Brake Warning Indicator
>>
Less Alarm or Voice Information System
Less Alarm or Voice Information System

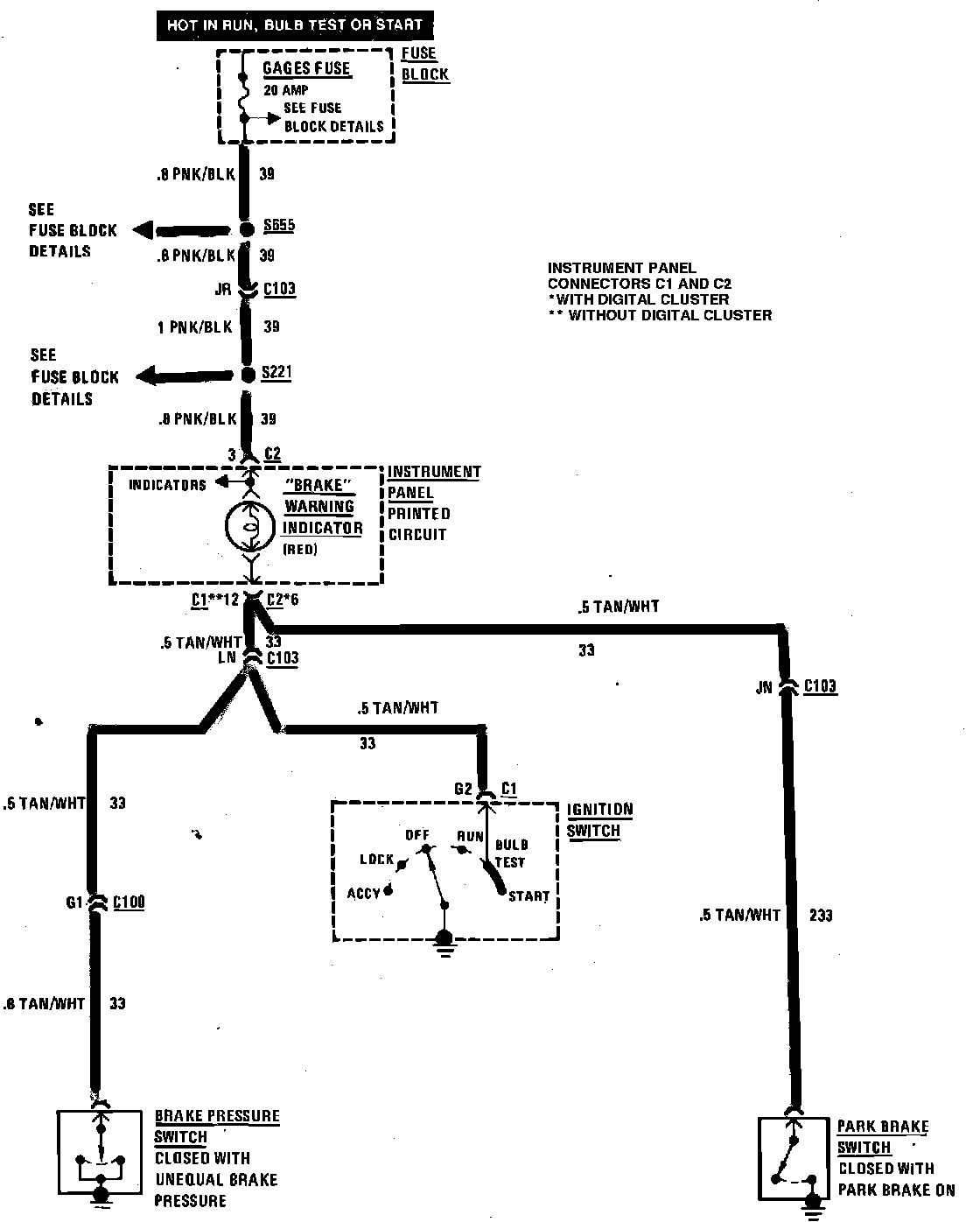

Brake Warning System Wiring Circuit (Less Alarm Or Voice Information System):
