Brake Warning Indicator
>>
With Alarm or Voice Information System
With Alarm or Voice Information System

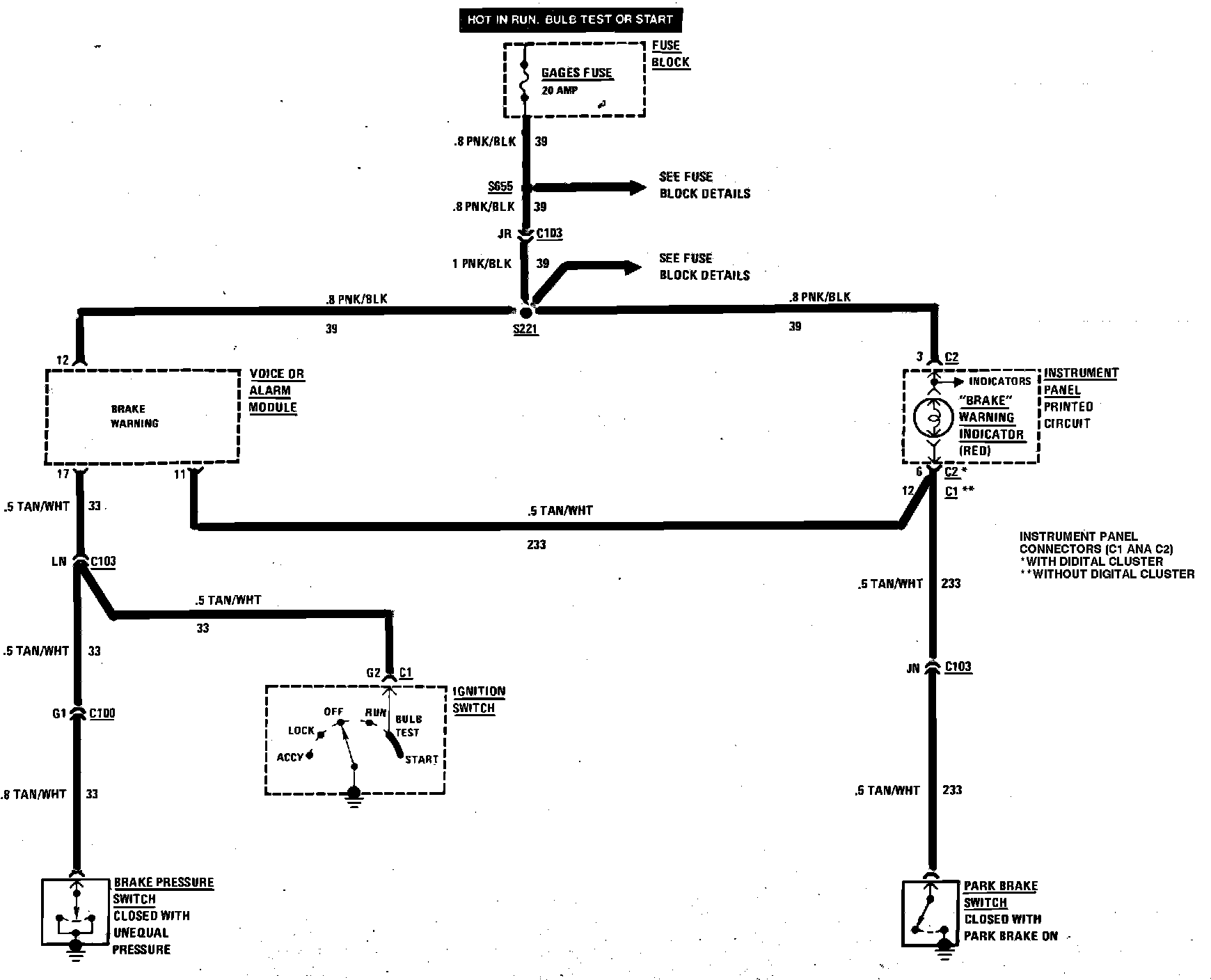

Brake Warning System Wiring Circuit (With Alarm Or Voice Information System):
